12.2 Parameterising digital modules
12.2.1 Parameter data
Via the parameter data of the digital modules can be defined, how to transmit the
control signals: with original polarity or inverse polarity.
1 byte(8x module)or 2 bytes (16x modules)areavailable forparameter data, which
are assigned via SDOs.
z Digital inputs are parameterised via the index I6002
h
.
z Digital outputs are parameterised via the index I6202
h
.
The subindex depends on the plug-in station (max. 32 digital modules).
epm-t174

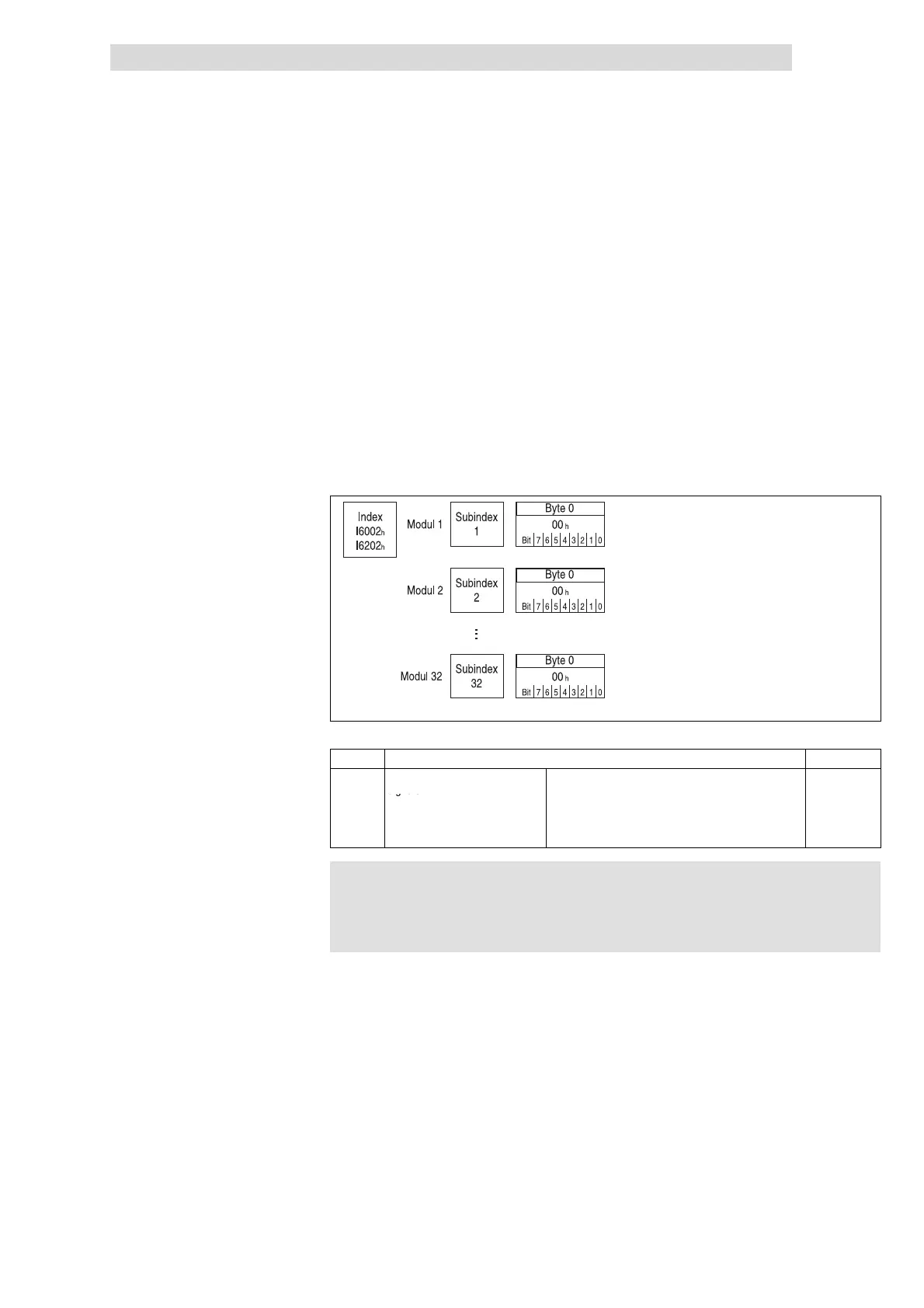

Fig. 12.2-1 Display of the parameter data ”digital module”
Byte
Assignment Lenze setting
0 Polarity of the transmitted
signals
Bit 0
0 Signal is transmitted in original
form
00
h
s
i
g
n
a
l
s
1 Signal is transmitted in inverse
form
Bits 1 ... 7 Reserve


 Note!
Store changed parameters in the EEPROM via index I2003
h
.The
settings are maintained after switching off the supply voltage.
8xdigital input
8xdigital output
8xdigital input / output
16xdigital input
16xdigital output
