Parameterising 2/4xcounter module
2 x 32 bit counter (mode 0)
12
Parameter setting
12.4
12.4.3
l
12.4-7
EDSPM-TXXX-3.0-04/2004
epm-t065

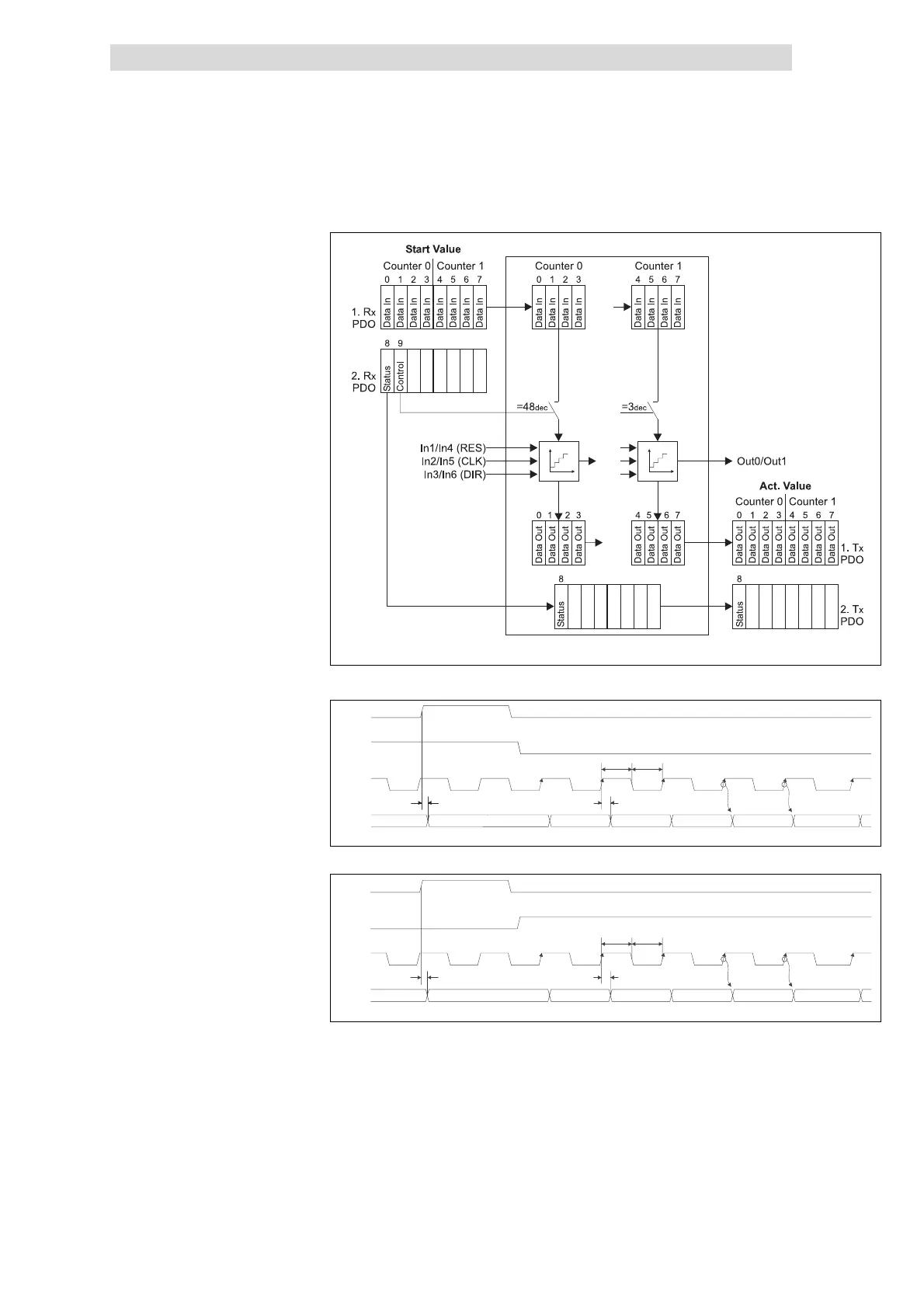

Fig. 12.4-5 Counter access of the 2/4xcounter in the mode 0
Tt0H Tt0L
TclH2dTreH2d
xxxx xxxx
0000 0000 0000 0001 0000 0002 0000 0003 0000 0004 0000 0005
RES
DIR
CLK
Counter
epm-t067
Fig. 12.4-6 Signal characteristic of 2/4xcounter in the mode 0 (upcounter)
RES
DIR
CLK
Counter
Tt0H Tt0L
TclH2dTreH2d
xxxx xxxx
0000 0000
FFFF FFFF FFFF FFFE FFFF FFFD
FFFF FFFC
FFFF FFFB
epm-t066
Fig. 12.4-7 Signal characteristic of 2/4xcounter in the mode 0 (downcounter)
Counter access
Signal characteristic
