16×dig. I/O compact (single-wire conductor)
6
The compact system
6.3
l
6.3-1
EDSPM-TXXX-3.0-04/2004
6.3 16×dig. I/O compact (single-wire conductor)
The 16×dig. I/O compact (single-wire conductor) module consists of 1 CAN
gateway which serves as the interface to the master bus system as well as 8 digital
inputs, 4 digital inputs/outputs (optionally configurable) and 4 digital outputs.
Each output can be loaded with up to 1 A. The status of the channels is displayed
by LEDs.
z
8 digital inputs
z
4 optionally configurable digital inputs/outputs
z
4 digital outputs
z
Voltage supply via an external 24 V DC voltage source
z
Connection to the system bus (CAN) via a 9-pole Sub-D plug
z
Address and baud rate setting via coding switch
z
The baud rate is stored permanently in an EEPROM in the module
z
LEDs display the status
01
1
2
3
0
4 56
epm-t050

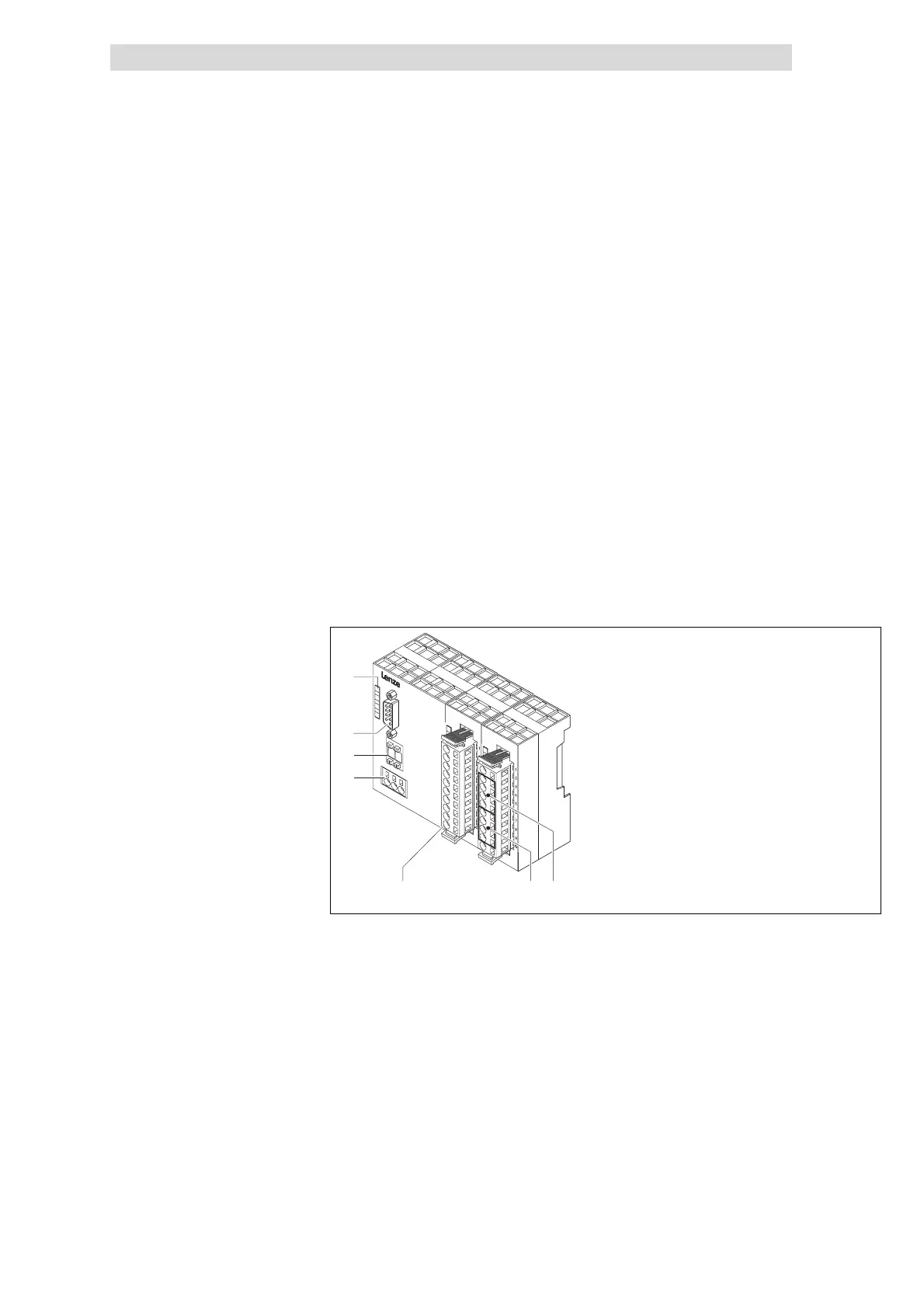

Fig. 6.3-1 16×dig. I/O compact (single-wire conductor)
LEDs for status display
9-pole Sub-D plug for connection to the system bus (CAN)
Coding switch to set address and baud rate
External voltage supply connection
Terminal strip for digital input signals
Terminal strip for digital output signals
Terminal strip for digital input / output signals (optionally configurable)
