8×dig. I/O compact
6
The compact system
6.2
l
6.2-1
EDSPM-TXXX-3.0-04/2004
6.2 8×dig. I/O compact
The 8×dig. I/O compact module consists of a CAN gateway which serves as an
interface to the master bus system as well as eight digital inputs/outputs
(optionally configurable) and two terminal strips.
The channels can be optionally used as digital inputs or outputs. Each output can
be loaded with up to 1 A. The status of the channels is displayed by the LEDs.
z
8 digital inputs or outputs, optionally configurable
z
Voltage supply via an external 24 V DC voltage source
z
Connection to the system bus (CAN) via a 9-pole Sub-D plug
z
Address and baud rate setting via coding switch
z
The baud rate is stored permanently in an EEPROM in the module
z
LEDs display the status
01
1
2
3
54
0
epm-t040

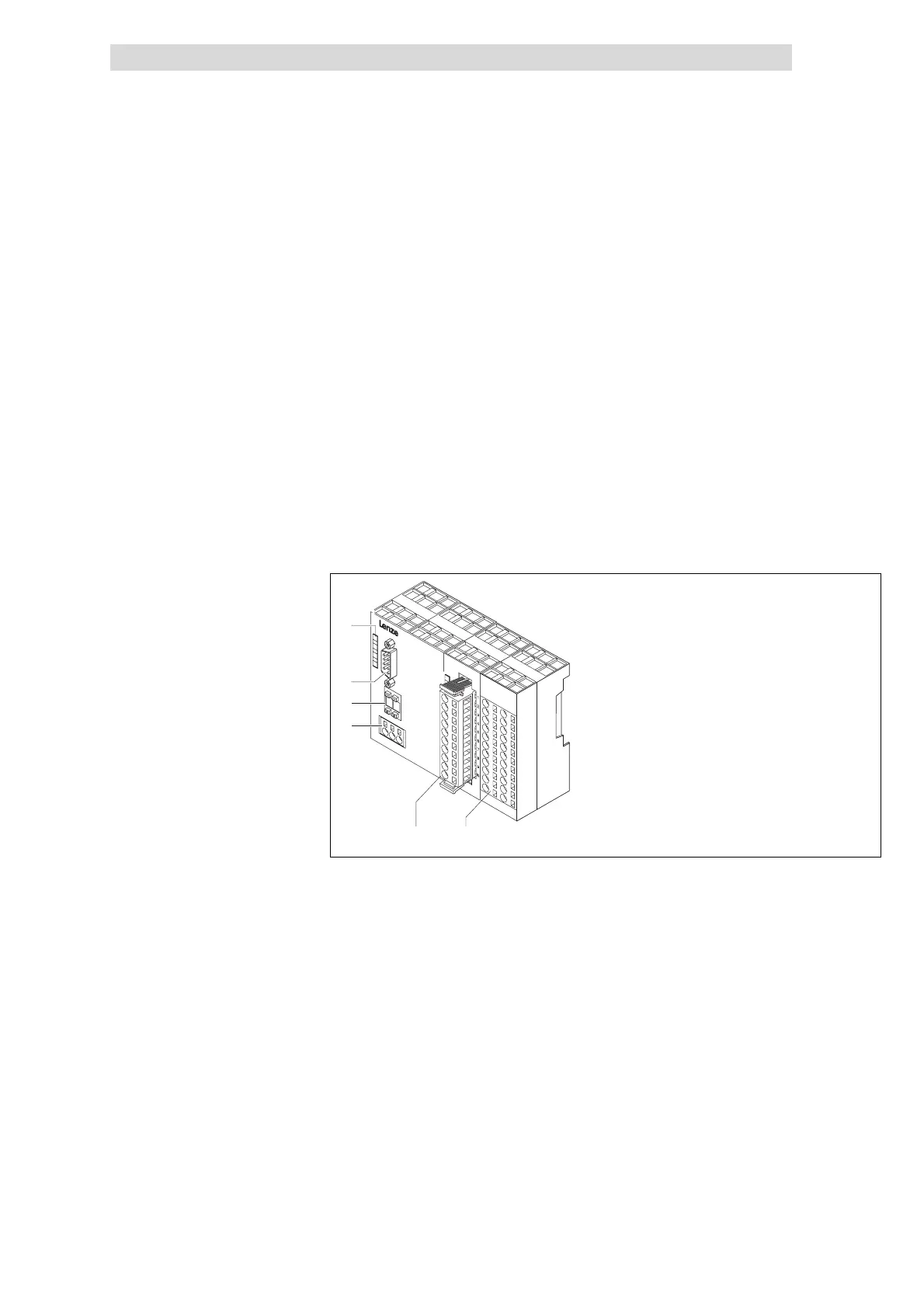

Fig. 6.2-1 8×dig. I/O compact
LEDs for status display
9-pole Sub-D plug for connection to the system bus (CAN)
Coding switch to set address and baud rate
External voltage supply connection
Terminal strip for digital input/output signals
Terminal strips, additional terminals for wiring
Description
Features
Overview
