Lenze EPM-T110 User Manual

Parameterising 2/4xcounter module
Encoder with GATE (modes 36 ... 38)
12
Parameter setting
12.4
12.4.19
l
12.4-55
EDSPM-TXXX-3.0-04/2004
The counter is incremented by 1 on
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a HIGH-LOW edge (track A) at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
epm-t168

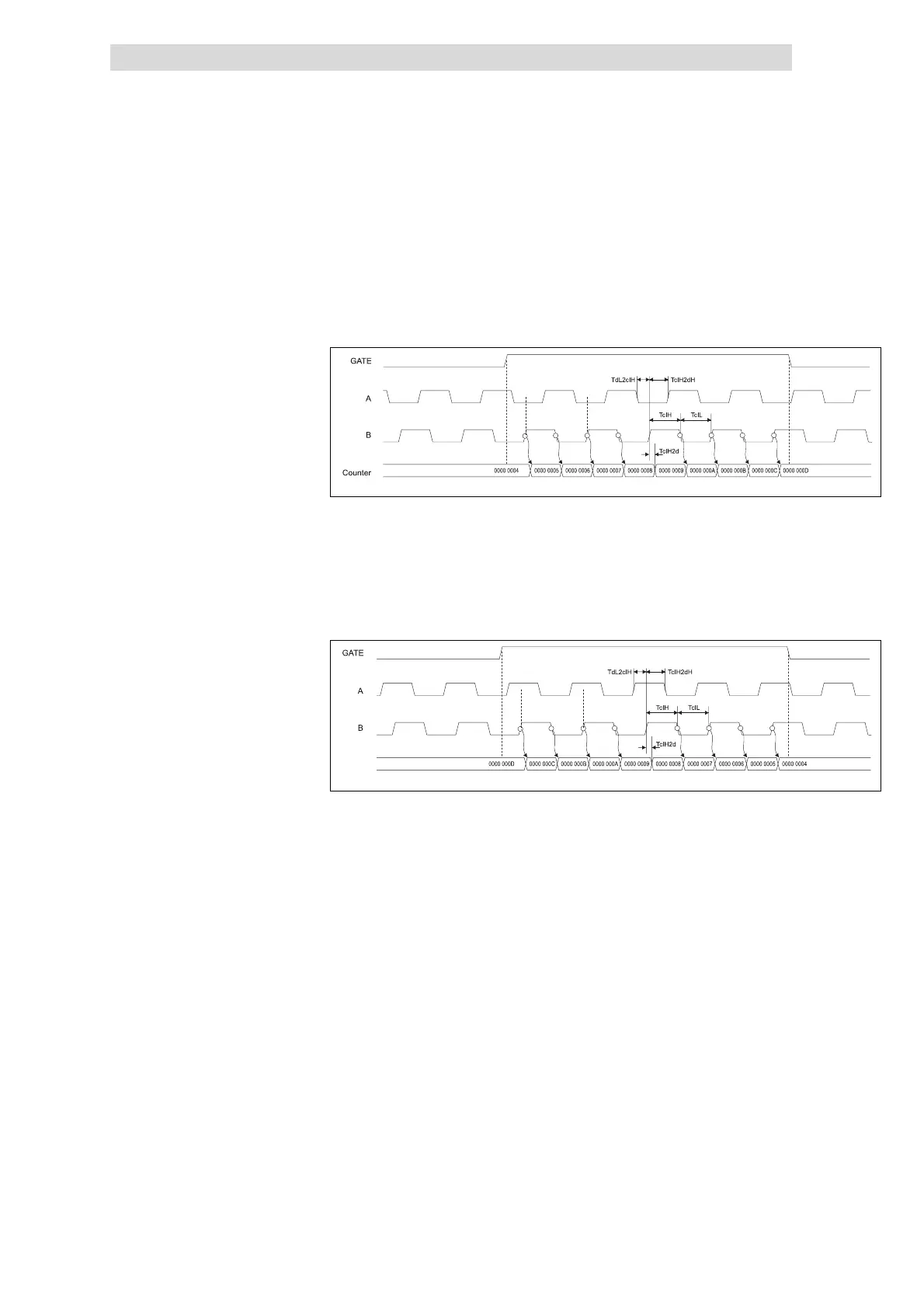

Fig. 12.4-76 Signal characteristic of 2/4xcounter in the mode 37 (upcounter)
The counter is decremented by 1 on
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
epm-t169
Fig. 12.4-77 Signal characteristic of 2/4xcounter in the mode 37 (downcounter)
Signal characteristic in mode 37
