Parameterising analog modules
Parameter data
12
Parameter setting
12.3
12.3.1
l
12.3-1
EDSPM-TXXX-3.0-04/2004
12.3 Parameterising analog modules
12.3.1 Parameter data
Stop!
The modules are not protected against a wrong parameter setting
by the hardware. If you, for instance, apply a voltage during a
project current metering, the module can be destroyed!
Note!
Store changed parameters in the EEPROM via index I2003
h
.The
settings are maintained after switching off the supply voltage.
Via the parameter data of the 4xanalog input module you can define the following:
z
The signal function for each input (current measurement, voltage
measurement, temperature measurement etc.)
z
The module error behaviour
z
The conversion speed
For the 4xanalog input 10 bytes of parameter data are available, which are
assigned via SDOs.
Depending on the plug-in station, the module is activated via the indices
I3001
h
... I3010
h
(max. 16 analog modules). The parameter data are assigned in
the subindex 1 ... 3.
epm-t059

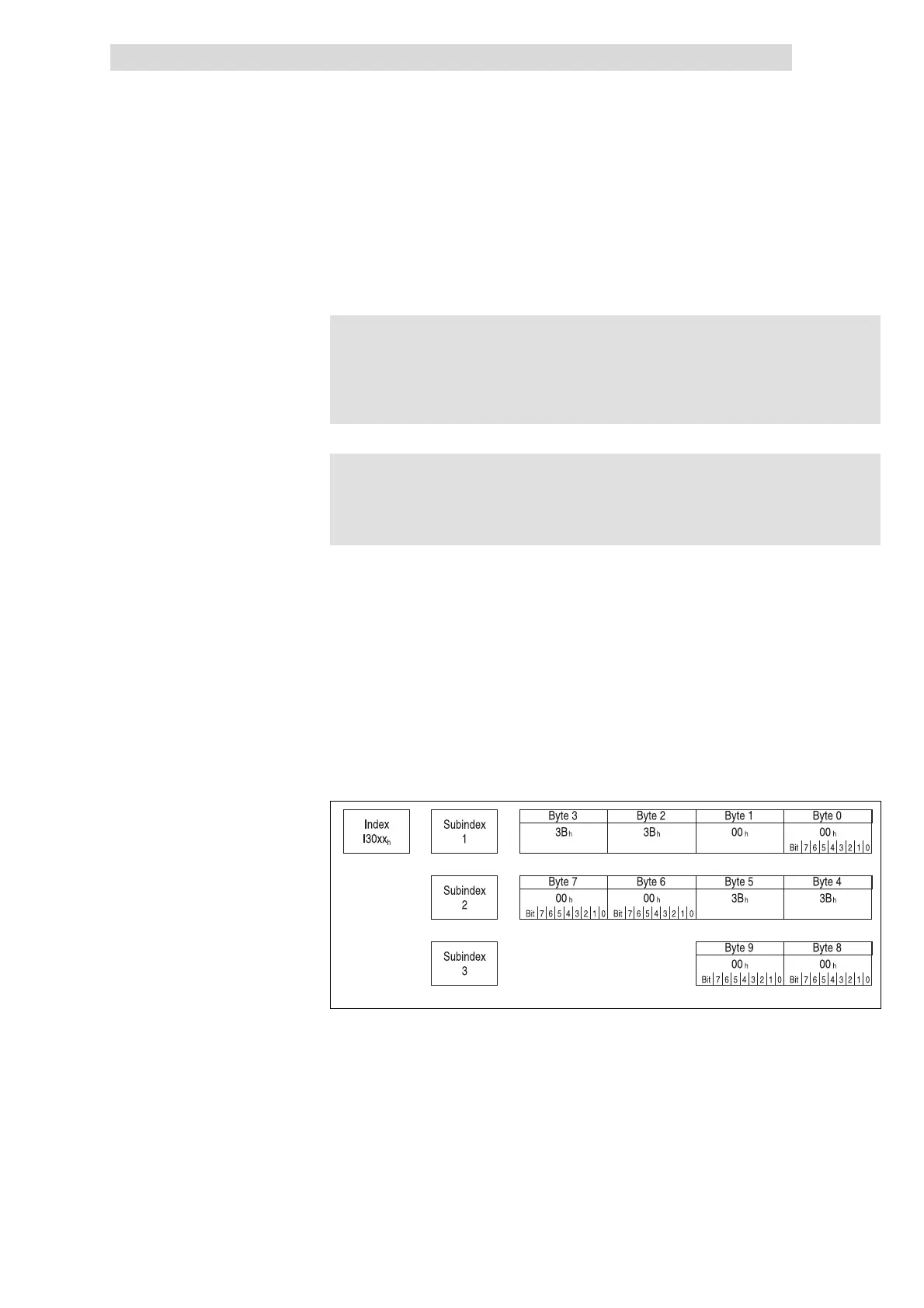

Fig. 12.3-1 Display of the parameter data 4xanalog input
4xanalog input
