4×relay
5
The modular system
5.8
l
5.8-1
EDSPM-TXXX-3.0-04/2004
5.8 4×relay
The module 4×relay detects the binary control signals from the master bus system
and transports them to the process level via the outputs. The module has four
relays with a switch each (NO contact).
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
Four isolated relay outputs
z
Up to 230 V AC or up to 30 V DC contact voltage
z
Max. 5 A contact current
z
Suitable for motors, lamps, solenoid valves and DC contactors
z
LED displays the switching states
0
1
2
epm-t015

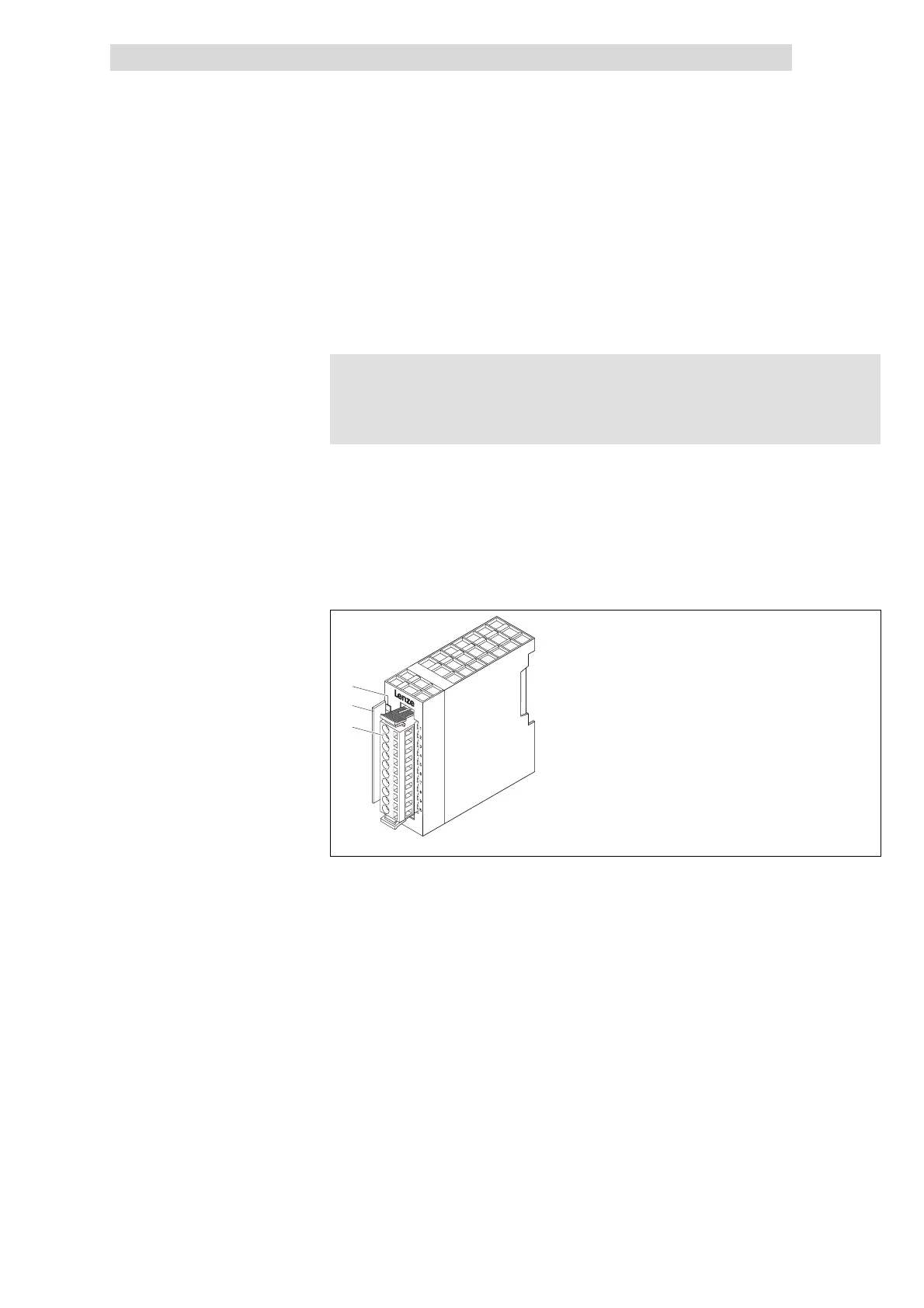

Fig. 5.8-1 Overview of 4×relay
LED for status display
Bit address label card
Plug-in terminal strip
Description
Features
Overview
