4×analog input
5
The modular system
5.10
l
5.10-1
EDSPM-TXXX-3.0-04/2004
5.10 4×analog input
The module 4×analog input has four analog inputs which can be parameterised
individually. The module assigns a total of eight bytes of input data in the process
image (two bytes per input). The analog inputs are isolated with regard to the
backplane bus.
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
4 analog inputs
z
The inputs can be parameterised individually
z
Any unused inputs can be deactivated
z
The reference potentials (GND) of the analog inputs are electrically
separated from each other
z
The reference potentials may vary from each other by a voltage differential of
up to 5 V
z
Input ranges: Voltage, current, temperature, resistance
z
LED diagnostics display a wire breakage or overcurrent in the current
measuring range
0
1
2
epm-t015

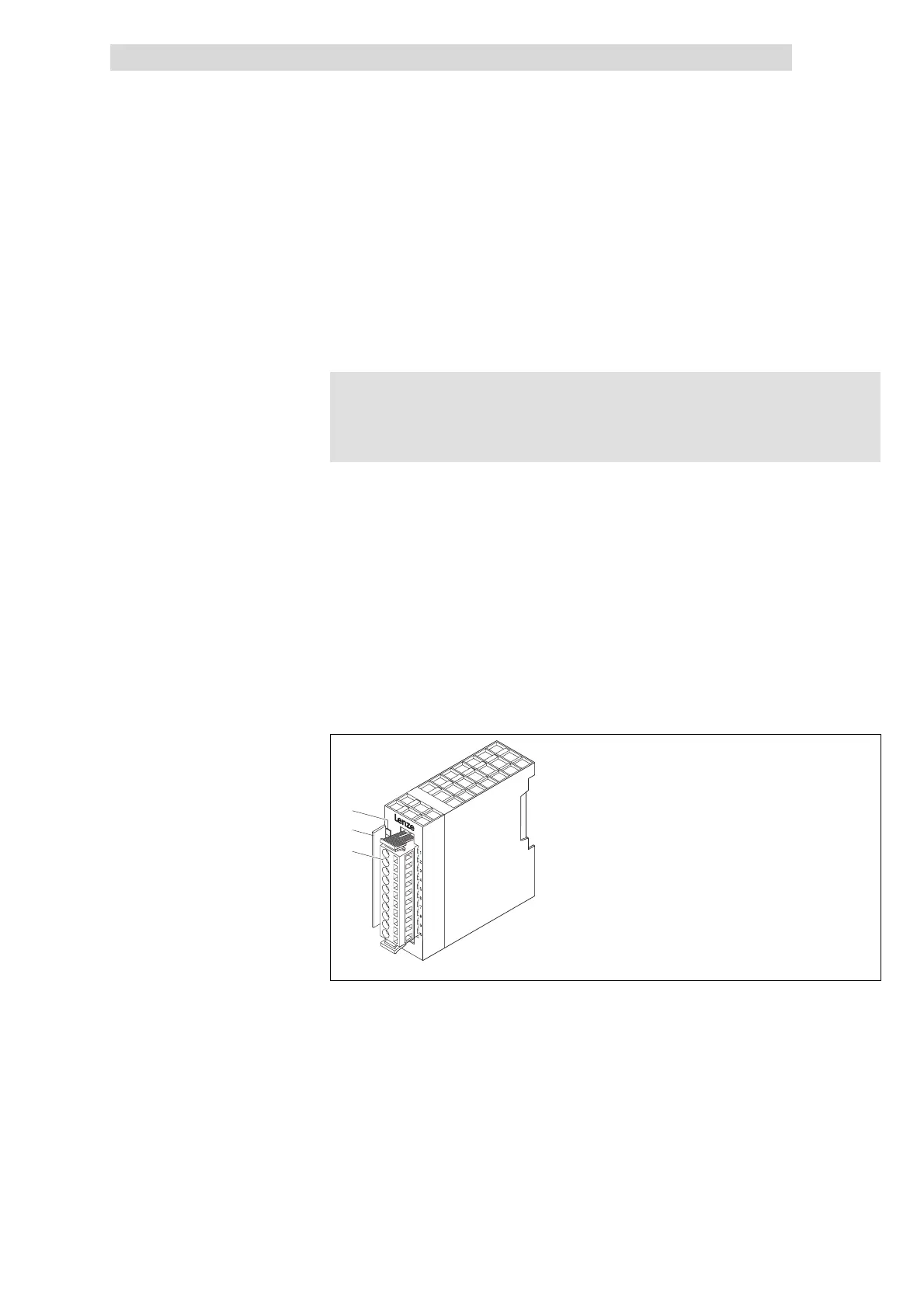

Fig. 5.10-1 Overview of 4×analog input
LED for status display
Bit address label card
Plug-in terminal strip
Description
Features
Overview
