Lenze EPM-T110 User Manual

Parameterising 2/4xcounter module
Encoder (modes 1, 3, and 5)
12
Parameter setting
12.4
12.4.4
l
12.4-11
EDSPM-TXXX-3.0-04/2004
The counter is incremented by 1 on
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a HIGH-LOW edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a HIGH-LOW edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
RES
B
A
Counter
00000000XXXX
TreH2d
TcIH
TdL2cIH TcIH2dH
TcIL
01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12
epm-t073

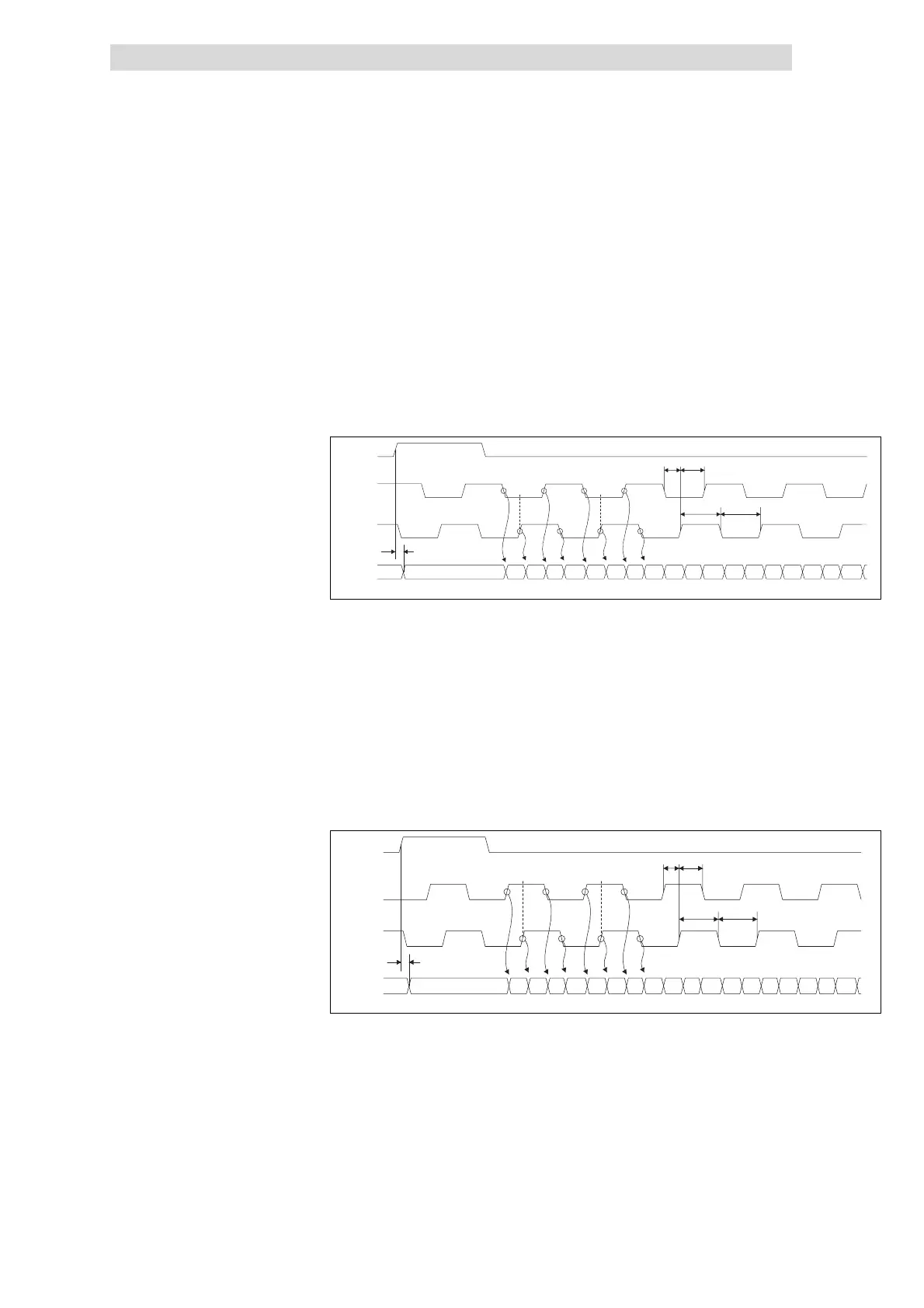

Fig. 12.4-14 Signal characteristic of 2/4xcounter in the mode 5 (upcounter)
The counter is decremented by 1 on
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a LOW level at the input
IN3 / IN6 (B).
z a LOW-HIGH edge at input IN2 / IN5 (A) and a HIGH level at input
IN3 / IN6 (B).
RES
B
A
Counter
00000000 FF FE FD FC FB FA F9 F8F8XXXX
TreH2d
F7 F6 F5 F4
Tcl L
TclH2dHTdL2clH
Tcl H
F3 F2 F1 F0 EF EE
epm-t074
Fig. 12.4-15 Signal characteristic of 2/4xcounter in the mode 5 (downcounter)
Signal characteristic in mode 5
