5.7 8×digital output 2A
The module 8×digital output 2A detects the binary control signals from the master
bus system and transports them to the process level via the outputs. The digital
outputs are supplied via an external voltage source (DC 24 V).
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
8 digital outputs
z
DC 24 V supply voltage
z
Each digital output has a capacity of up to 2 A
z
Suitable for solenoid valves and DC contactors
z
LED displays the states of the digital outputs
0
1
2
epm-t015

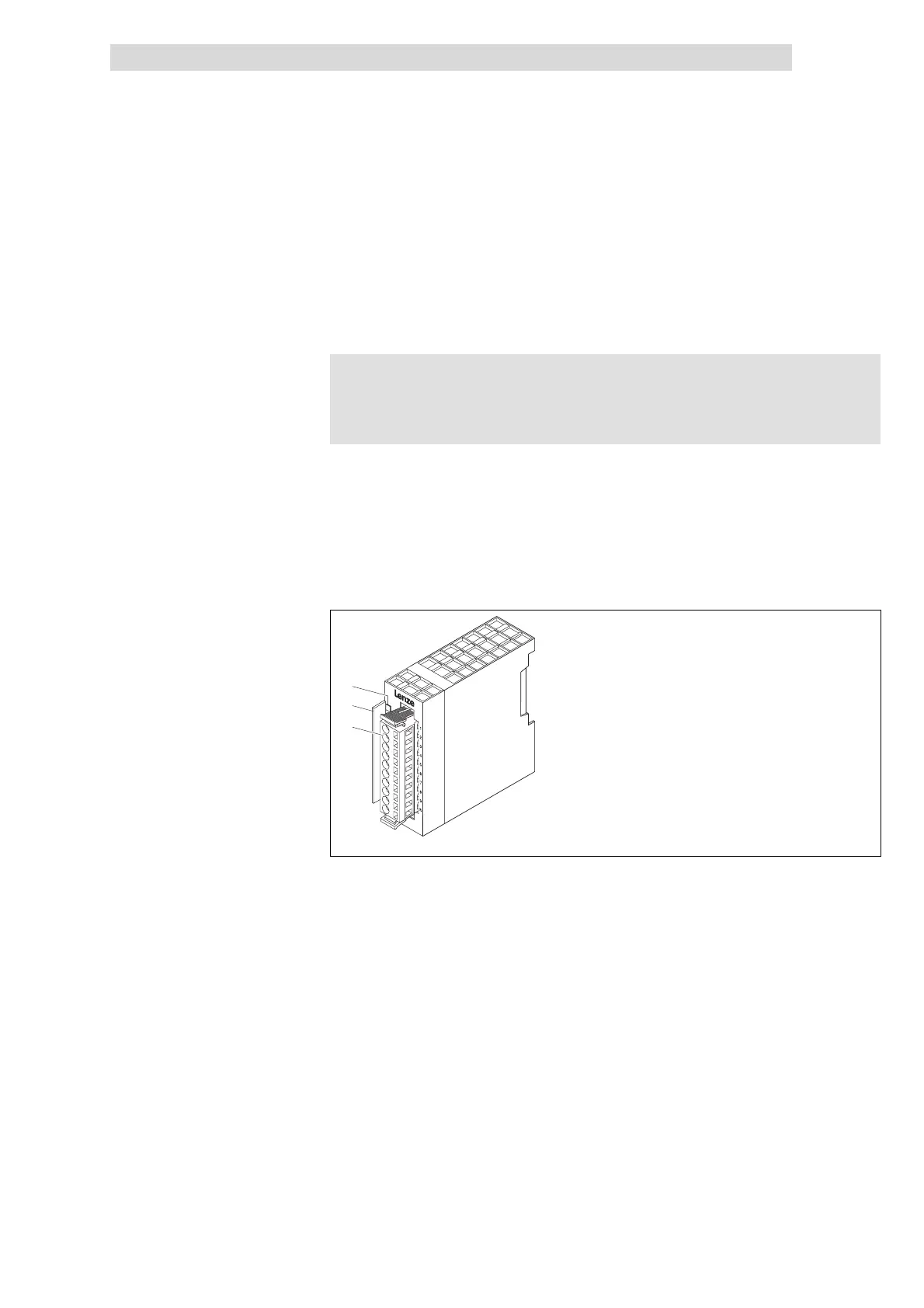

Fig. 5.7-1 Overview of 8×digital output 2A
LED for status display
Bit address label card
Plug-in terminal strip
Description
Features
Overview
