16×digital output 1A
5
The modular system
5.6
l
5.6-1
EDSPM-TXXX-3.0-04/2004
5.6 16×digital output 1A
The module 16×digital output 1A detects the binary control signals from the
master bus system and transports them to the process level via the outputs. The
digital outputs are supplied via an external voltage source (DC 24 V).
Note!
The chapter ”Parameter setting” describes how to parameterise
the module.
z
16 digital outputs
z
DC 24 V supply voltage
z
Each digital output has a capacity of up to 1 A
z
Suitable for solenoid valves and DC contactors
z
LED displays the states of the digital outputs
0
1
epm-t129

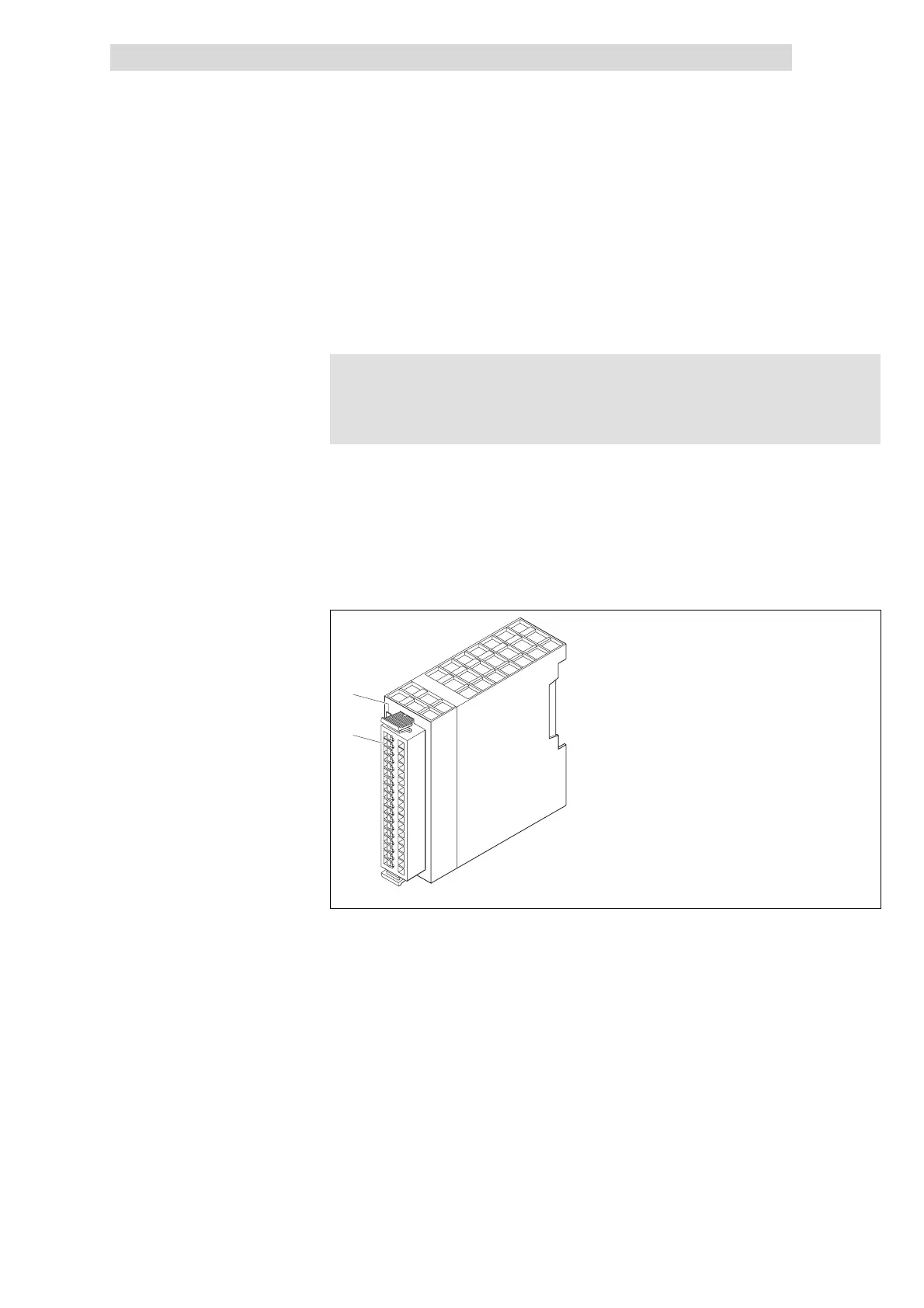

Fig. 5.6-1 Overview of 16×digital output 1A
LED for status display
Plug-in terminal strip
Description
Features
Overview
