19.5 Reviewing Alarms
When a measurement alarm occurs, all relative measurement numerics at the alarm trigger
time and related waveforms 2, 4 or 8 seconds respectively before and after the alarm trigger
time are stored. To review the stored alarms, select [Review]→[Alarms] to access the
following window.

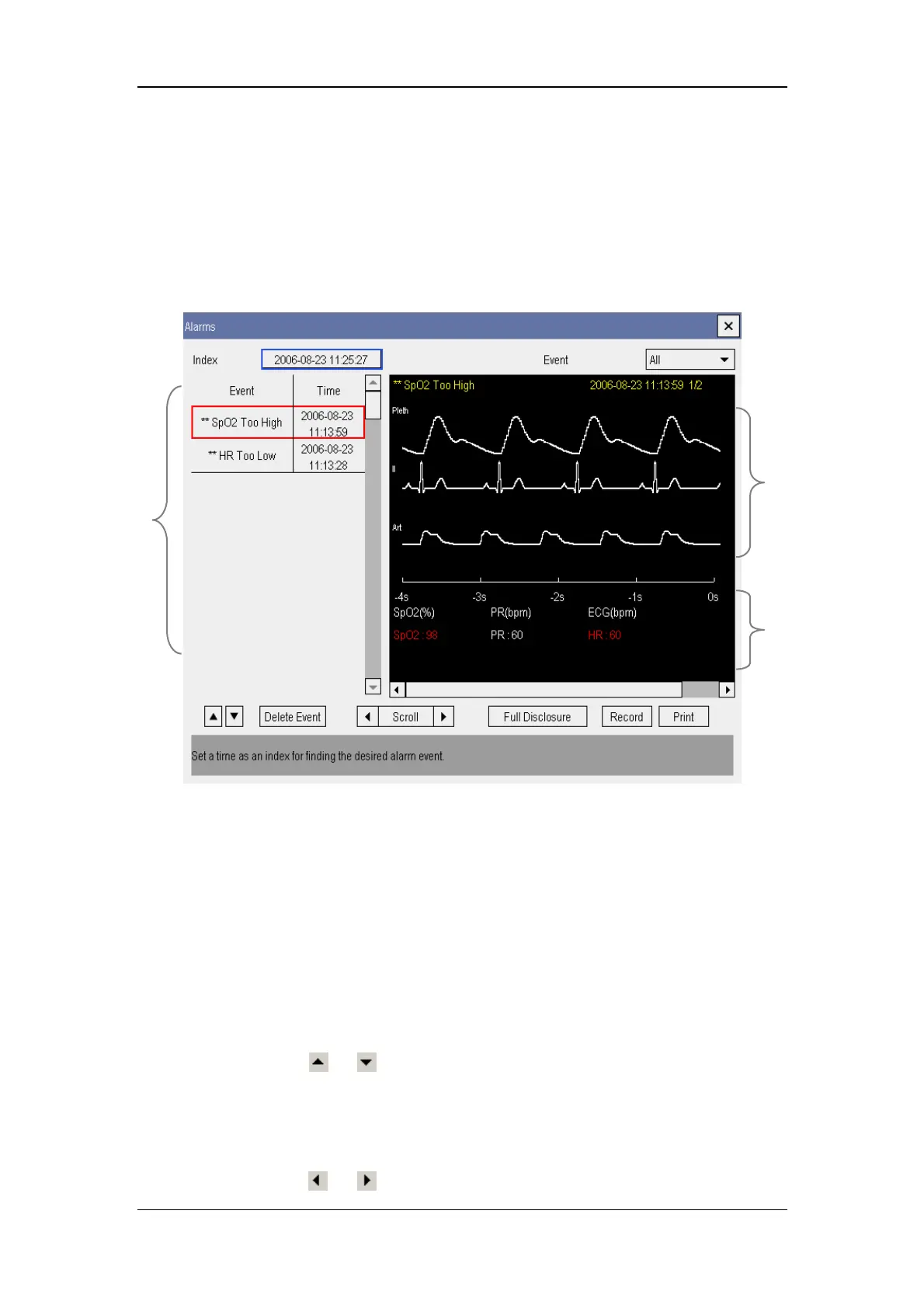

1. Event list 2. Waveform area 3. Parameter area
In this review window:
îš„ You can set a time as the index for finding your desired alarm event. There are up to 100
alarm events stored in the database. If you set a time that is too early, the earliest alarm
event will be recalled. If you set a time that is too late, the last alarm event will be
recalled.
îš„ You can view the desired measurement alarms by selecting [Event] and then selecting
the measurement whose alarms you want to view. [All] includes all measurements.
îš„ To select an alarm event for viewing, you can either:
îš‹ Select the or button, or
îš‹ Directly select your desired alarm event on the screen.
îš„ As soon as an alarm event is selected, its measurement numerics and related waveforms
are displayed respectively in the parameter and waveform area.
îš„ You can select
or to navigate through the waveforms.
