User Screen
5-3
5.2 Viewing Minitrends
5.2.1 Having a Split-Screen View of Minitrends

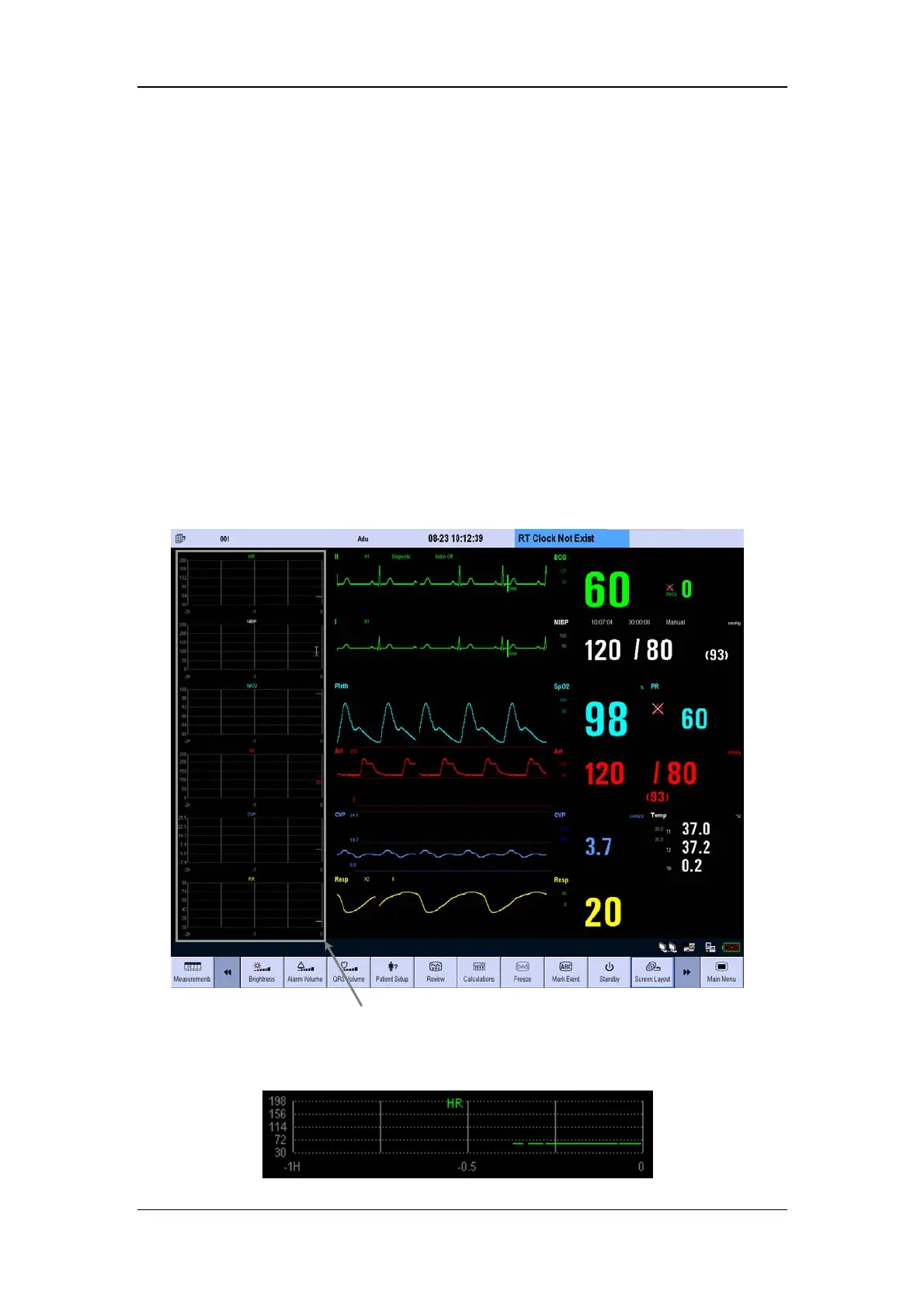

You can split the normal screen so that one part of the screen, on the left hand side,
continuously shows graphic minitrends beside waveforms as shown in the figure below.
To have a split-screen view of minitrends, you can:
îš„ Select [Minitrends] QuickKey, or
 Select [Screen Layout] QuickKey→[Minitrends]→[Ok], or
 Select [Main Menu]→[Screen Setup >>]→[Screen Layout >>]→[Minitrends]→
[Ok].
The split-screen view provides minitrends for multiple parameters. In each field, the label,
scale and time are respectively displayed at the top, left, and bottom as shown below.
