6-4 Troubleshooting Waveforms: Clocks
6.2.3 12 MHz Clock

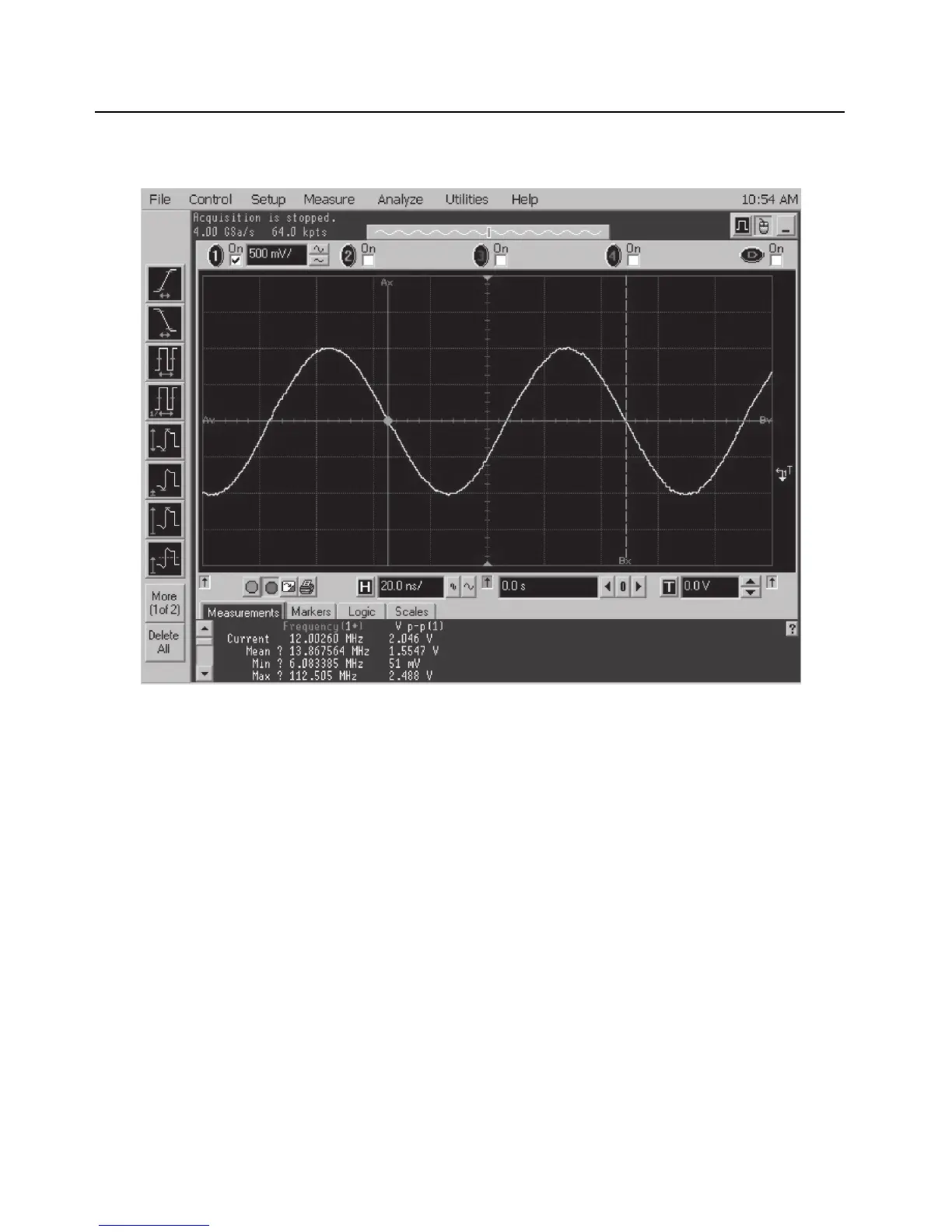

Trace 1: Trace recorded at C6601.
Figure 6-3. 12 MHz Clock Waveform
