Troubleshooting Waveforms: GCAI 6-23
6.9 GCAI
6.9.1 GPIO0

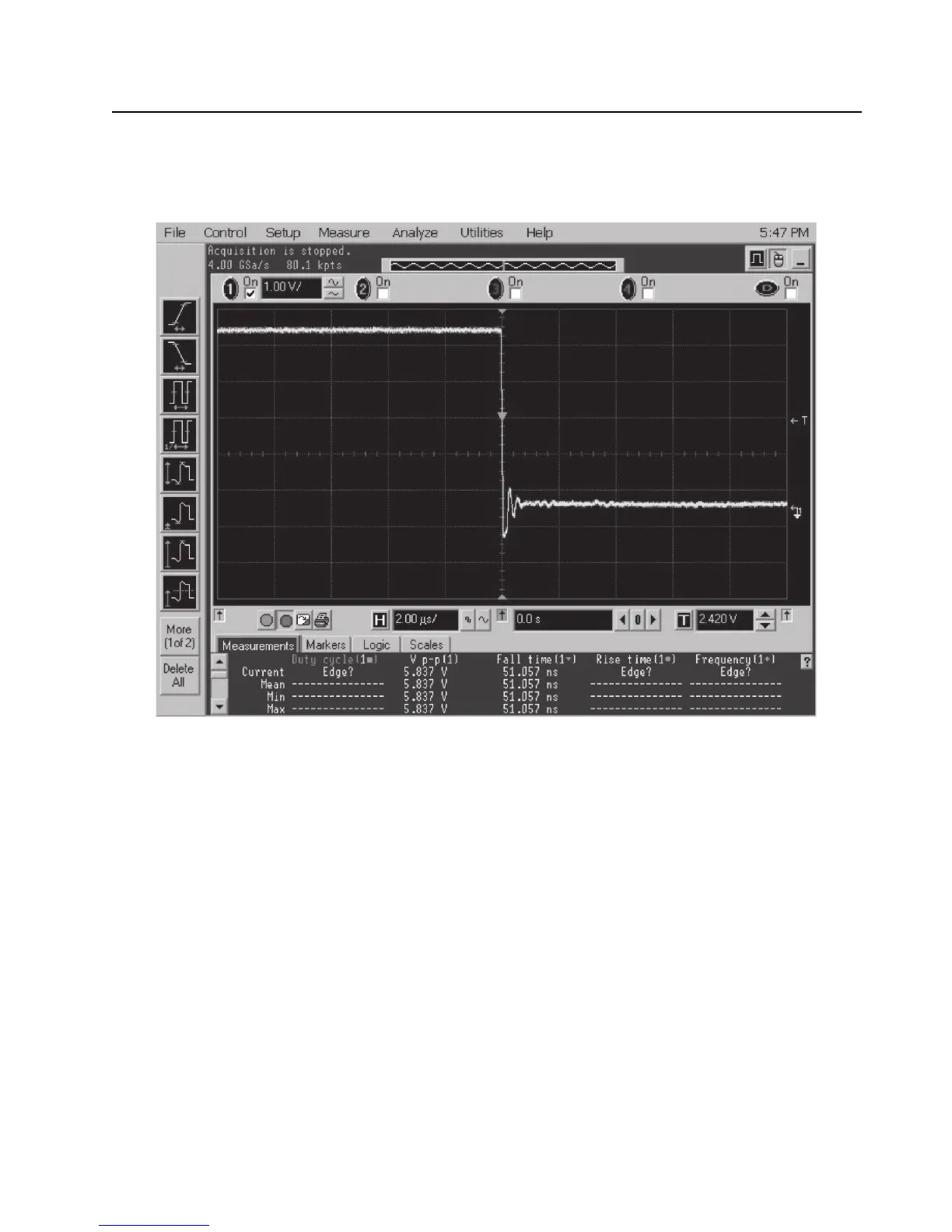

Trace 1: Trace recorded at D4001 (test point GPIO0).
Figure 6-22. GCAI – GPIO0 Waveform
