6-24 Troubleshooting Waveforms: GCAI
6.9.2 GPIO4 / Keyfail during Keyload

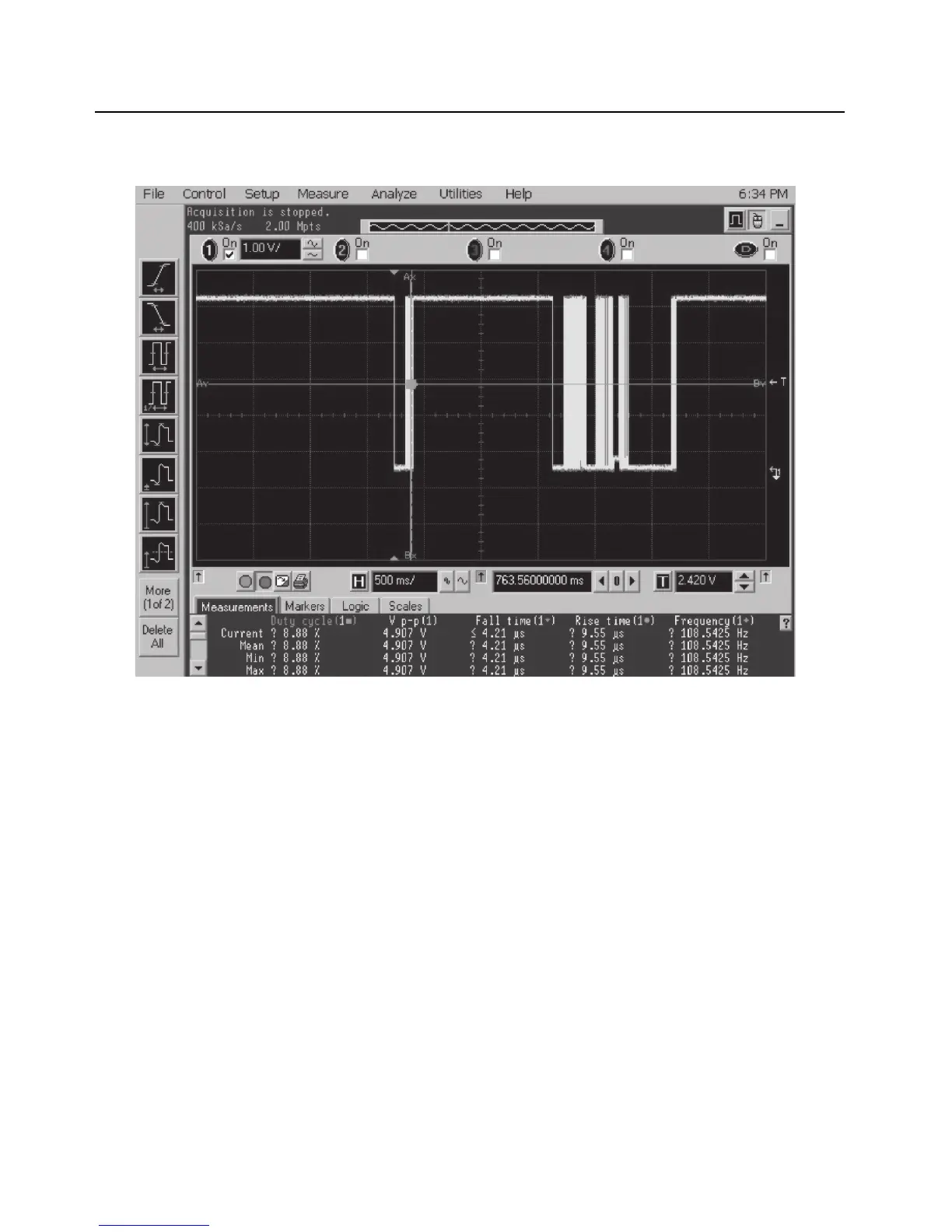

Trace 1: Trace recorded at P2001_21 or R2005 or C2006 (DNP).
Figure 6-23. GCAI – GPIO4 Waveform
