Debugging Fixture: Powering up Covert Board 9-7
9.7 Powering up Covert Board
1. Connect the positive terminal to the positive side of the power supply and connect the
negative terminal to the negative side. Set the power supply voltage level to 7.5V and current
to 4Amps.
2. Switch on the board by using the On/Off switch.
3. A green LED will light up once the board is switched on. Use the display to observe any error
message.

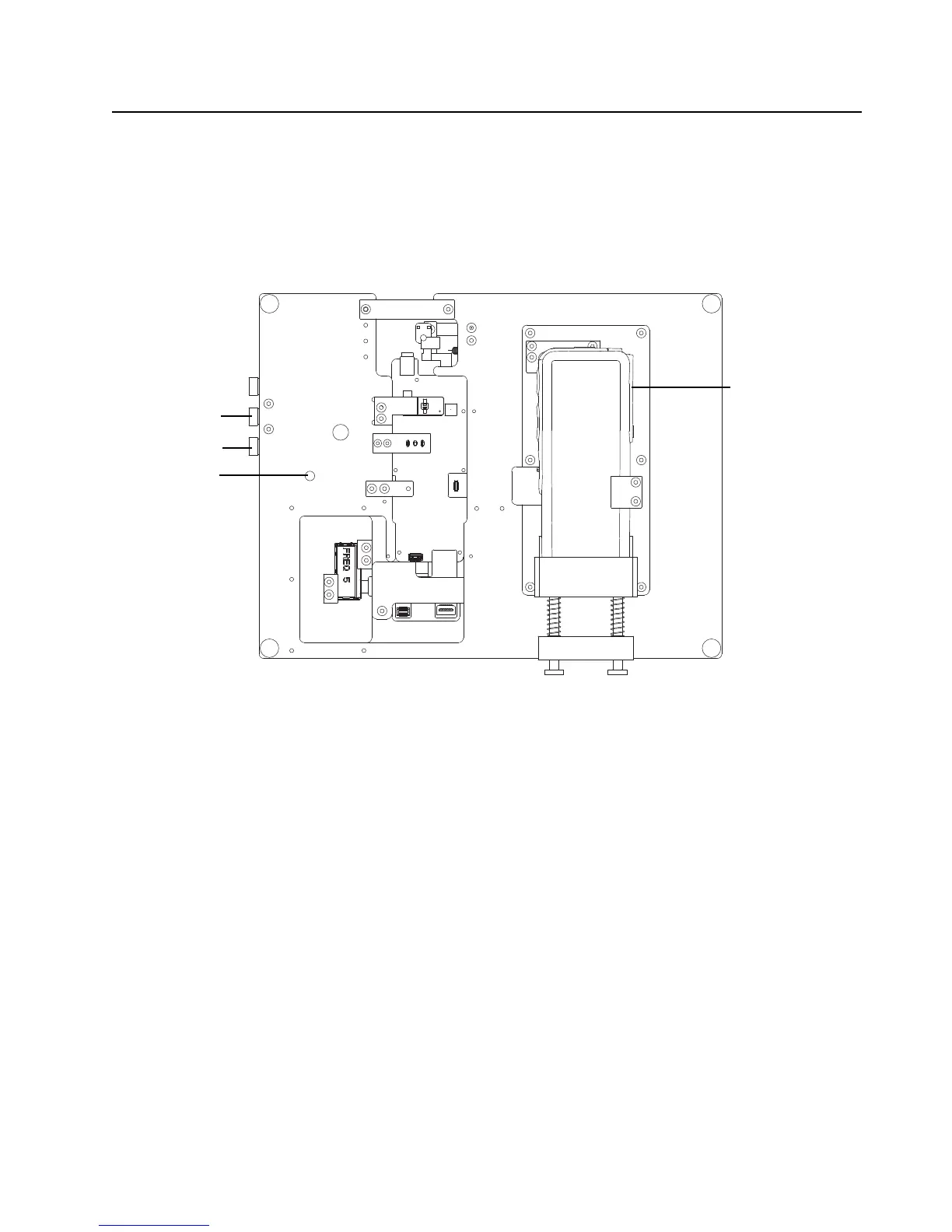

Figure 9-11. Power up Covert board
GCAI
Interface
-ve terminal
+ve terminal
On/Off switch
To Next Page
