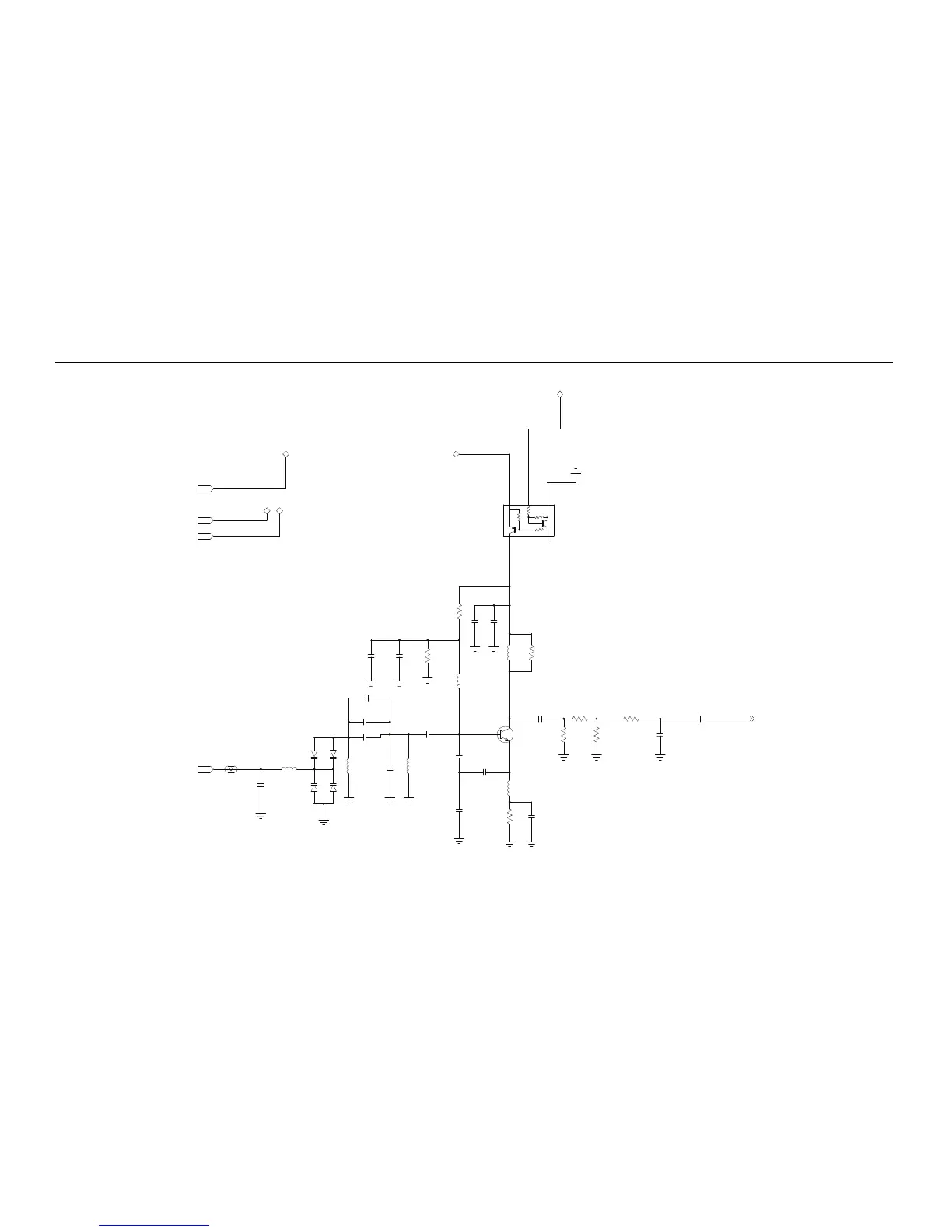

Schematics, Boards Over
lays, and Parts Lists
: Main Board Block: UHF1 (84012513001_A)
8-13
Figure 8-1
1. Transmit
ter VCO Circuit
GPO1
GPO2
DC_SUPER_FILTER_5V
IN
IN
IN
GPO2
DC_SUPER_FILTER_5V
4.7K
47K
47K
10K
UMC5NT2
Q3161M22
3
1
4
5
2
150
6.8K
0.1UF
100PF
390NH
C3157M22
R3158M22
R3149M22
C3155M22
L3158M22
0.1UF
100PF
8.2K
390NH
C3144M22
C3142M22
R3146M22
L3150M22
4.3PF
4.7PF
2.7PF
DNP
4.7PF
C3103M22
C3141M22
C3140M22
C3147M22
IF
100PF
C3133M22
IF3105M22
VCTRL
1
IN
1SV279
13NH
15NH
1SV279
3PF
1SV279
1SV279
390NH
D3137M22
D3138M22
D3135M22
L3134M22
D3136M22
L3145M22
C3143M22
L3139M22
2
1
21
2
1
21
5.6PF
270NH
51PF
8.2PF
100PF
150
C3151M22
C3106M22
R3160M22
C3152M22
L3159M22
C3154M22
NE856
150
150
36
4.7PF
R3109M22
R3107M22
R3108M22
C3160M22
Q3156M22
1
2
3
0
L3102M22
100PF
DNP
10PF
C3114M22
C3112M22
VCO_TX
234
236
