6-62
Troubleshoo
ting Waveforms
:
Bluetooth Steady-State
6.16.5
W

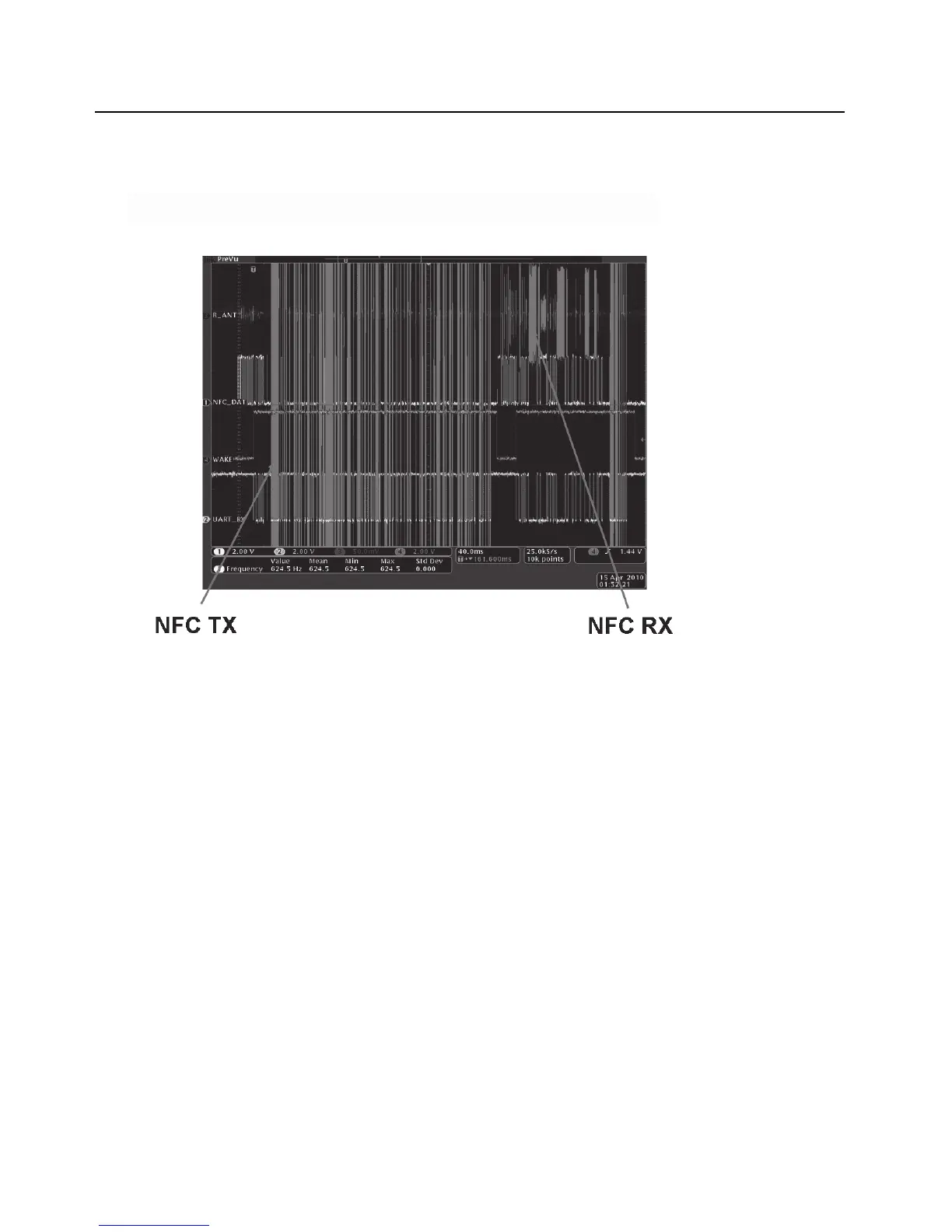

aveforms – LF Coil with TX and RX
Figure 6-59. LF
Coil when TX and
RX
Data taken
from LF
inductor
contact at
C2454 or
C2457 while
pairing with
a headset
TX V
oltage
can be
as high as 40V
OOK used
205
207
