Debugging Fixture: Debugging Fixture Set up 9-5
4. Turn to the bottom plane of the fixture, remove the transparent cover (2) and then assemble
the Extended Main flex (P/N: 0104055J18) on the fixture. Connect the connector that is on
the extended flex with the mating connector on the main flex in the front housing kit . Once
the flex is connected, screw back the transparent cover (2).

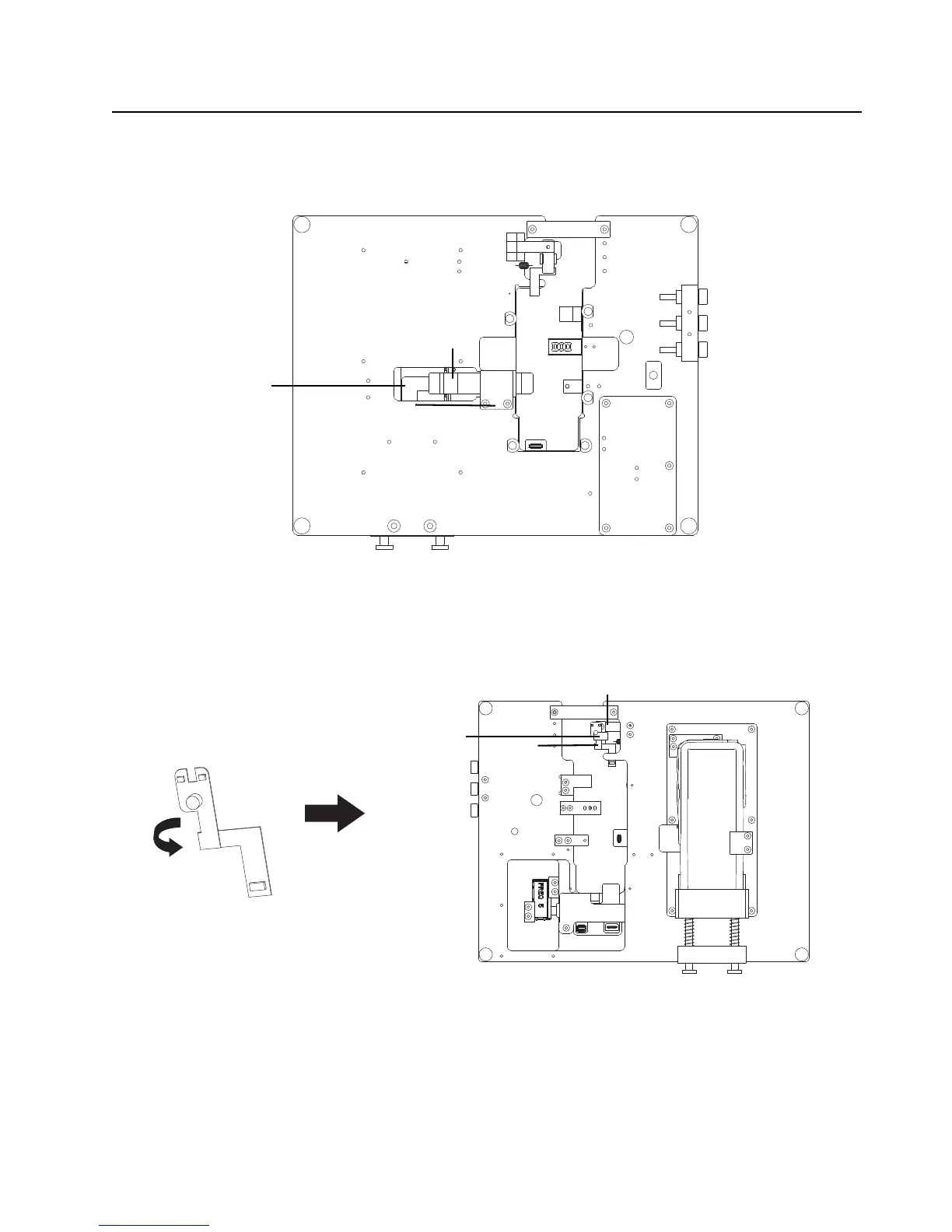

Figure 9-8. Remove transparent cover (2)
5. Fold the NFC Flex (P/N: 0104052J74) according to figure below. Assemble the NFC Flex on
the LED stick Module and secure the flex with a clip. Once the NFC Flex is assembled, the
fixture is ready to troubleshoot the board.
Figure 9-9. Assemble NFC Flex
Transparent cover (2)
Main Flex in front
housing kit
Extended Main Flex
(0104055J18)
NFC Flex
(0104052J74)
Clip
LED stick Module
To Next Page
