Theory of Operation: Bluetooth 3-49
To connect a Bluetooth accessory, the blue pairing indicators on the accessory and the radio should
be brought close to each other with the Bluetooth feature enabled and on in the radio. The
LF/Bluetooth connection flow is shown in Figure 3-37.

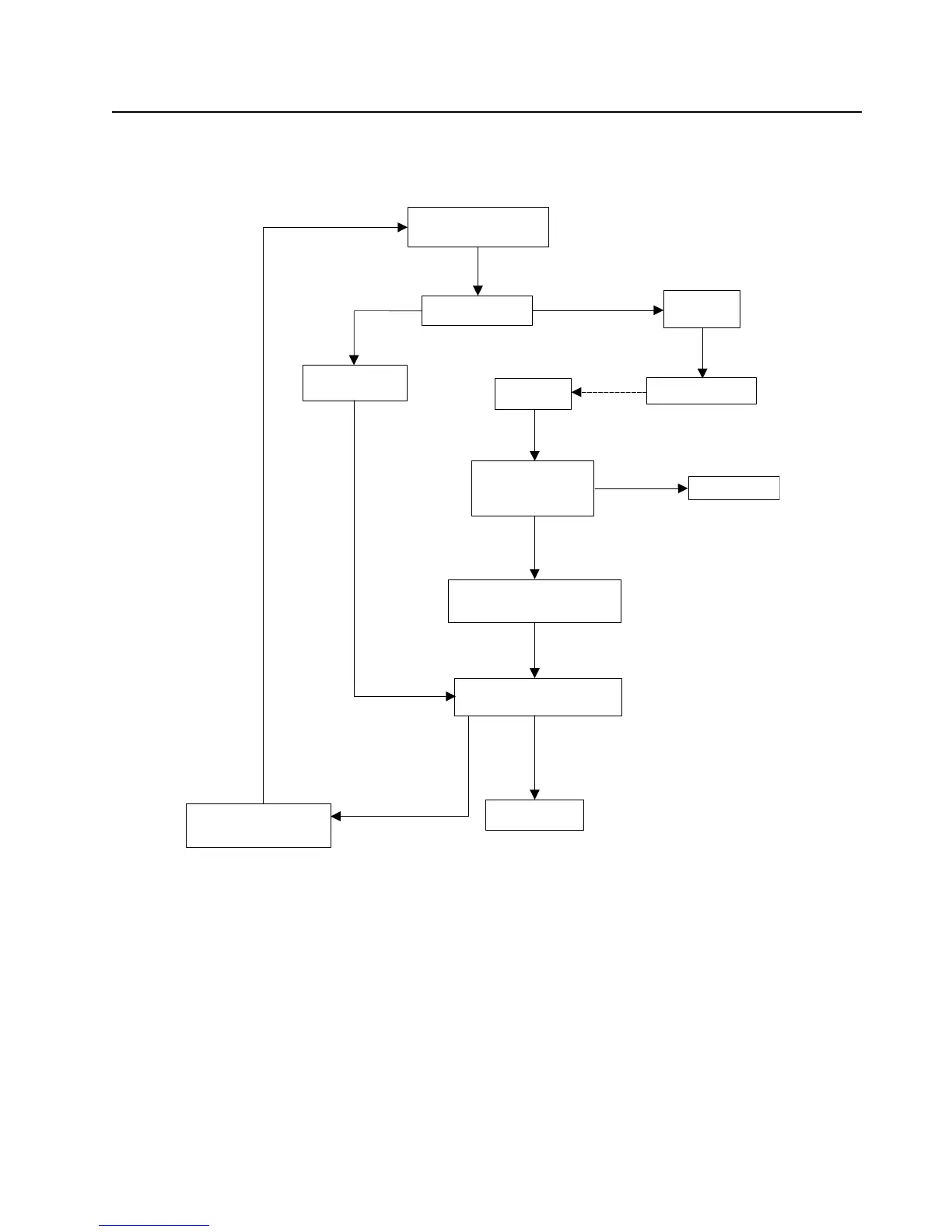

Figure 3-37. Bluetooth Connection Flowchart
Radio and Accy Power Up
Able to pair
Initial NFC Pairing
Not able to
re-establish pairing
If Link Breaks
a
appears solid
SW tries to re-establish
connection for 'x' mins.
Standby Icon (flashing)
Icon no longer Solid.
b
appears.
Module requires NFC re-pairing
With radio and accy. already on,
re-attempt pairing procedure.
Refer to Bluetooth pairing
flowchart and/or User Guide
a
appears solid
Connect
sound
Disconnect
sound
Disconnect
After X min
search - BAD
Reconnect
Connected
Bad
sound
Connect sound
a
appears solid
Connect Sound
To Next Page
