Troubleshooting Waveforms: GPS 6-37
6.14.3 GPS UART (RX / TX) Data

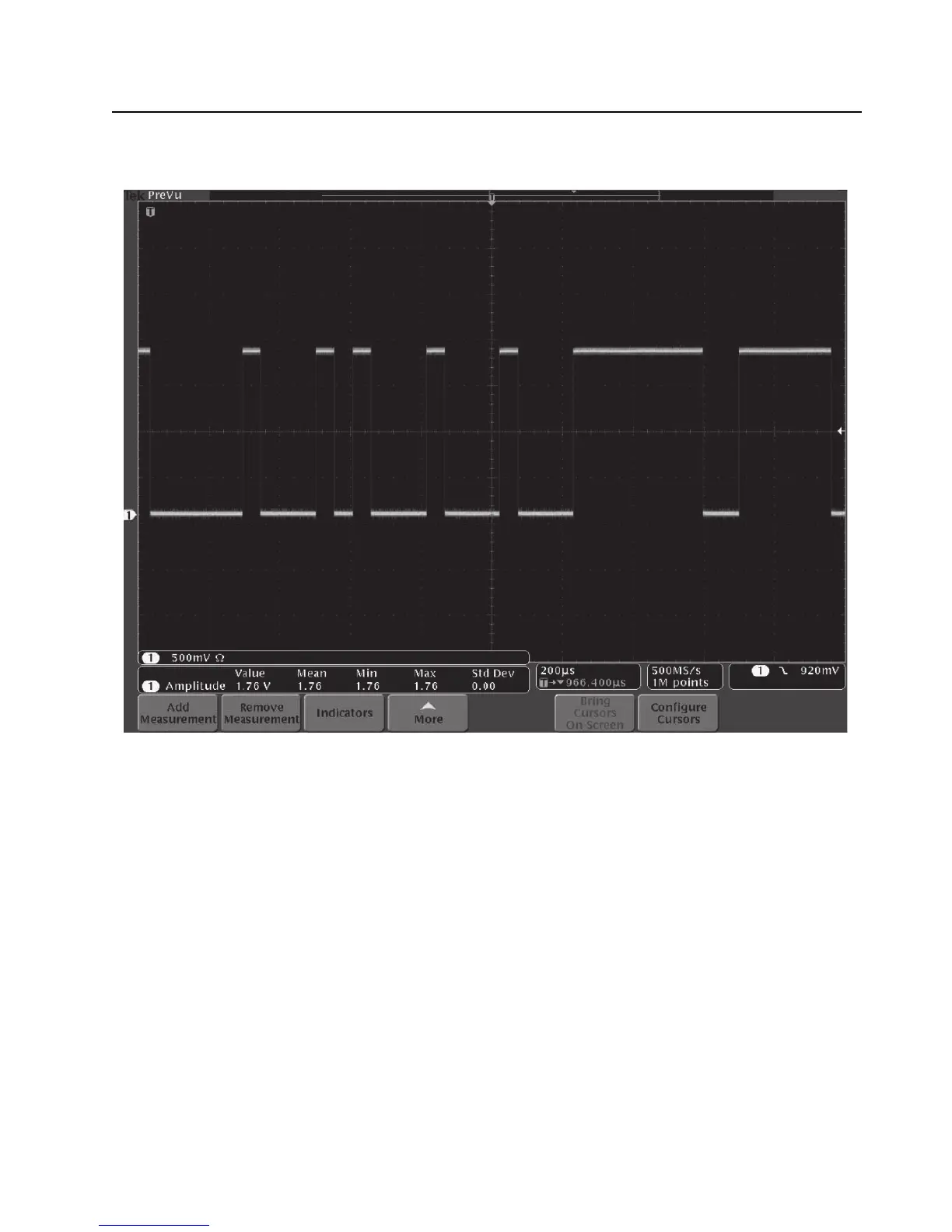

Trace 1: Trace recorded at R1322 (TX) / R1323 (RX) of Main Board.
Figure 6-36. GPS UART DATA Waveforms
