6-6 Troubleshooting Waveforms: Clocks
6.2.5 24 MHz Clock

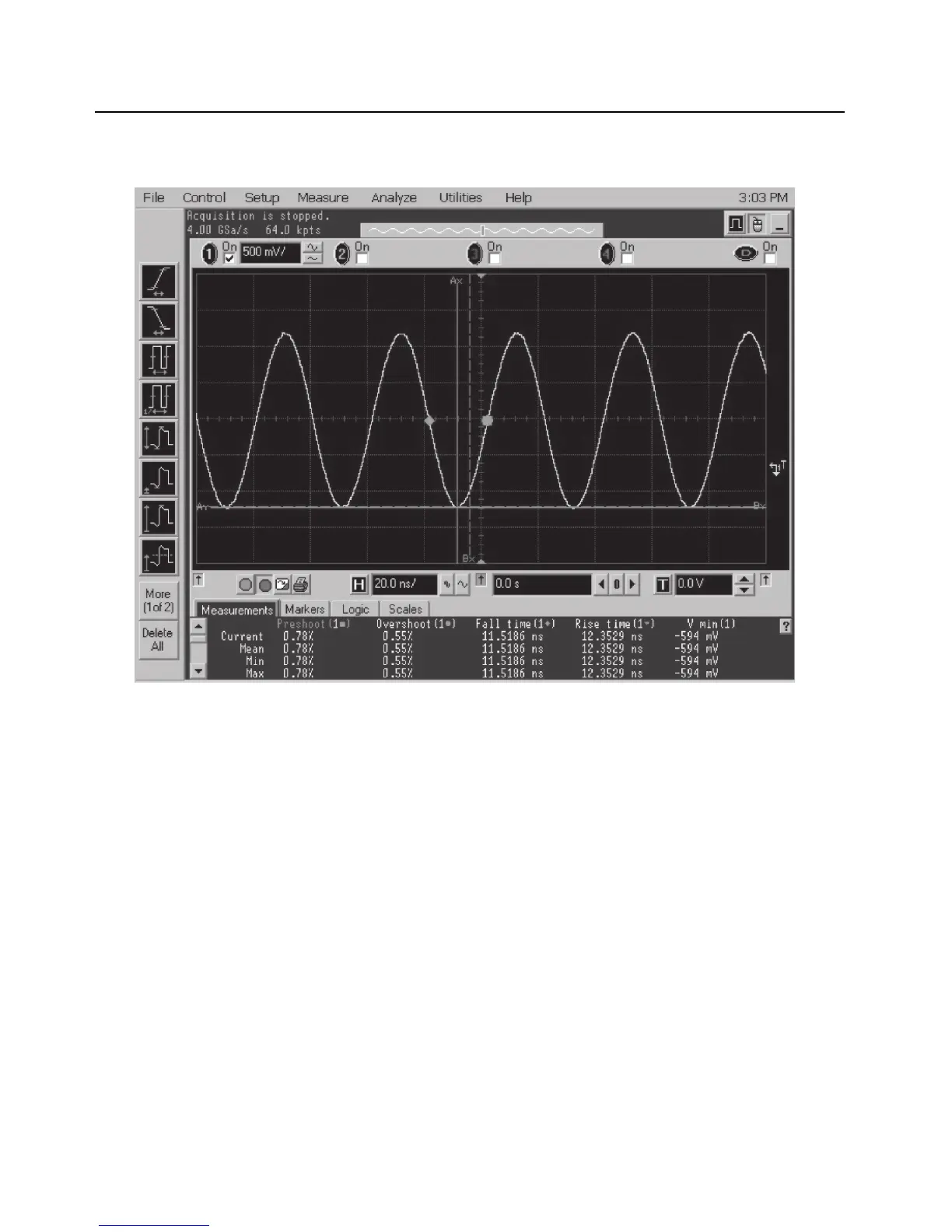

Trace 1: Trace recorded at C6592.
Figure 6-5. 24 MHz Clock Waveform
