Motorola MCS 2000 Service Instructions

68P81083C20-D December 6, 2004

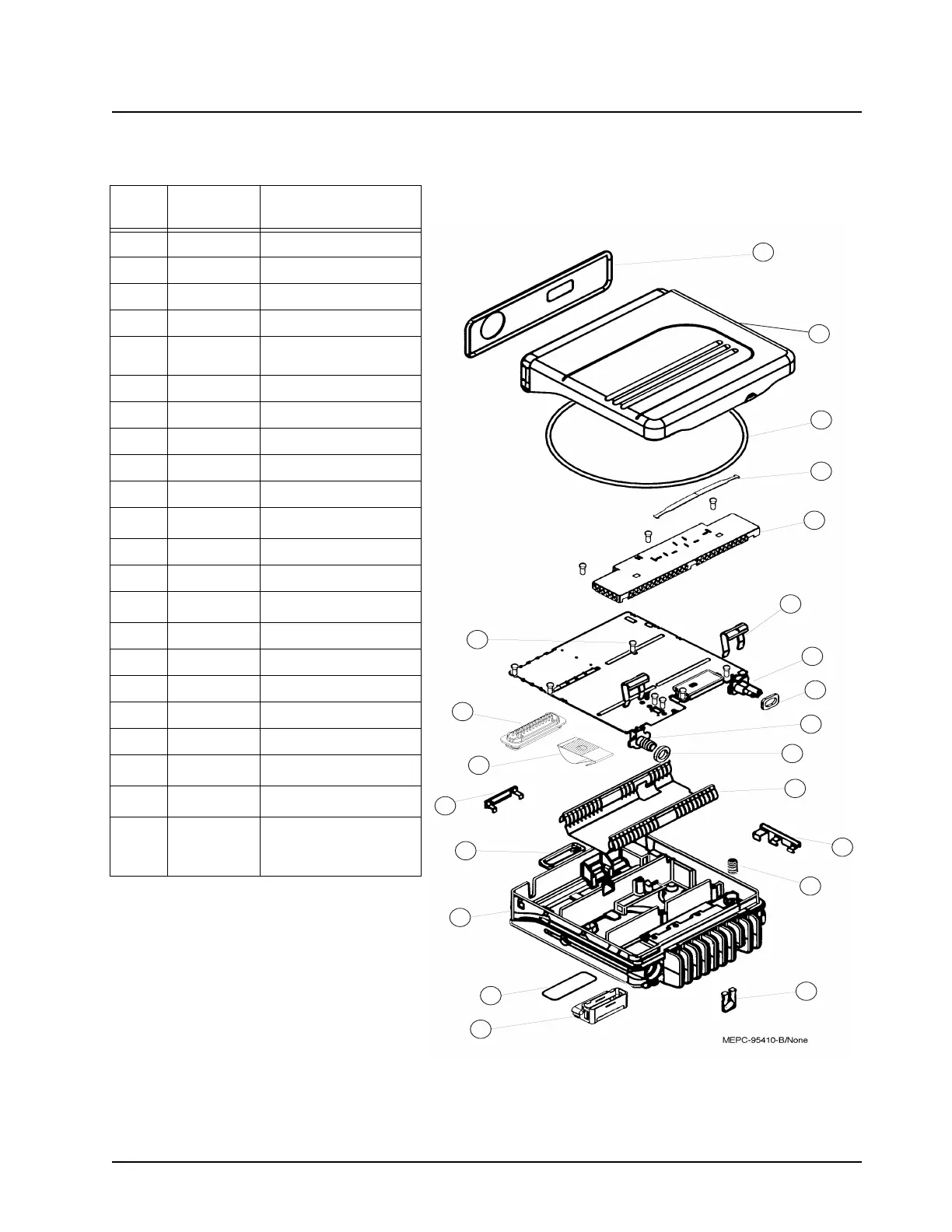

Diagrams and Parts Lists: Exploded View Parts List, Mid Power 10-5
Exploded View Parts List, Mid
Power
ITEM
NO.
MOTOROLA
PART NO. DESCRIPTION
1 3205931V02
Gasket, Front Cover
2 1505764X01
Top Cover Assembly
3 3205082E97
Gasket, Top Cover
4 5584300B04
Handle
5
or
2605625X03
2605625X04
PA Shield, 800/900 MHz
PA Shield, UHF R2
6 4205938V01
Clip Spring, 2 pcs.
7 0905902V04
Power Connector
8 3205457Z04
Gasket, Power Connector
9 0905901V10
Antenna Connector
10 3205457Z03
Gasket, Antenna Connector
11 2604693P01
Board Slot Shield,
800 MHz only
12 4205727X02
Clip, Audio PA
13 4105783W01
Spring Diode
a
a Parts are obsolete on newer kits.
14 4205627X01
Retainer, Accessory Connector
Cable
15 HLN6412
Accessory Connector
16 3305873U04
Label, Rear Cover
17 2705816W06
Chassis, Mid Power
18 3205935V01
Gasket, 25 D Connector
19 4205496Y01
Clip, PCB
20 4185738B01
Clip, PA Grounding UHF R2
Only, 2 pcs
21 2805429W03
25 Position D Connector,
Sealed
22 0310907A20
0310911A12
0386265A01
Screw M3X0.5X10, 12 pcs.
b
Screw M3x0.5x10, 6 pcs.
b
Screw M3x0.5x10, 2 pcs.
b
b Number of screws can vary depending on the
model.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
