December 6, 2004 68P81083C20-D
5-4 Disassembly & Reassembly and Replacement Procedures: Disassembly to Transceiver Board Level

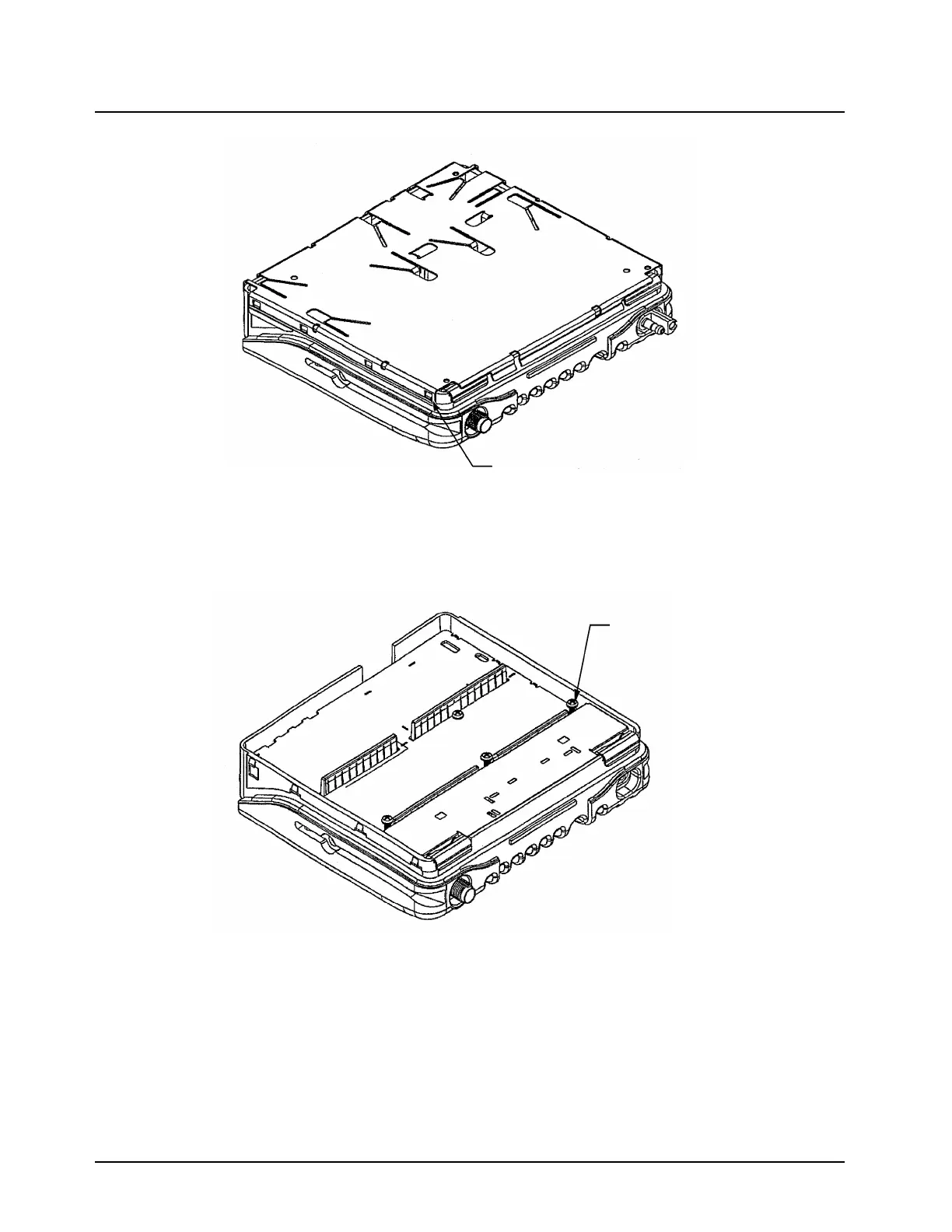

Figure 5-4. Removing the Cavity Shield
Remove the PA Shield L
OW AND MID POWER MODELS
1. Unscrew the three screws that hold the PA shield with T-10 Torx Driver.
2. Remove the PA shield by pulling straight up on the attached handle.
Figure 5-5. Removing the PA Shield (Low and Mid Power Models)
Remove the Transceiver Board E
XCEPT 800 MHZ AND 900 MHZ
NOTE: For 800 MHz and 900 MHz radios go to page 6.
Low Power Models
1. Remove the Accessory Connector on the bottom of the radio by sliding a finger into the
recess on the chassis and pushing up on the connector tab to loosen the connection. Lift the
connector out of the recess.
Cavity!Sheild!Tabs
PA!Section!&!PCB
Holding!Screws!(3)
To Next Page
