68P81083C20-D December 6, 2004
Disassembly & Reassembly and Replacement Procedures: Replaceable Pushbuttons Replacement Procedure 5-21

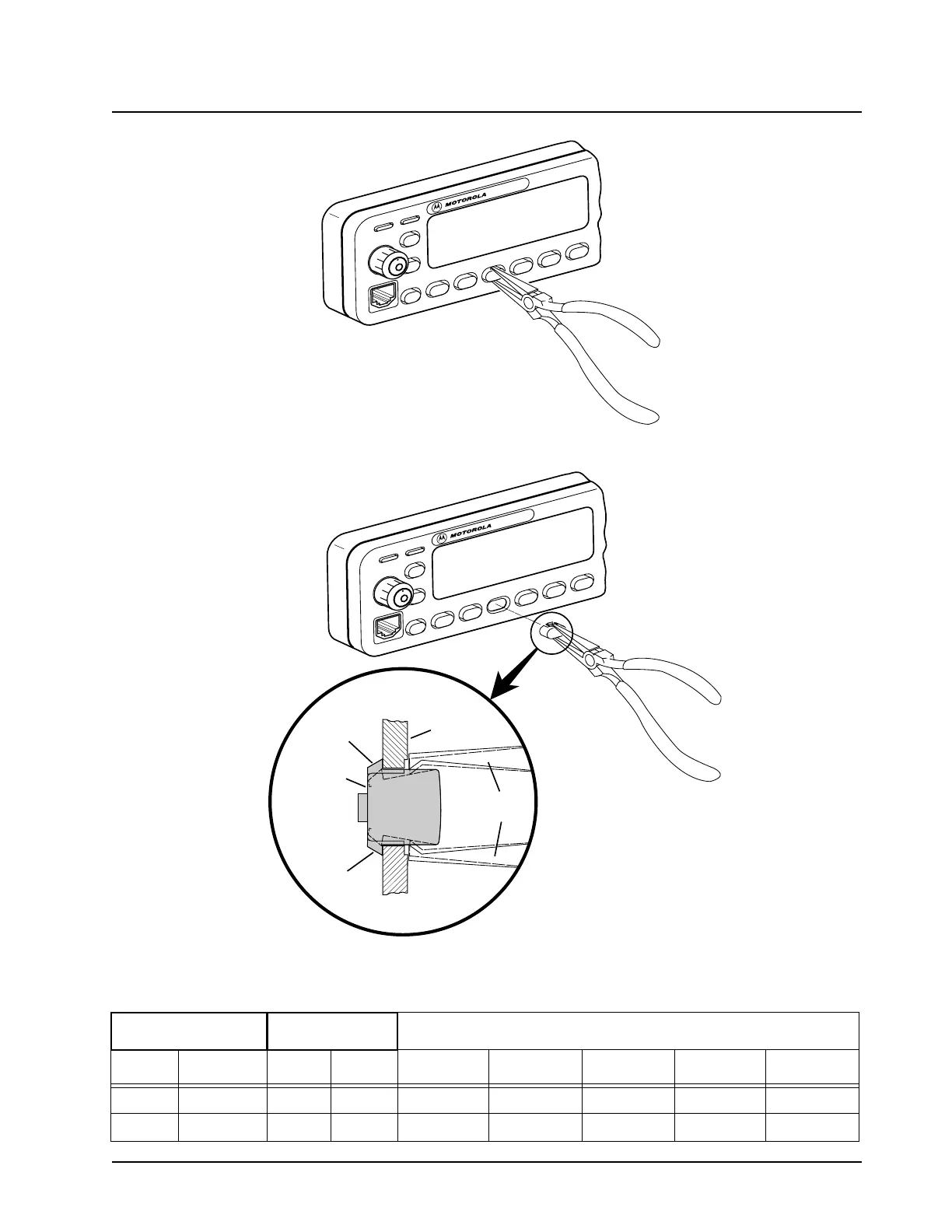

Figure 5-27. Grasping Pushbutton with Flat End Pliers
Figure 5-28. Pulling Pushbutton Away from Control Head
Table 5-2. Replaceable Pushbutton Graphics and Part Numbers
Graphic Color Pushbutton Part Number
Legend Description Button Graphic Size A Size B Size C Size D Size E
BLANK Blank White N/A 3805230Z01 3805231Z01 3805232Z01 3805233Z01 3886267A01
BLANK Blank Orange N/A 3805230Z18 3805231Z14 3805232Z10 N/A 3886267A10
MCS 2000
MEPC-96618-O/None
Tab
Tab
Plier
Nibs
Pushbutton
Control Head
Faceplate
MCS 2000
MEPC-96619-O/GB
To Next Page
