Motorola MCS 2000 Service Instructions

December 6, 2004 68P81083C20-D

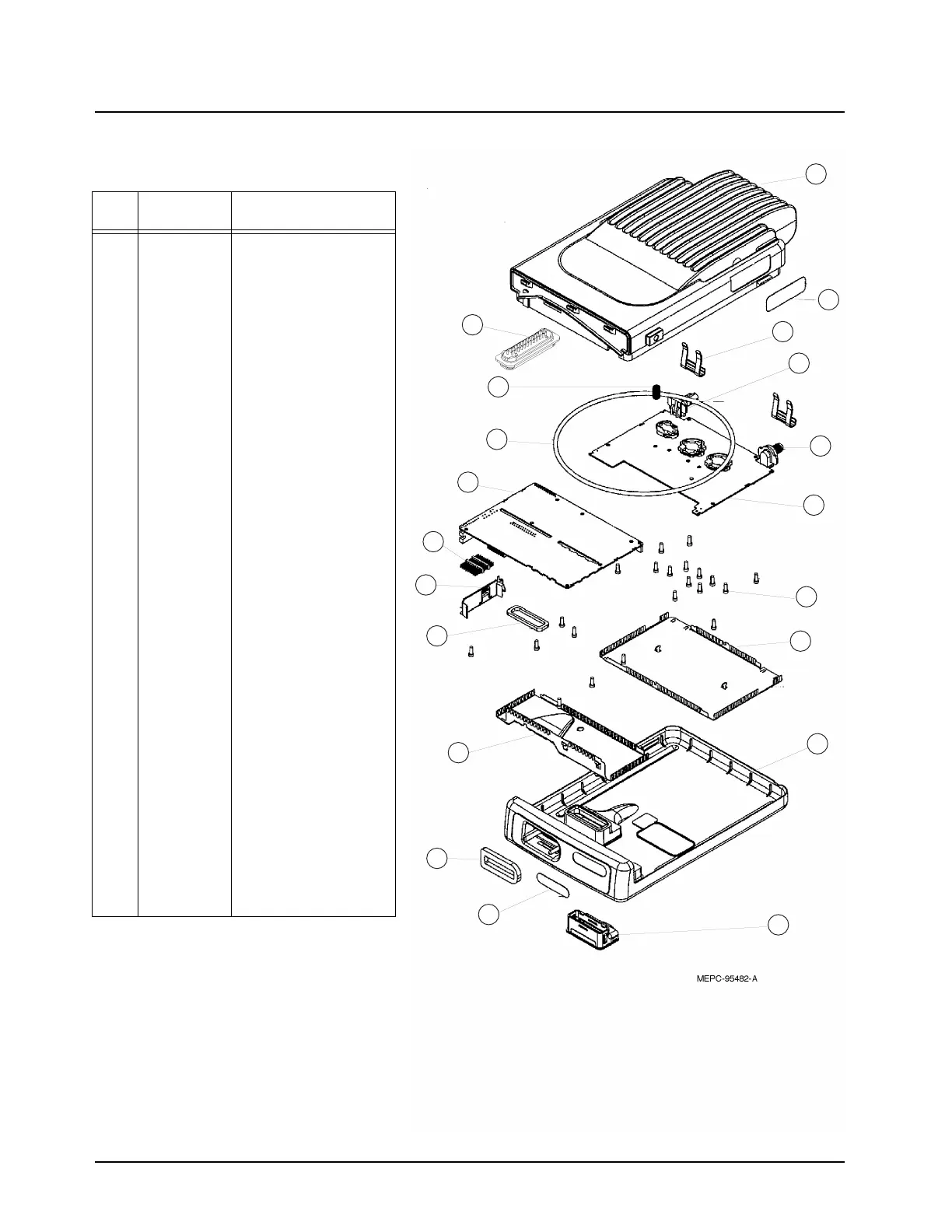

10-6 Diagrams and Parts Lists: Exploded View Parts List, High Power
Exploded View Parts List,
High Power
ITEM
NO.
MOTOROLA
PART NO. DESCRIPTION
1 2705815W02 Chassis, High Power
2 3305179X01 Name Plate
3 4205938V01 Clip, Spring
4 0905902V04 Power Connector
4a 3205457Z04 Gasket, Power Connector
5 0905901V10 RF Connector
5a 3205457Z03 Gasket, RF Connector
6 HUD4021 PA Board, VHF R1
or HUD4016 PA Board, VHF R2
or HUE4018 PA Board, UHF R1
or HUE4030 PA Board, UHF R1
or HUE4020 PA Board, UHF R2
7 0386265A01 Screw M3X0.5X10, 6 pcs.
7a 0310911A12 Screw M3X0.5X10,
VHF 16 pcs./UHF 18 pcs.
8 2605387Z02 PA Shield with Handle
9 1505849X03 Bottom Cover
10 HLN6412 Accessory Connector
11 3305873U04 Label, Rear Cover
12 3205789W01 Gasket, Remote Cable
13 2605265Y02 RF Shield with Handle
14 3205935V01 Gasket, 25 D Connector
15 4205169Y01 Audio PA Clip
16 2805347X02 Plug, High Spec.
17 HUD4019 Transceiver Board, VHF
or HUE4017 Transceiver Board, UHF
18 3205934V01 Gasket, Top Cover
19 4105783W01 Spring Diode
20 2805429W03 25 Position D Connector,
Sealed
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
9
20
