10-8 Diagrams and Parts Lists: Exploded View, Control Head Model II

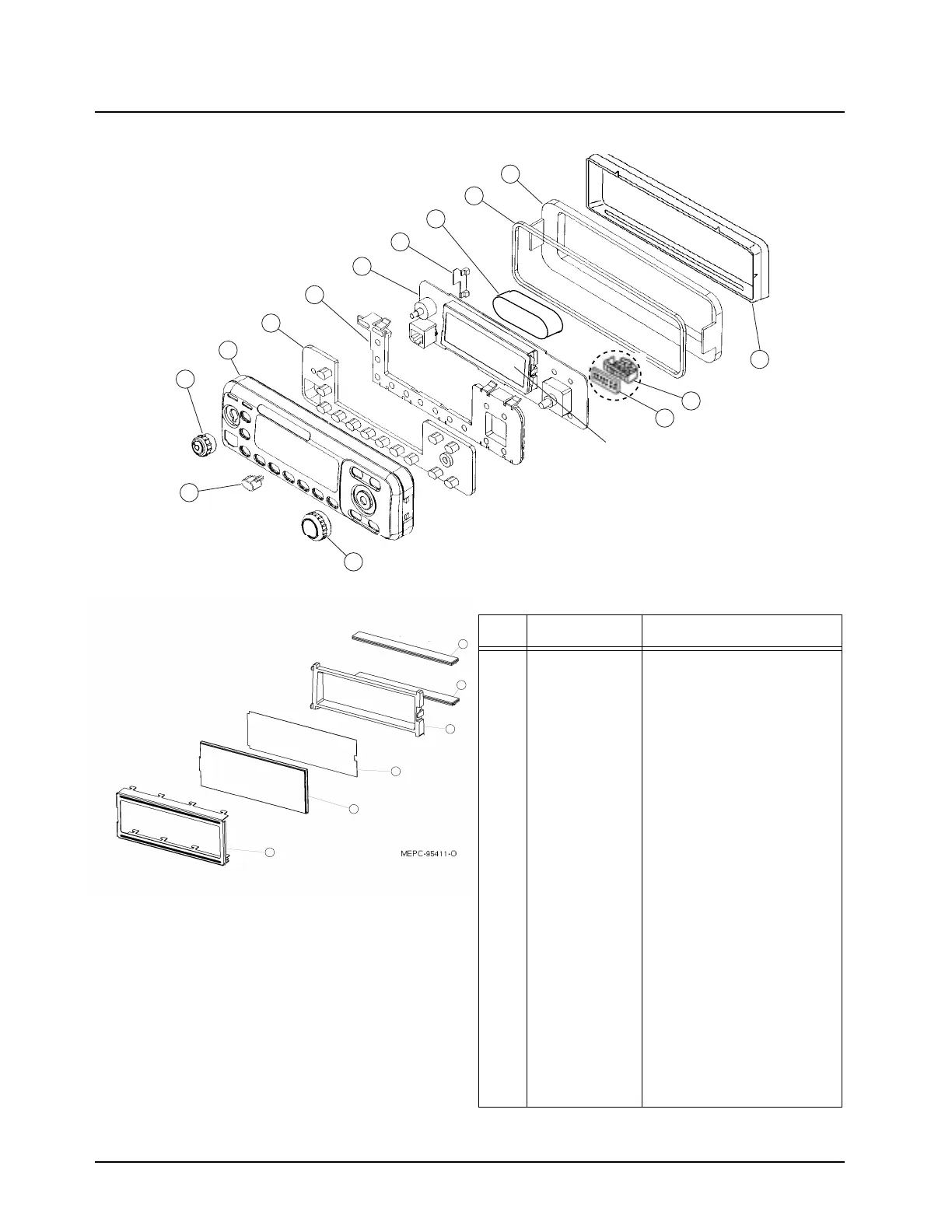

Exploded View, Control Head Model II
ITEM
NO.
MOTOROLA
PART NO. DESCRIPTION
1 1502455Y05 Housing, Back
2 3202462Y03 Gasket, Housing
3 4602100U01 PCB Retainer
4 HCN4058
PCB Assembly
a
a Radios with SDLN4192 may use HCN4058 as replacement
5 6102082U04 Light Guide
6 7505241Z04
or 7505241Z04
Keypad, std. with text
Keypad, without buttons for use w.
Replaceable Pushbuttons, Ref. 20
7 1502100U14 Housing, Control Head Model II
8 3685804A02 Volume Knob
9 3602100U01 Rotary Knob
10 7608133K01
Ferrite Plate
b
b Parts have been eliminated
11 1580365K01
Shroud, white
2
12 0704779P01 Retention Frame
13 2802102U01 Connector, Elastomeric - Gray
14 2802101U01 Connector, Elastomeric - Pink
15 0702103U03 Frame, LCD
16 9102101U02 Reflector Sheet
17 7202076U04 Display Glass
18 1302100U01 Bezel
19 3280542K01 Adhesive Pad
20 see Chapter 5 Replaceable Pushbutton
21 FLN9057 18 pin Flexible Interconnect Cable
1
2
3
4
5
6
8
19
12
7
20
10
9
LCD:!see
detail!below
11
13
14
15
16
17
18
LCD!Detail
