Motorola MCS 2000 Service Instructions

68P81083C20-D December 6, 2004
Diagrams and Parts Lists: Exploded View Parts List, Control Head Model I 10-7

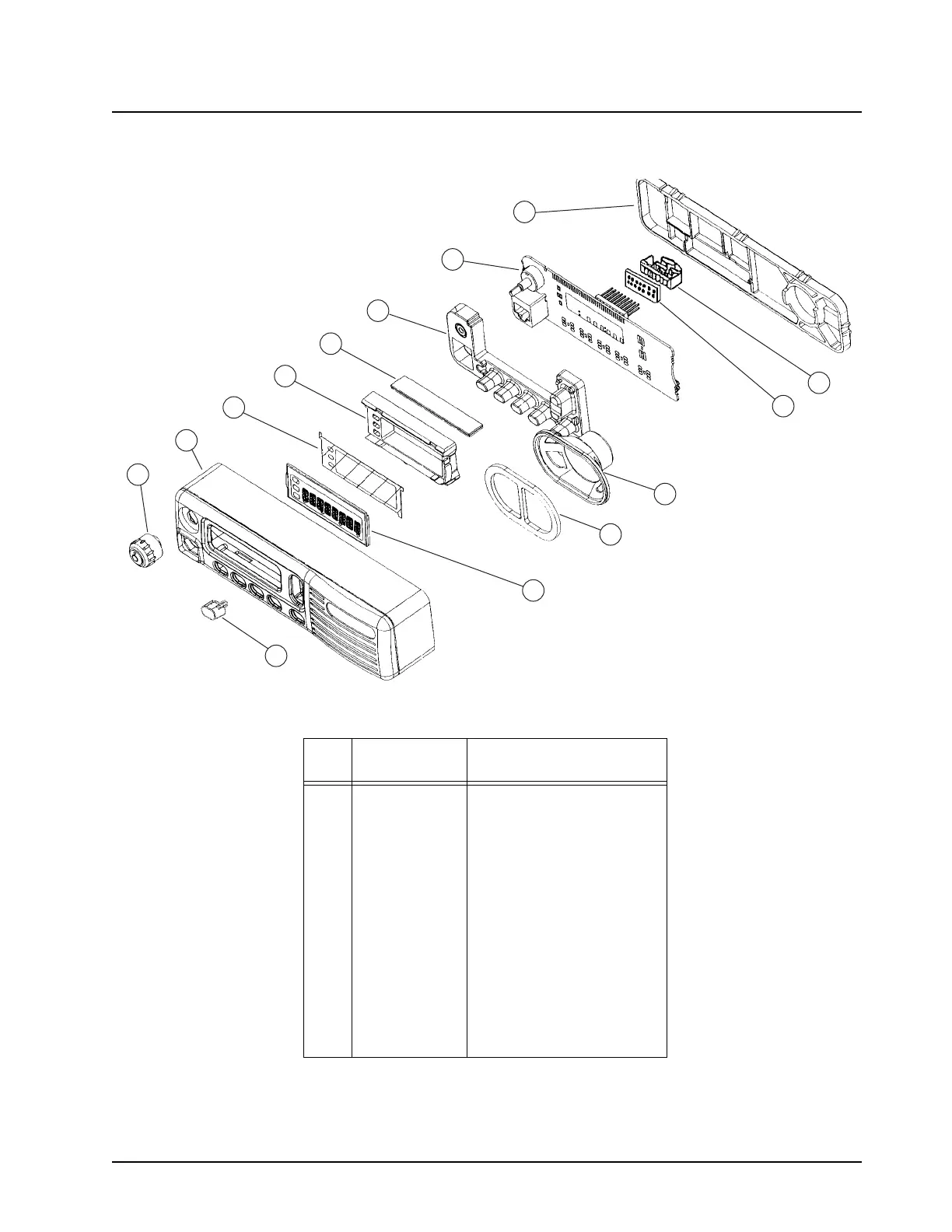

Exploded View Parts List, Control Head Model I
ITEM
NO.
MOTOROLA
PART NO. DESCRIPTION
1 0702103U01 Frame Lock
2 0180758T08 Front End
3 7505240Z03
or 7505240Z01
Keypad, Elastomeric
Keypad, for replaceable button
4 2802103U02 Connector, Elastomeric
5 0702103U02 Frame, LCD
6 9102100U01 Colour Sheet, LCD
7 1502102U07 Housing, Control Head Model I
8 3685804A02 Volume Knob
9 7202100U03 LCD Glass
10 3205932V01 Gasket, Speaker
11 5005156Z02 Speaker
12 7608133K01 Ferrite Plate
a
a Parts have been obsoleted on newer kits.
13 1580365K01 Shroud, white
1
14 see Chapter 5 Replaceable Pushbutton
1
2
3
4
5
6
8
13
11
7
10
9
12
14
MEPC-95406-A/None
