December 6, 2004 68P81083C20-D
5-14Disassembly & Reassembly and Replacement Procedures: Transceiver Reassembly Low and Mid Power Models

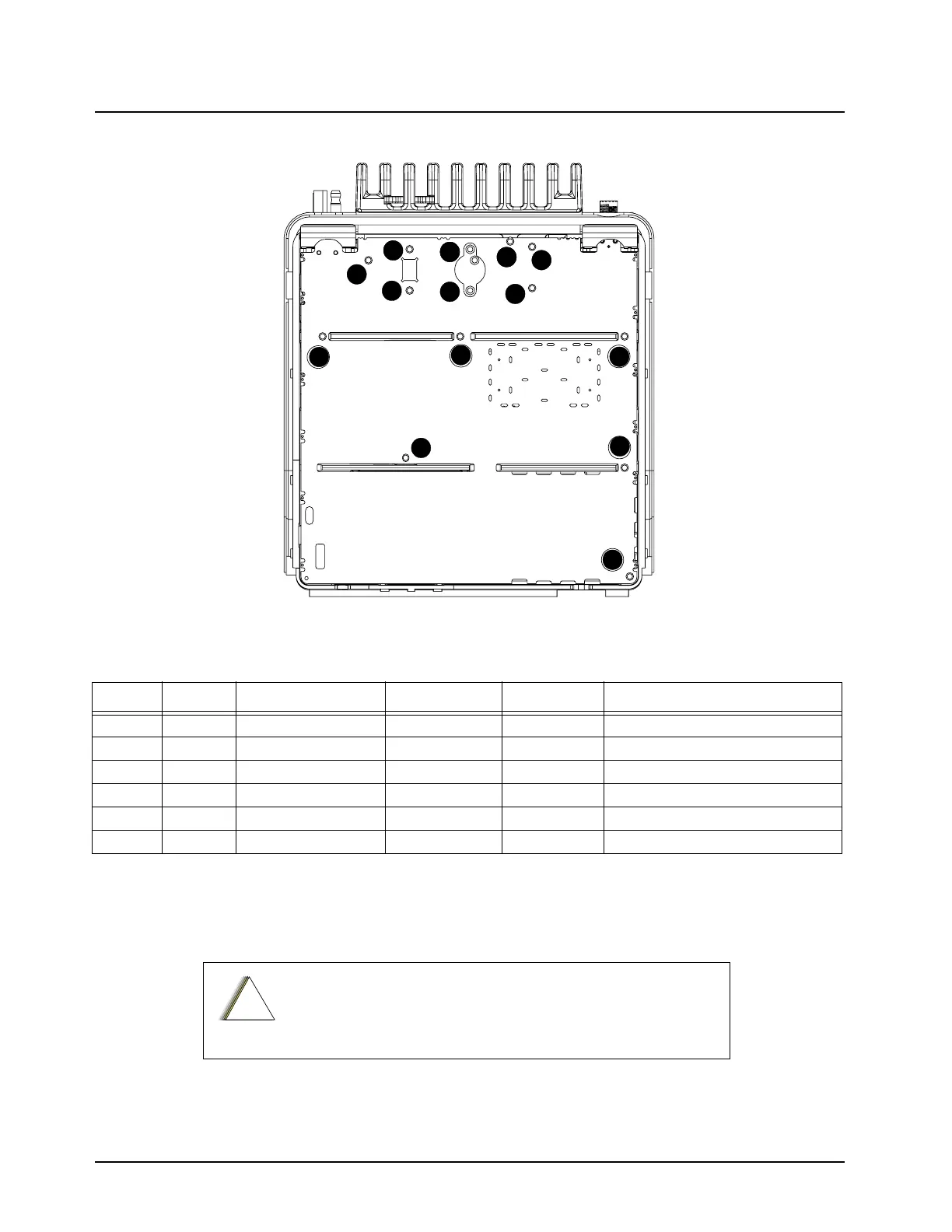

Figure 5-17. 40W UHF Torque sequence
1. On Low Power Models: Install the Cavity Shield and press down until it locks on the chassis
tabs.
Step Number Screw P/N Bit Torque Notes
1 9 0310907A20 Torx T10 - Start Only
2 - - - Place Connector Clips
3 1-2 0386265A01 Torx T8 8 IN-lb
4 3-11 0310907A20 Torx T10 8 IN-lb Number 9 Inclusive
5 - - - Place Shield and Clips
6 12-14 0310907A20 Torx T10 8 IN-lb
Table 5-1. 40W UHF Torque Sequence
Ensure that ALL cavity shield tabs engage properly. Failure to
do this may inhibit the top cover from engaging properly and
could damage the top cover.
1
1
2
2
13
13
7
7
6
6
4
1
4
9
9
3
3
2
5
11
11
10
10
8
8
12
12
14
14
!
a u t i o
