68P81083C20-D December 6, 2004
Disassembly & Reassembly and Replacement Procedures: Disassembly to Transceiver Board Level

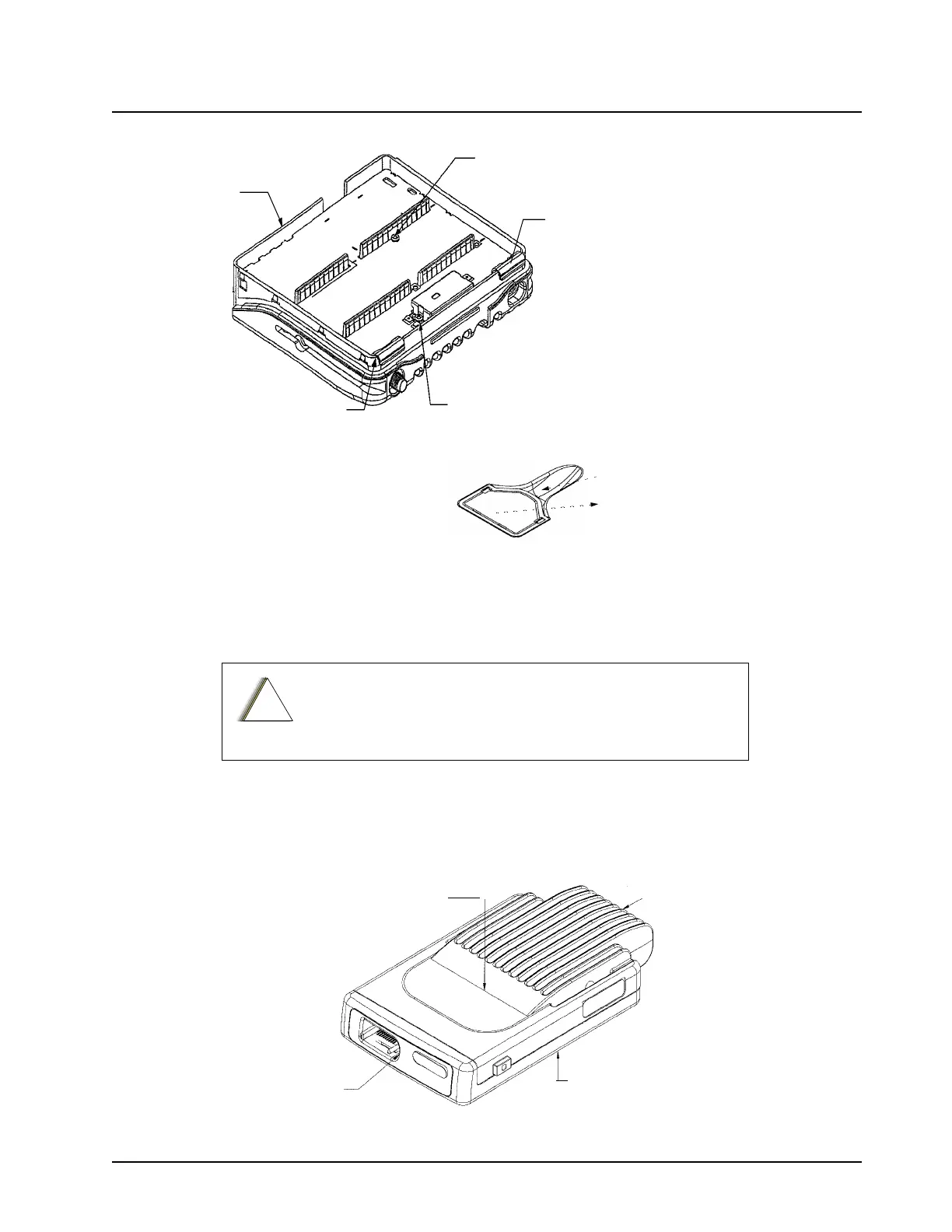

Figure 5-8. Removing the Transceiver Board (800 MHz and 900 MHz only)
Disassembly to Transceiver Board Level High Power Models
Remove the Bottom Cover
1. Disconnect the Remote Mount Cable by squeezing the top and bottom of the connector
together, disengaging the bottom snap then the top, and pulling straight out.
2. Flip the unit over so that the Bottom Cover is facing up.
Figure 5-9. Direction Conventions
DO NOT attempt to disassemble the radio without first
referring to the CMOS Precautions paragraph on page 2-2 in
the Maintenance section.
Board Holding Screw
(To be removed last)
PA Holding Screws (2)
Antenna Connector
Retaining Clip
Power Connector
Retaining Clip
Front
Accessory Connector Detail
2) Pull connector
straight out
1) Slide finger
under tab
!
a u t i o
Top
BottomFront
Back
Top
Front
Bottom
Back
To Next Page
