MTS Systems FlexTest IIm User Manual

Installing the 493.10 Chassis (FTGT)
MTS 793 Controller Hardware Installation
39
AC grounding The AC power ground is through the power cord. The power cord
must be plugged into both the chassis and the power source for proper
grounding.
Proper grounding is required for safe operation.
It is also required to meet EMC emission and susceptibility requirements.
Power All equipment related to the chassis should be connected on the same
fused power circuit.
• The power supply can accept single-phase voltages within 90–264
V AC at frequencies between
47–63 Hz.
• The maximum continuous power usage is approximately 1000 W.
The current draw depends on the local voltage supply. A 15 amp
line should be adequate for the chassis and the computer.
• The power supply automatically selects the proper voltage range
and line frequency.
Chassis
ground is connected
through the power cord
connector.

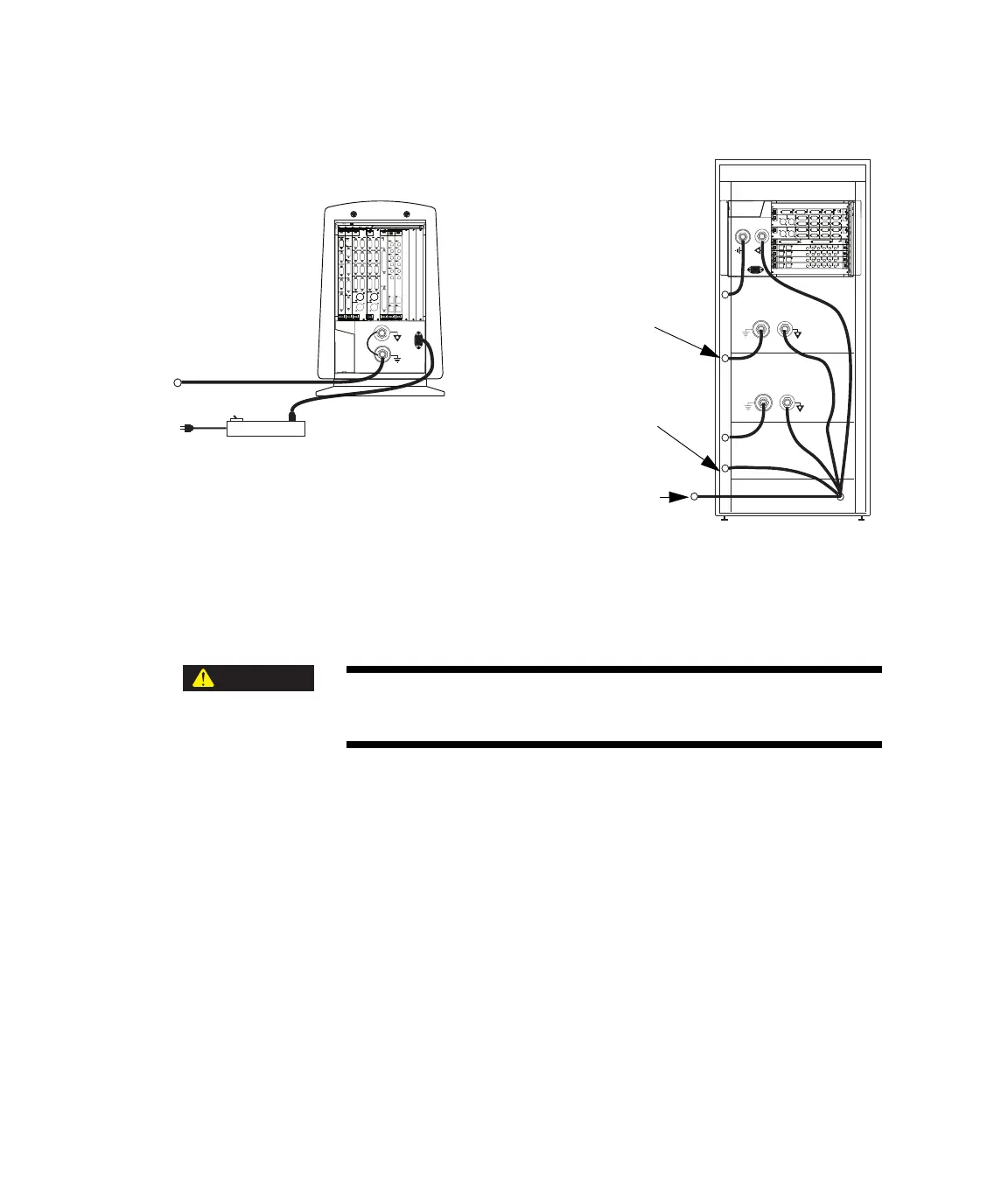

System ground cable
(PN 039-709-2xx)
connected to other
components.
Chassis ground cable
(PN 037-766-102)
connected to the vertical
conductive rail.
System ground cable
(PN 005-402-3xx) connected
to the load frame or other
components.
Signal common cable
(PN 037-766-101)
connected to the power
panel.
Standalone
Configuration
Console
Configuration
CAUTION
