4 Basic Operation
4 - 32

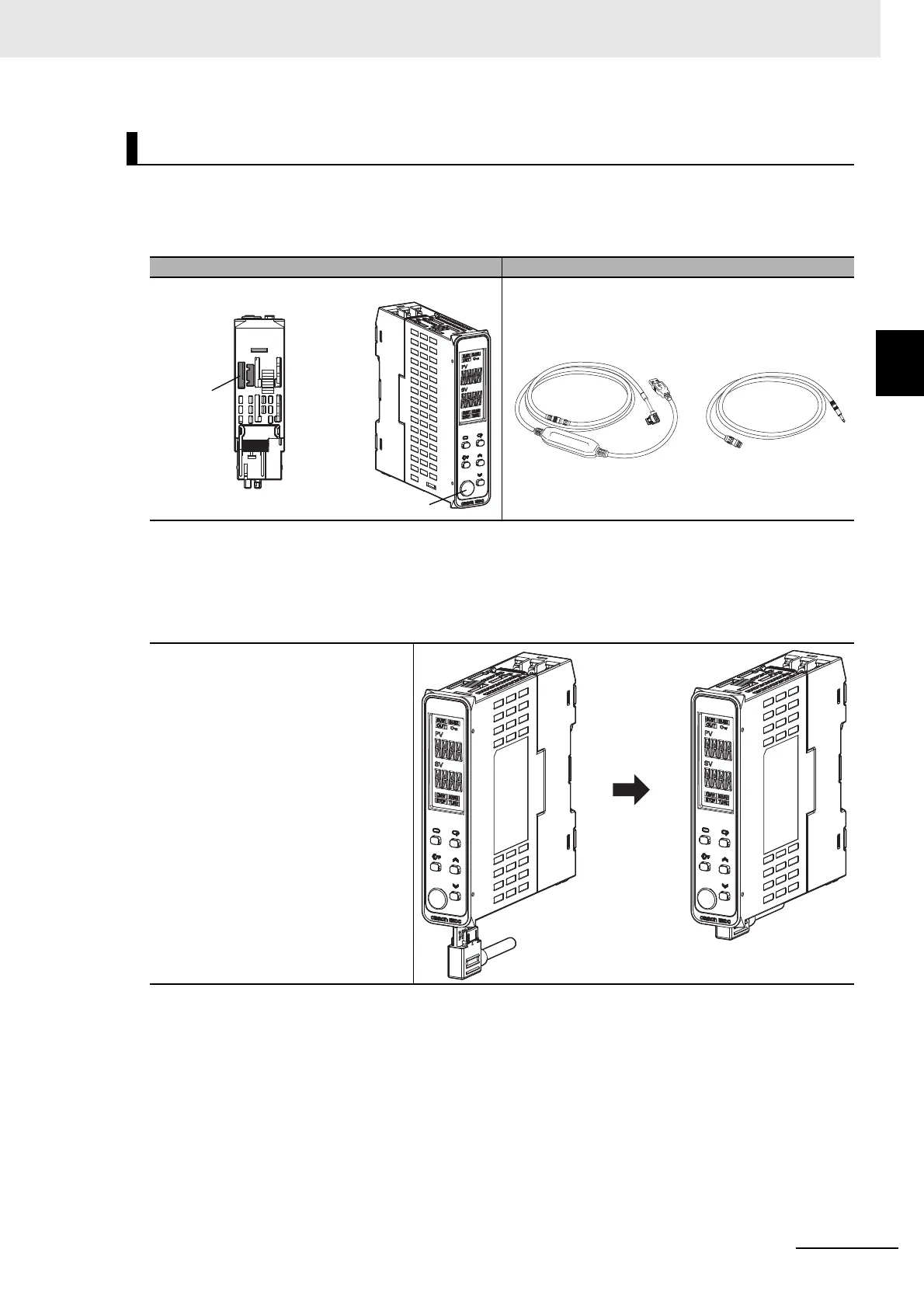

E5@C-T Digital Temperature Controllers User’s Manual (H185)
After you set the parameters related to the initial program settings, set the parameter to create the pro-
gram. The setting flows for program-related parameters are given below.
z Initial Program-related Settings
z Creating the Program
4-7-3 Setting Flow for Program-related Settings
Å@Å@
(for rate of rise programming)
Set the Program Time Unit parameter.
Set the Time Unit of Ramp Rate parameter.
Initial Setting Level
Set the Startup Operation parameter.
Set the Operation End Operation parameter.
Set the Reset Operation parameter.
Set the Step Time/Rate of Rise Programming parameter.
Set the SP Mode parameter.
Adjustment Level
(for rate of rise programming)
Set the Program Number parameter.
Set the Number of Segments Used parameter.
Set the segments.
Program Setting Level
Set the segment formats (for segments 0 to 31).
Set the segment SPs (for segments 0 to 31).
Set the segment times (for segments 0 to 31).
Set the segment slopes (for segments 0 to 31).
Set the program.
Set the PID Set No. parameter.
Set the Alarm Value parameter.
Set the Segment Number parameter.
(for rate of rise programming)
