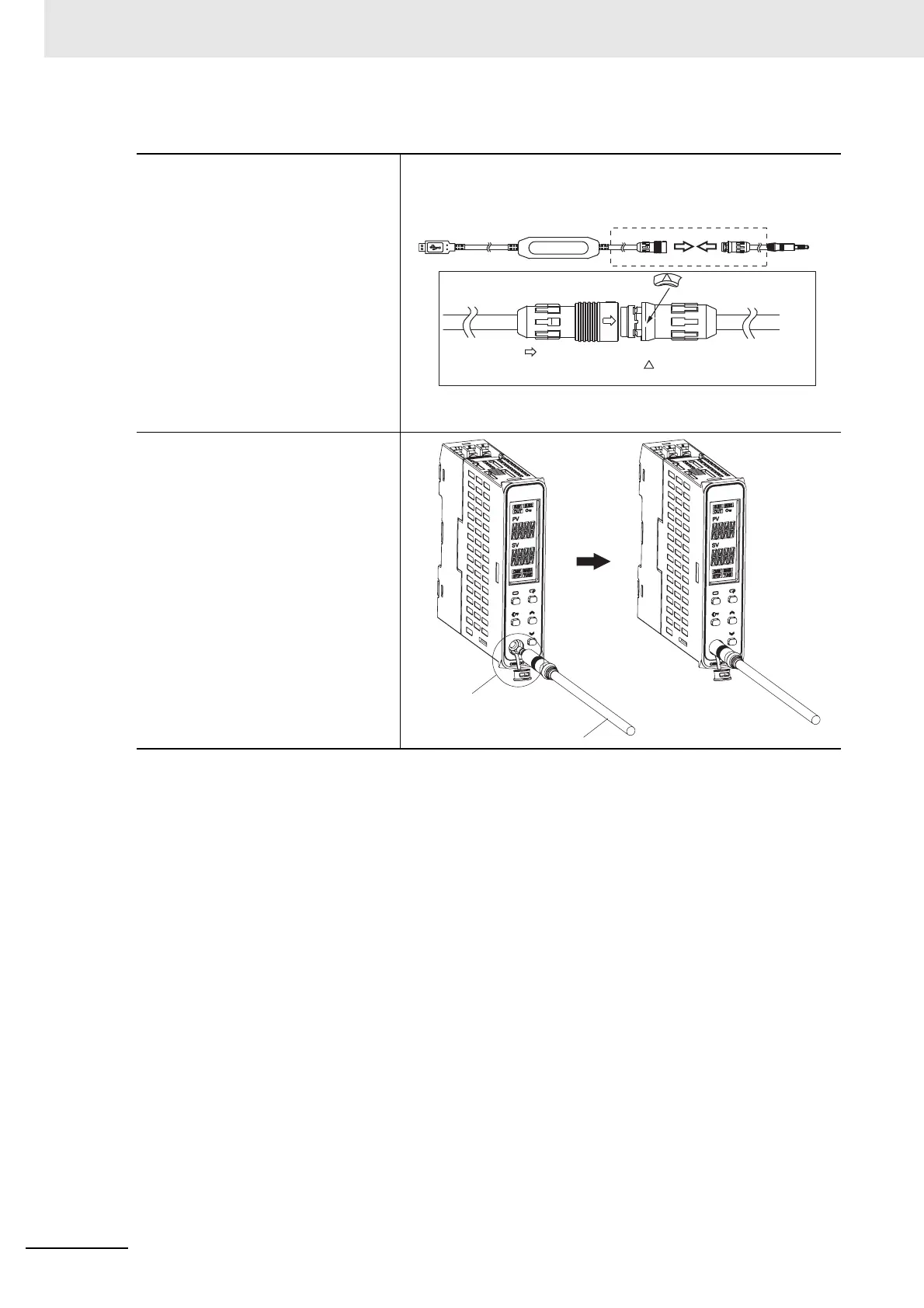

Omron E5*C Series User Manual

4 - 33
4 Basic Operation
E5@C-T Digital Temperature Controllers User’s Manual (H185)
4-7 Setting Programs
4
4-7-4 Making the Initial Program-related Settings
The parameter setting procedures for the example in 4-2 Initial Setup Examples through Starting Pro-
gram Operation are given starting on the next page.
Set the following parameters before you create the program.
Set the Program Time Unit parameter.
• Program Time Unit
Set the Step Time/Rate of Rise Programming parameter
(i.e., the program setting method).
• Step Time/Rate of Rise Programming
Set the Time Unit of Ramp Rate parameter (for rate of
rise programming).
• Time Unit of Ramp Rate
Set the Reset Operation parameter.
• Reset Operation
Set the Startup Operation parameter.
• Startup Operation
Set the Operation End Operation parameter.
• Operation End Operation
Set the SP Mode parameter (when the reset operation
is set to stop control).
• SP Mode
This parameter sets the time unit for execution of the program.
z Related Parameters
z Setting Example
4-7-4 Making the Initial Program-related Settings
Setting the Program Time Unit Parameter
Parameter name Display Setting range Default Level
Program Time Unit t-u h-m: Hours and minutes
m-s: Minutes and seconds
h-m Initial Setting Level
The following example shows how to set hours and minutes.
Operating Procedure
1 Press the M Key several times in the Initial Setting Level to
select the Program Time Unit parameter.
Initial Setting Level
2 Press the U or D Key to set hours and minutes
The default is hours and minutes.
Set the Program Time Unit parameter.
Set the Time Unit of Ramp Rate parameter.
Initial Setting Level
Set the Startup Operation parameter.
Set the Operation End Operation parameter.
Set the Reset Operation parameter.
Set the Step Time/Rate of Rise Programming parameter.
Set the SP Mode parameter.
Adjustment Level
h-m
t-u
Program
Time Unit
h-m
t-u
