Omron E5*C Series User Manual

5 - 61
5 Advanced Operations
E5@C-T Digital Temperature Controllers User’s Manual (H185)
5-15 Program-related Functions
5
5-15-11 Stage Outputs
A pulse is output for one second from the beginning of each segment.
• You can assign this function to either an auxiliary output or a control output.
Note If the power supply is turned OFF, a software reset is performed with an operation command
through communications, or the Initial Setting Level is entered while the stage output is ON, the
stage output will turn OFF.
z Related Parameters

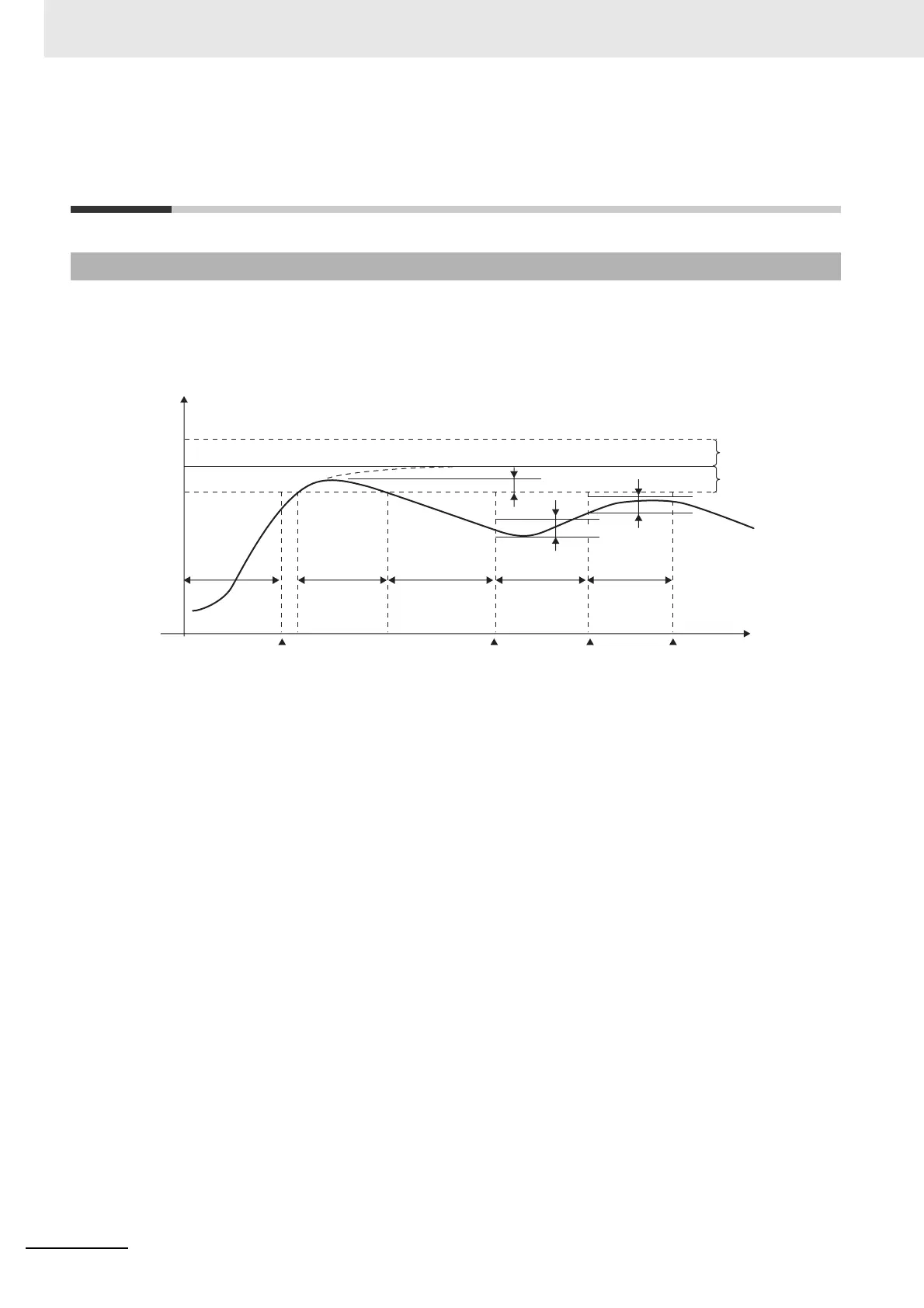

With the PV start operation, program operation starts at the first SP in the program pattern that matches
the PV (i.e., in the middle of the program).
For example, if you reset program operation and want to restart immediately from the middle of the pro-
gram, you can use this operation to save time in comparison with starting operation from the beginning
of the program.
• To use the PV start operation, set the PV Start parameter (Initial Setting Level) to a PV start.
However, if the Reset Operation parameter is set to stop control and step time programming is set,
5-15-11 Stage Outputs
Parameter
name
Display Setting range Default Level
Auxiliary
Output 1 to 4
Assignment or
Control Output
1 to 2
Assignment
sub1
sub2
sub3
sub4
out1
out2
stg: Stage output
Auxiliary Output
1 Assignment:
alm1*
Auxiliary Output
2 Assignment:
alm2*
Auxiliary Output
3 Assignment:
alm3*
Auxiliary Output
4 Assignment:
alm4*
Control Output 1
Assignment: o*
Control Output 2
Assignment:
none*
Advanced
Function Setting
Level
5-15-12 PV Start
Time
Stage
output
1 s
SP
