Omron NX-EC0112 User Manual

6 Incremental Encoder Input Units
6 - 56
NX-series Position Interface Units User’s Manual (W524)

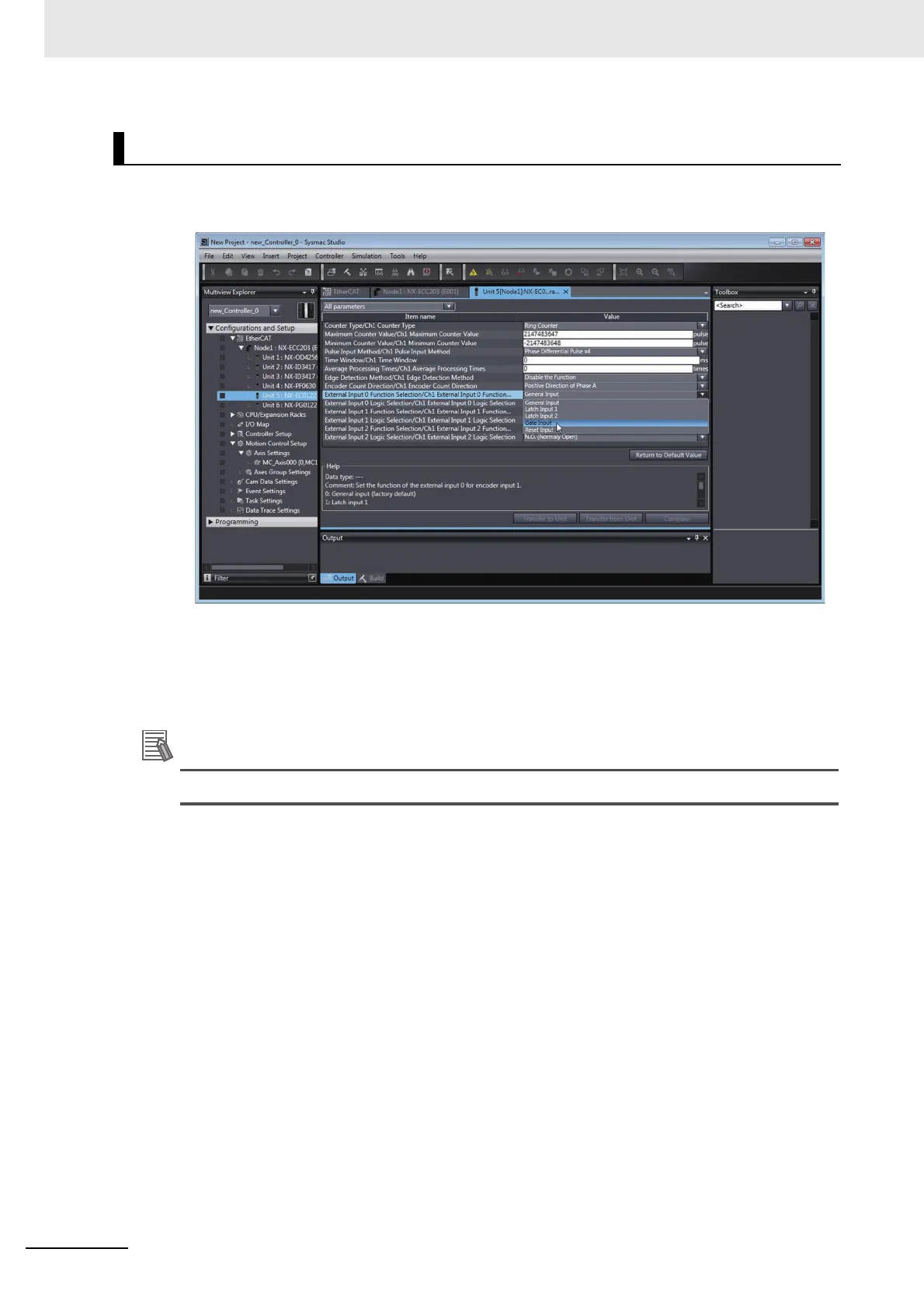

1 Double-click the Incremental Encoder Input Unit in the Multiview Explorer.
The following tab page is displayed.
2 Set the External Input 0 Function Selection, External Input 1 Function Selection, or External
Input 2 Function Selection to a gate input.
Also set the logic for the external input you selected.
Additional Information
The NX-EC0212 and NX-EC0222 do not have any external inputs.
Setting with the Sysmac Studio
