A-1 Dimensions
A
A-1 Dimensions

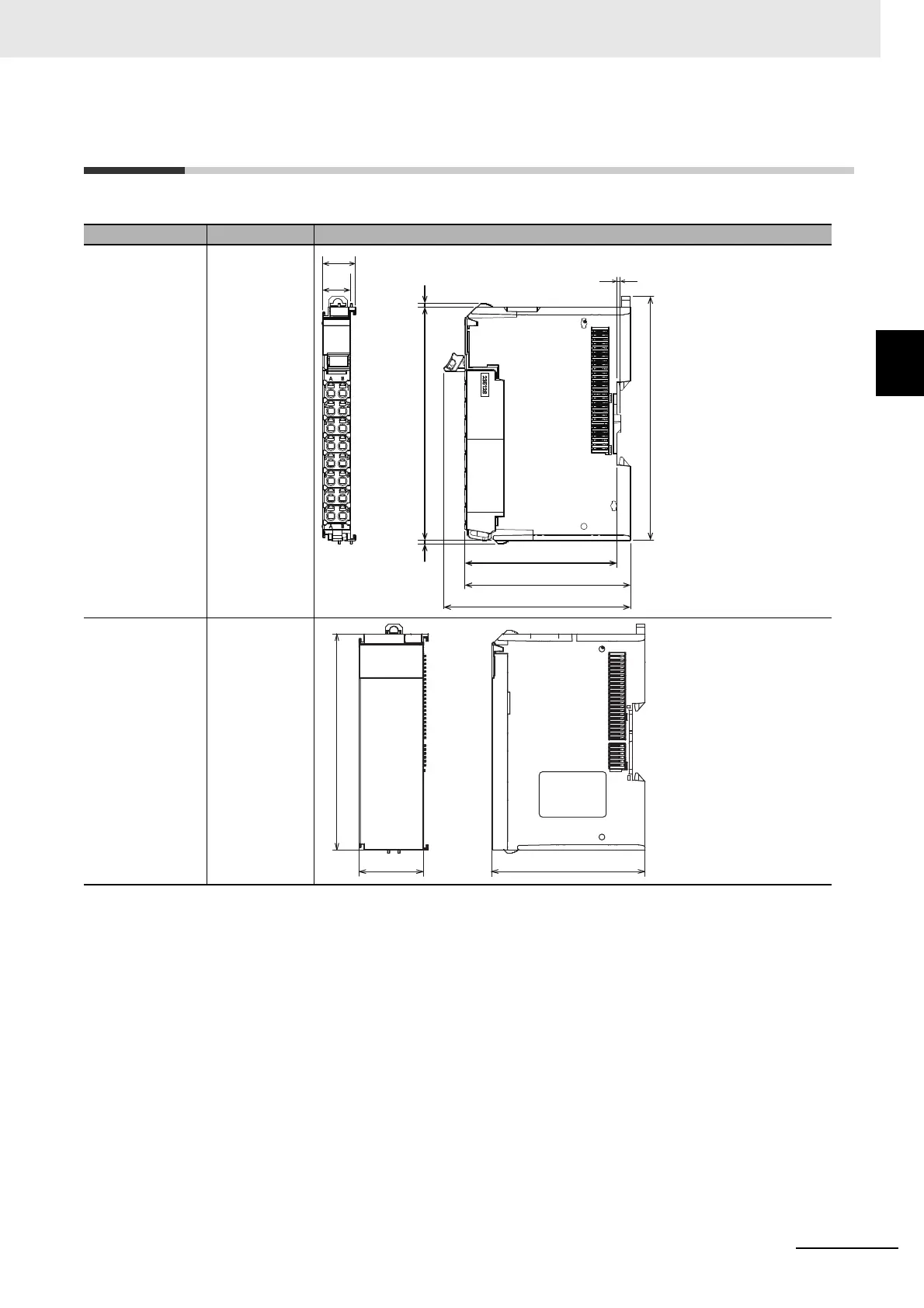

The dimensions of the Safety Control Units are given in the following table.
*1. The dimension is 1.35 mm for Units with lot numbers through December 2014.
Unit width Models Dimensions (mm)
12 mm NX-SIH400
NX-SID800
NX-SOH200
NX-SOD400
30 mm NX-SL3300
NX-SL3500
80.1
71
104.5
100
14.1
65.2
12.0
1.5 1.5
0.55
*1
100
30
71
