2.1.1.2 Direct In Line (DIL)
Description
Provides automatic direction of an incoming trunk call to a preprogrammed destination. Each trunk has a
destination for each time mode (day/lunch/break/night).

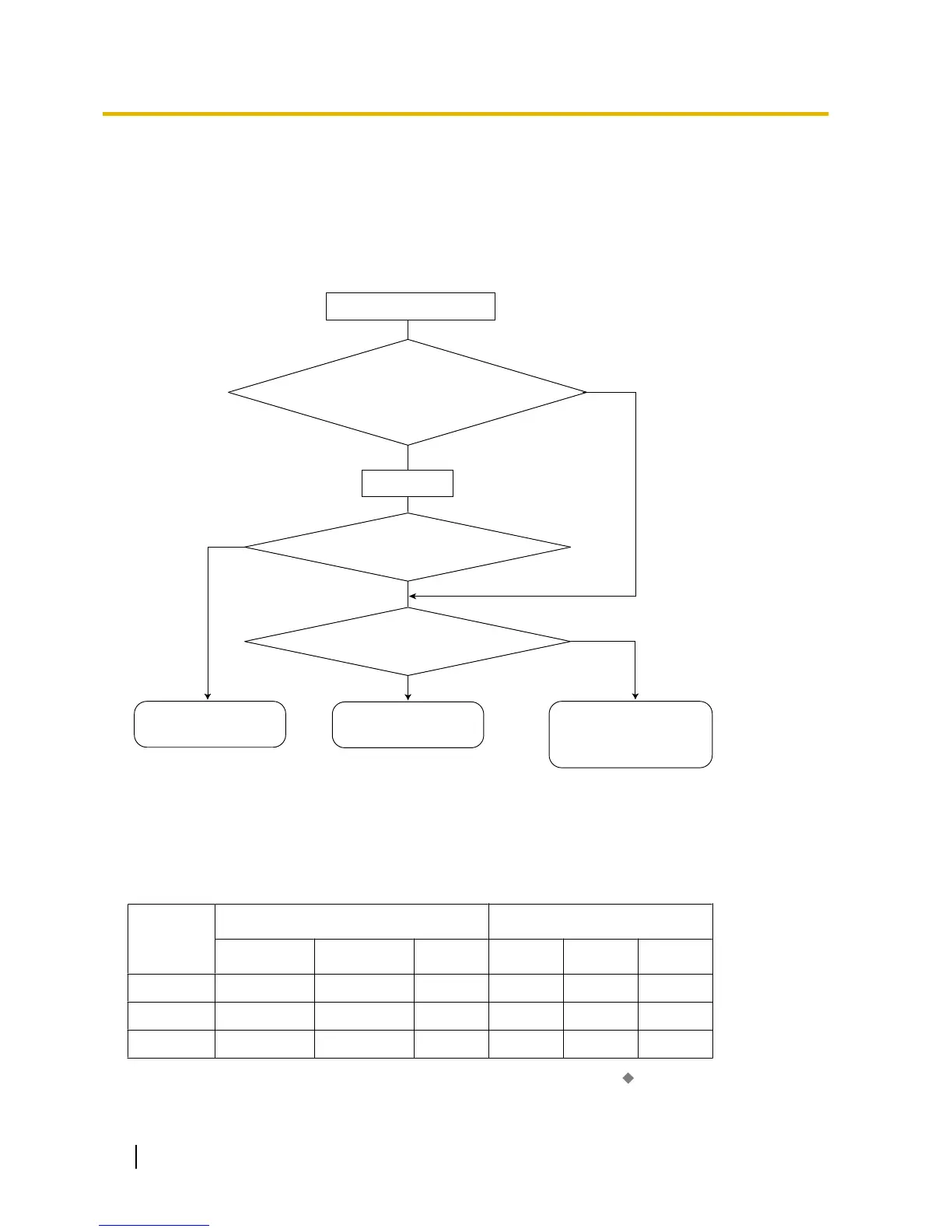

[Method Flowchart]
A trunk call is received.
CLI works.
Yes
Yes
No
Does the call have its CLI*
information and is CLI mode enabled
for the trunk and the time mode?
No
Is the CLI destination
assigned?
The call is routed to the
DIL destination.
The call is routed to the
CLI destination.
The call is routed to the
operator (Intercept Routing
—No Destination).
Yes
Is the DIL destination of
the time mode assigned?
No
*: Calling Line Identification (CLI) Distribution:
If the CLI routing is enabled and the caller's identification number is assigned in the Caller ID
Table, the call will not be routed to the DIL destination, but routed to the CLI destination.
[Programming Example of DIL Table]
The table can be programmed for each trunk.
Trunk No.
CLI Destination
*1
Day Lunch ... Day Lunch ...
01 Enable Disable ... 101 100 ...
02 Enable Disable ... 102 100 ...
: : : : : : :
*1
® 18.2 PBX Configuration—[10-2] CO & Incoming Call—DIL Table & Port Settings—DIL— DIL Destination—Day, Lunch, Break,
Night
