PIAGGIO 500 cc User Manual

Fuel injection
9 - 16

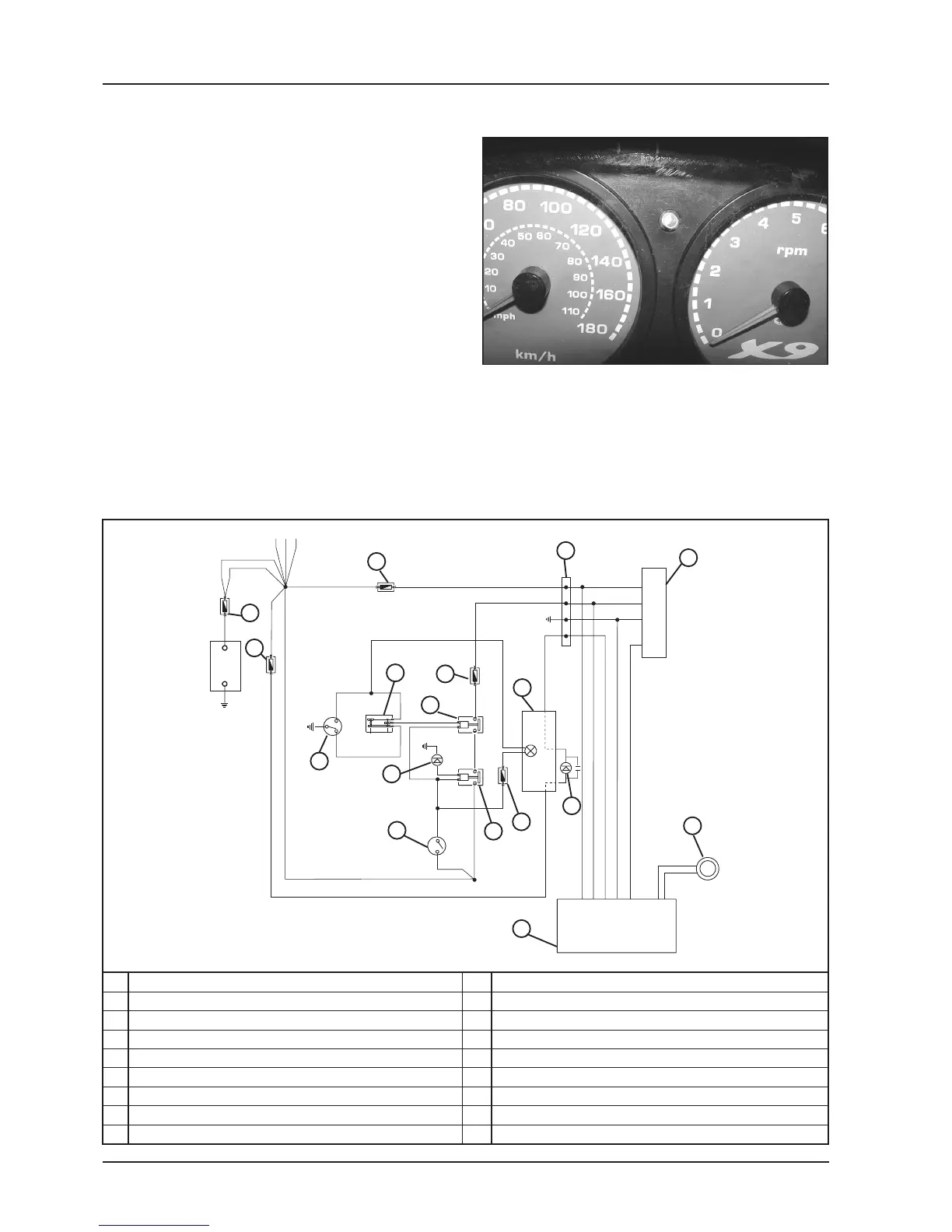

IMMOBILIZER SYSTEM
The EMS system is integrated with an immobilizer-type
anti-theft device.
The functions achieved are:
- Starter initialization via key recognition
- Blinking deterrent light
System components
The system is composed of:
- EMS system control unit
- decoder
- aerial
- master key (red)
- service key (black)
- diagnostic and deterrent LED
1 30A MAIN FUSE 10 DIODE
2 7.5A FUSE 11 7.5A FUSE
3 3A FUSE 12 DIGITAL INSTRUMENT
4 5A FUSE 13 IMMOBILIZ . LED
5 STAND SWITCH 14 DECODER
6 EMERGENCY SWITCH 15 AERIAL
7 KEY SWITCH 16 ECU CONTROL UNIT
8 STOP ELECTROMAGNETIC SWITCH 17 VEHICLE SYSTEM - INJECTION SYSTEM CONNECTOR
9 MAIN ELECTROMAGNETIC SWITCH
14
10
15
DOWN
UP
OFF
RUN
86
85
30
87
86
85
30
87
2
8
3
6
4
26
17
23
16
5
12
2
1
3
4
6
7
11
16
17
+
-
8
9
13
