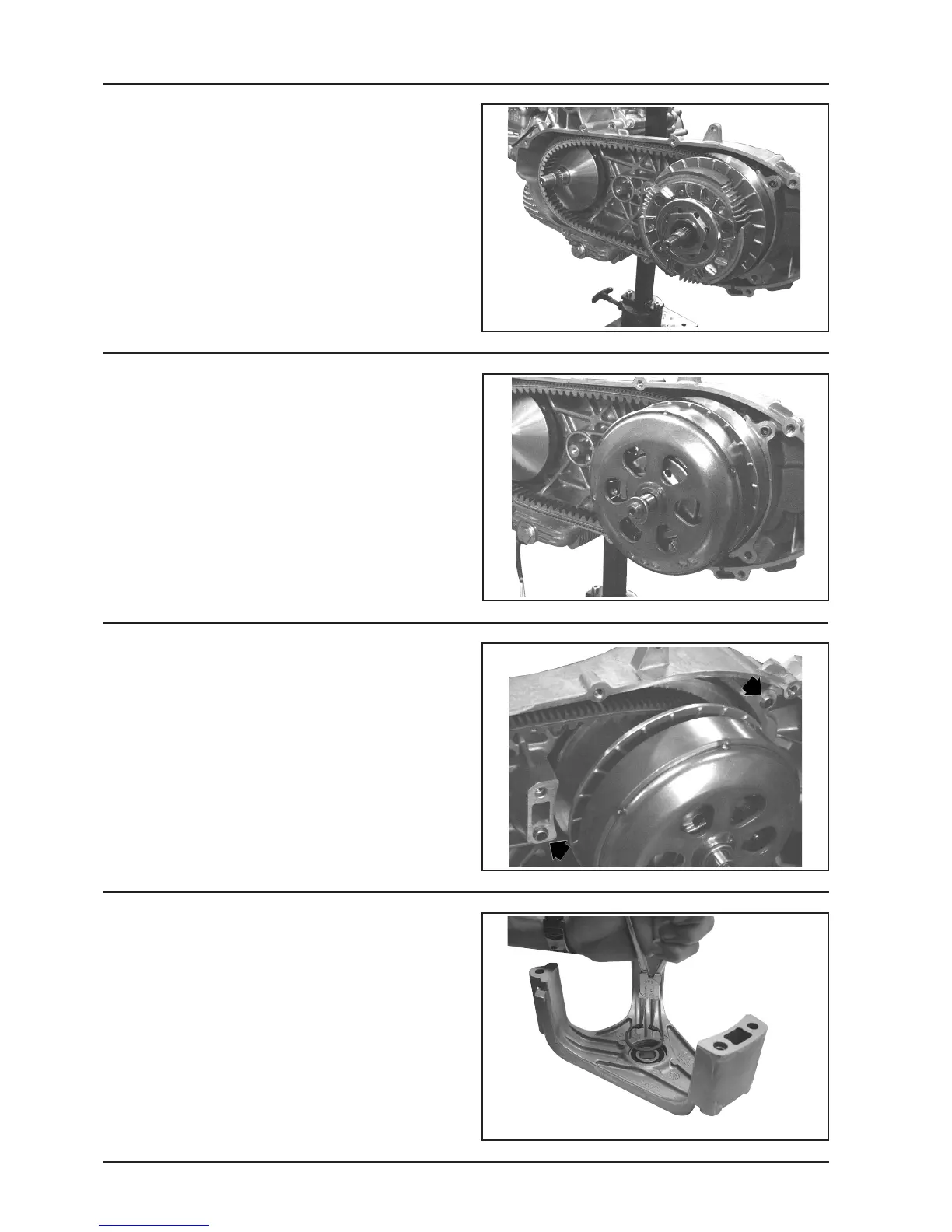

PIAGGIO 500 cc - Driven Pulley Unit Assembly; Housing Assembly; Driven Pulley Axle Support Assembly; Driven Pulley Axle Support Bearings Disassembly

3 - 12
Automatic transmission
Driven pulley axle support assembly
- Make sure the 2 centering dowels are properly fitted
in the crankcase.
05_047
05_045
Driven pulley unit assembly
- Fit the driven pulley unit and relevant belt.
Housing assembly
- Fit the housing and the spacer
05_046
05_037
Driven pulley axle support bearings disassembly
- Check that the bearing turns freely. Replace the
bearing if necessary.
- Remove the snap ring.
