6 - 10

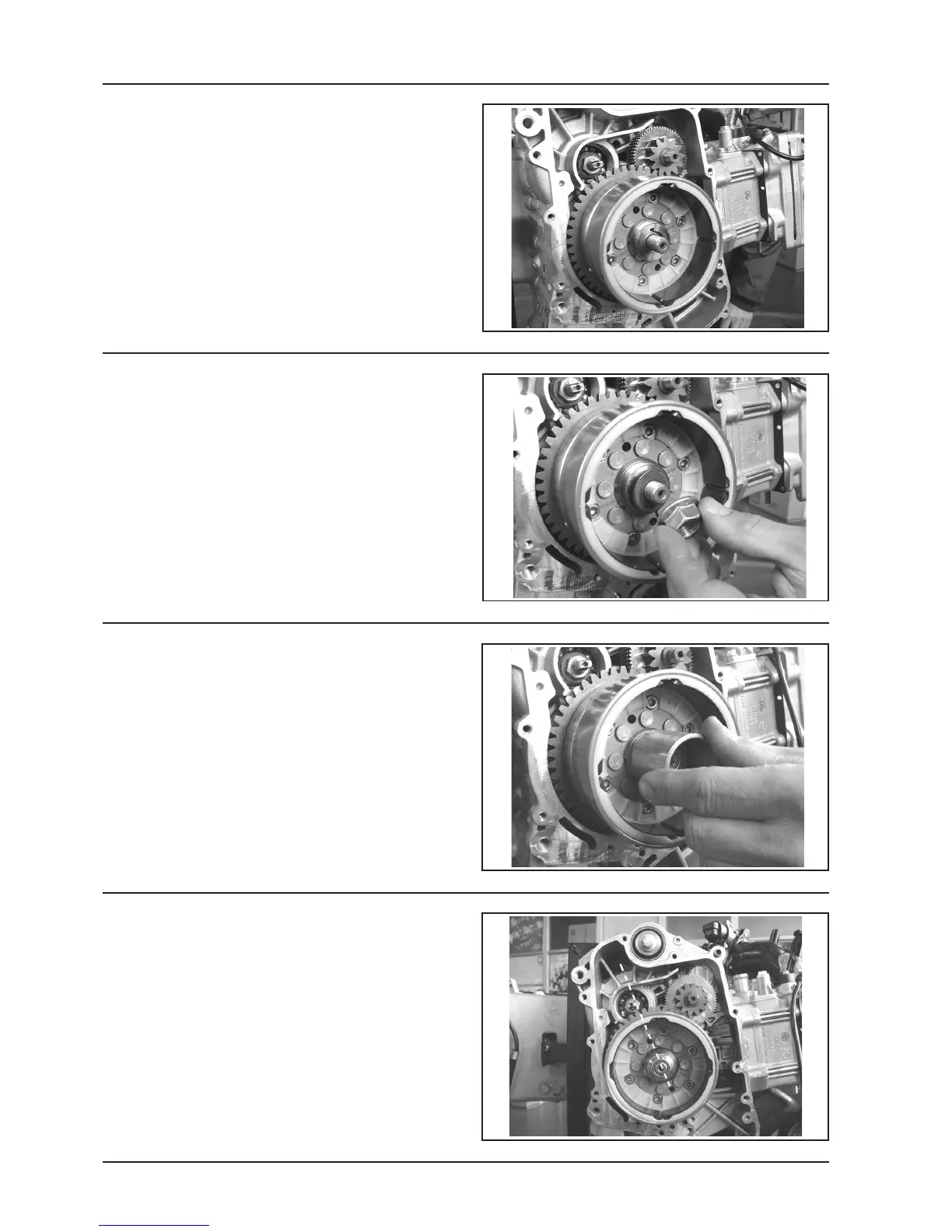

Magneto flywheel assembly on engine
- Insert the key on the driving shaft
- Assemble the magneto flywheel making sure to cor-
rectly insert the key. At the same time, mesh the
torque limiter gear with the starting ring gear.
- Insert the washer and the nut on the driving shaft.
05_151
05_152
- Fully screw the flywheel lock tool guide bush, and
unscrew it by 1/4 of a turn.
N.B.: Failure to observe the above procedure will cause
the guide locking on the flywheel.
Specific tool:
Flywheel lock tool 020472Y
05_130
05_131
- Align the 2 magneto flywheel holes with the housing
on the crankcase intended for the specific tool.
Flywheel and starting system
