6 - 11
6

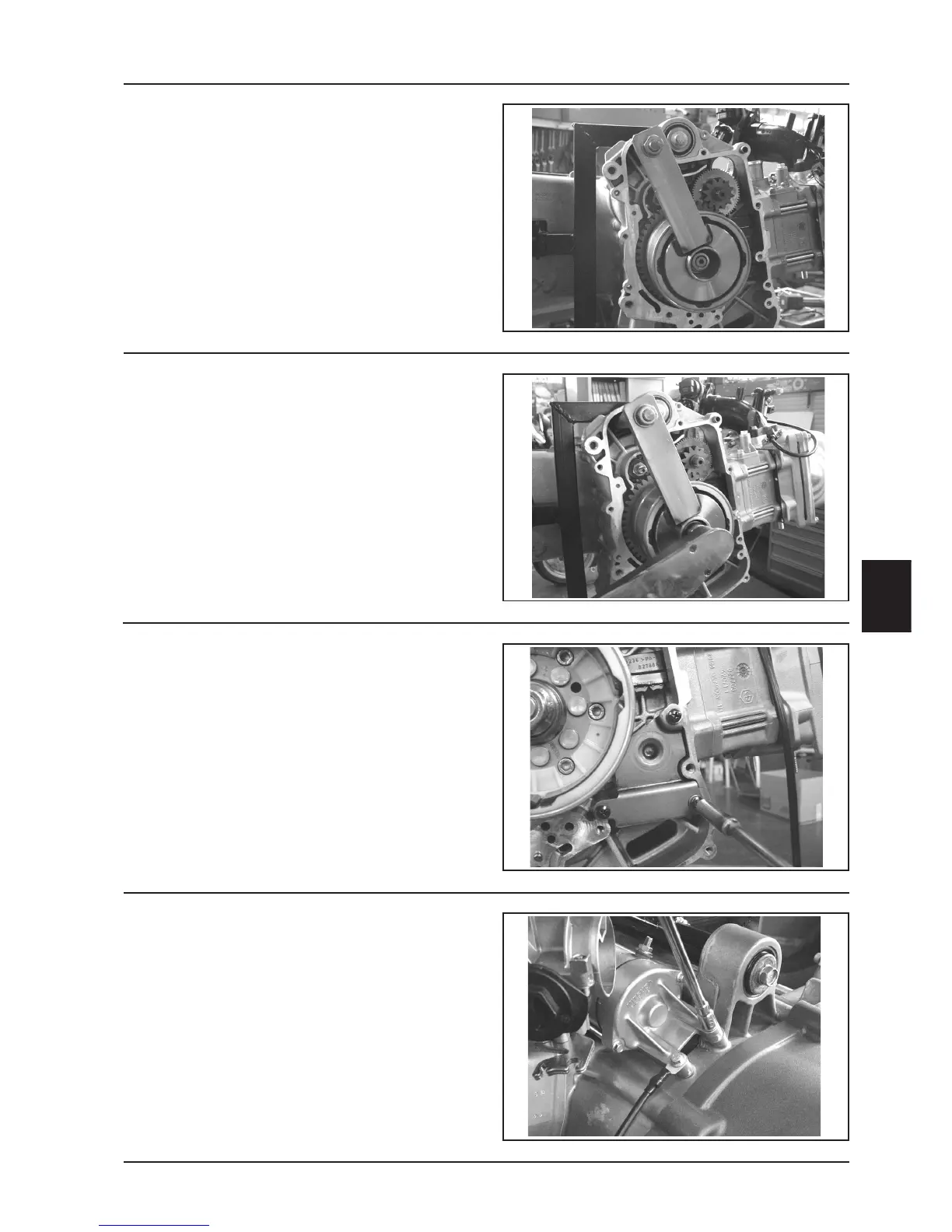

- Insert the specific tool making sure to perfectly fit the
pins.
Specific tool:
Flywheel lock tool 020472Y
- Tighten the flywheel lock nut to the prescribed torque.
Tightening torque:
Flywheel lock nut: 115 - 120 N·m
05_132
05_153
- Assemble the chain guide shoe stop plate and tighten
the 3 screws to the prescribed torque.
Tightening torque:
Chain guide shoe plate fixing screws: 3 - 4 N·m
05_128
05_129
Starting motor assembly
- Check the O ring condition and oil it.
- Fit the starting motor.
- Fix the earth cable.
- Tighten the 2 fixing screws to the prescribed torque.
Tightening torque:
Starting motor fixing screws: 11 - 13 N·m
Flywheel and starting system
