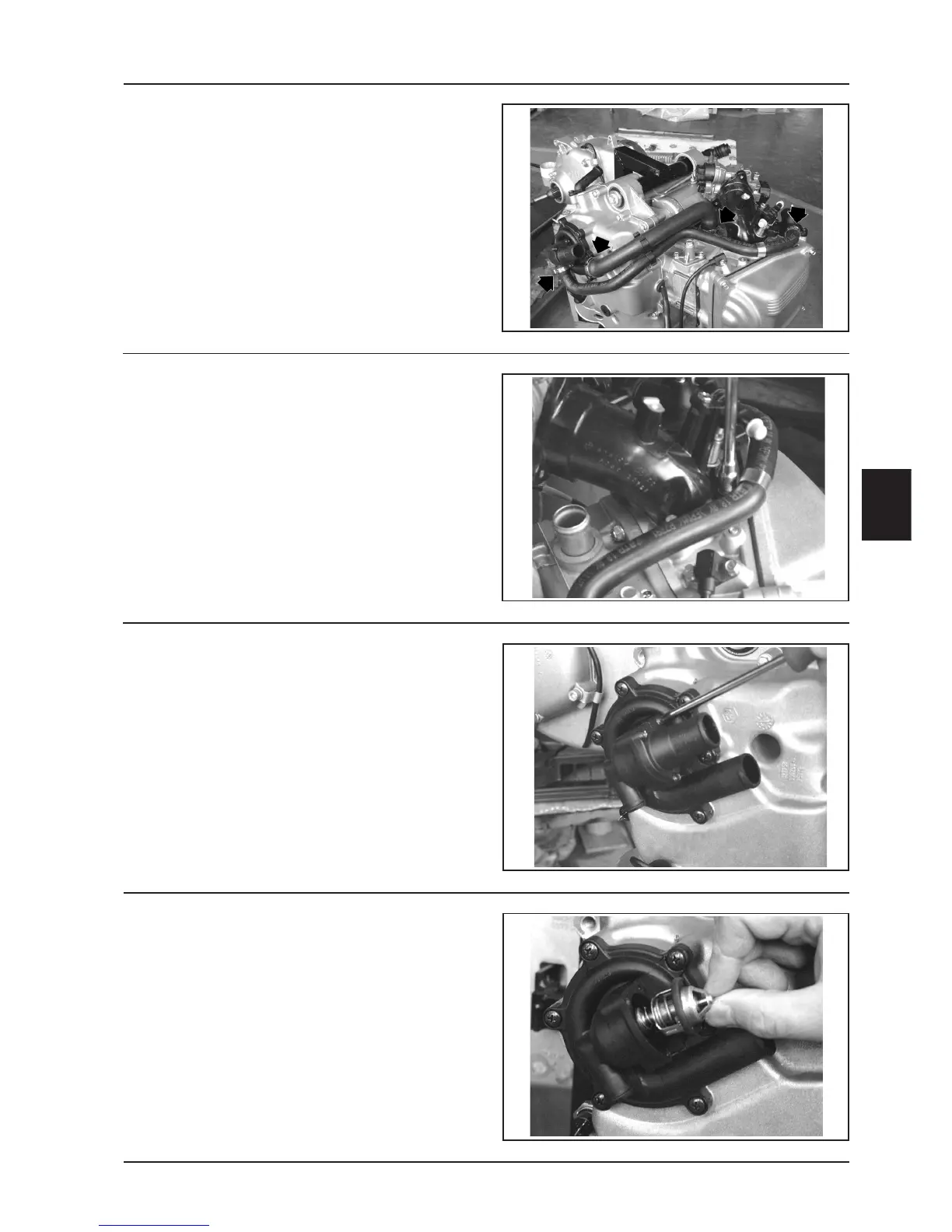

- Disassemble the flywheel cover by removing the 2
cooling system sleeves
- Remove the 4 clamps shown in the figure
N.B.: The clamps must be replaced. Remove the clamps
by opening them with a screwdriver or by cutting them.
Take care not to damage the plastic unions
05_082
05_081
- Remove the cooling tube bracket from the manifold
fixing.
Thermostat cover disassembly
- Unloose the 3 fixing screws and remove the thermo-
stat cover.
- Remove the thermostat.
05_083
05_084
