PIAGGIO 500 cc - Flywheel Cover Assembly on the Engine

5 - 14

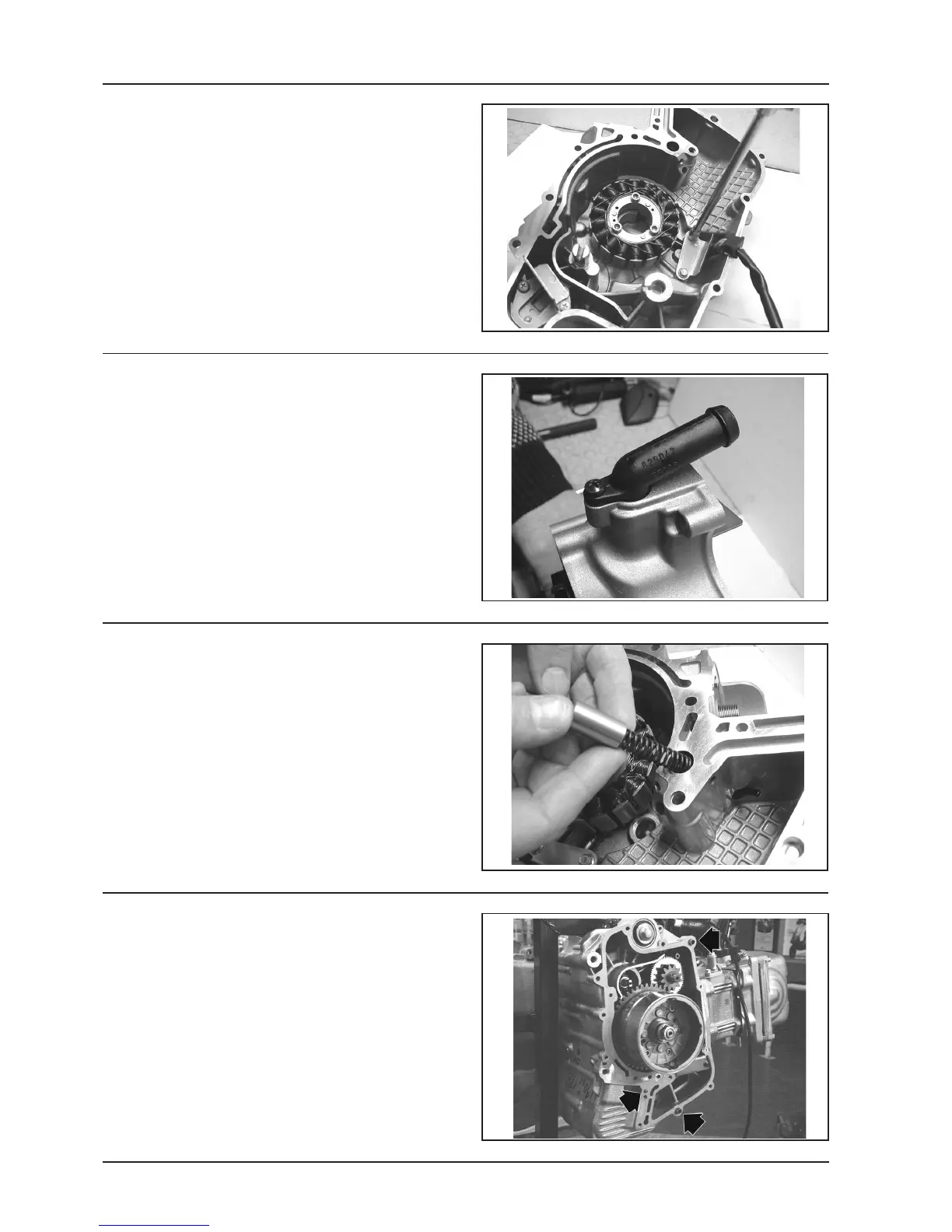

- Fit the harness guide and tighten the 2 screws to the
prescribed torque.
Tightening torque:
Harness guide fixing screws: 3 - 4 N·m
05_091
- Temporarily fit the valve timing control hole plug and
the engine oil dipstick
- Fit the blow-by recovery duct with a new O ring.
- Tighten the screw to the prescribed torque.
Tightening torque:
Blow-by recovery duct fixing screws: 3 - 4 N·m
05_123
05_122
- Fit the spring and the bypass piston on the flywheel
cover.
N.B.: Lubricate the bypass valve.
Flywheel cover assembly on the engine
- Fit a new gasket on the engine crankcase
- Make sure the 3 centering dowels are there.
05_124
Flywheel cover
