Automatic transmission

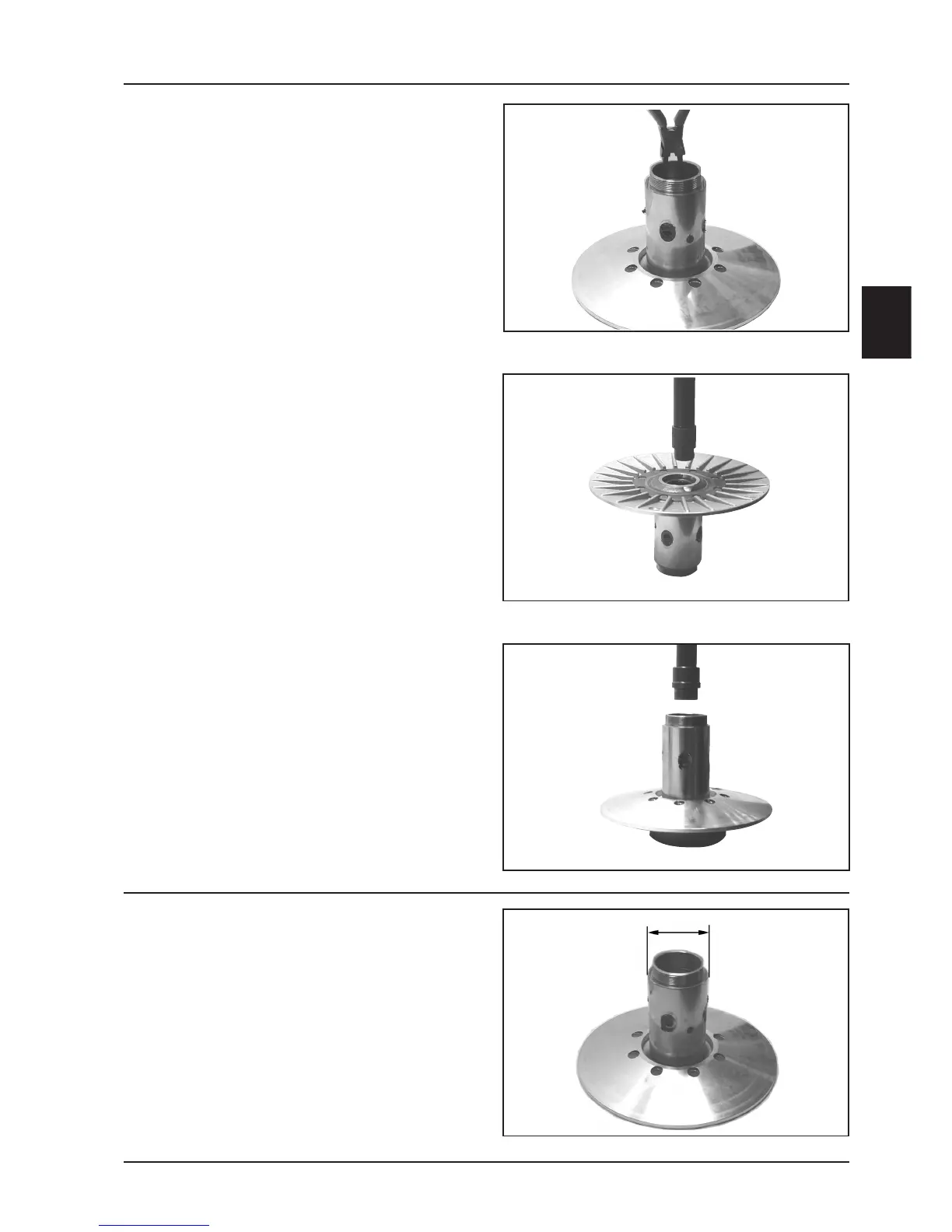

- Remove the ball bearing by inserting the specific tool
in the roller bearing.
N.B.: Hold the pulley to avoid damaging the thread.
Specific tools:
Handle 020376Y
24 mm adapter 020456Y
20 mm guide 020363Y
N.B.: If the bearings are overhauled with the driven
pulley unit assembled, make sure to support the unit
with bell 001467Y002.
05_023
- Remove the roller bearing by means of the specific
tool, supporting the fixed half pulley with the bell.
Specific tools:
Handle 020376Y
28x30 mm adapter 020375Y
25 mm guide 020364Y
Bell 001467Y002
05_025
05_024
Fixed driven half pulley
- Check the belt contact surface out for signs of wear.
- Measure the pulley bush O.D.
Minimum allowed diameter: 49.96 mm
Standard diameter: 49.965 mm
05_022
Fixed driven half pulley bearings
- Check that the bush shows no signs of wear or
damage; if necessary, replace the fixed driven half
pulley.
- Remove the stop ring with the pliers.
