PIAGGIO 500 cc User Manual

Thermal unit and timing system

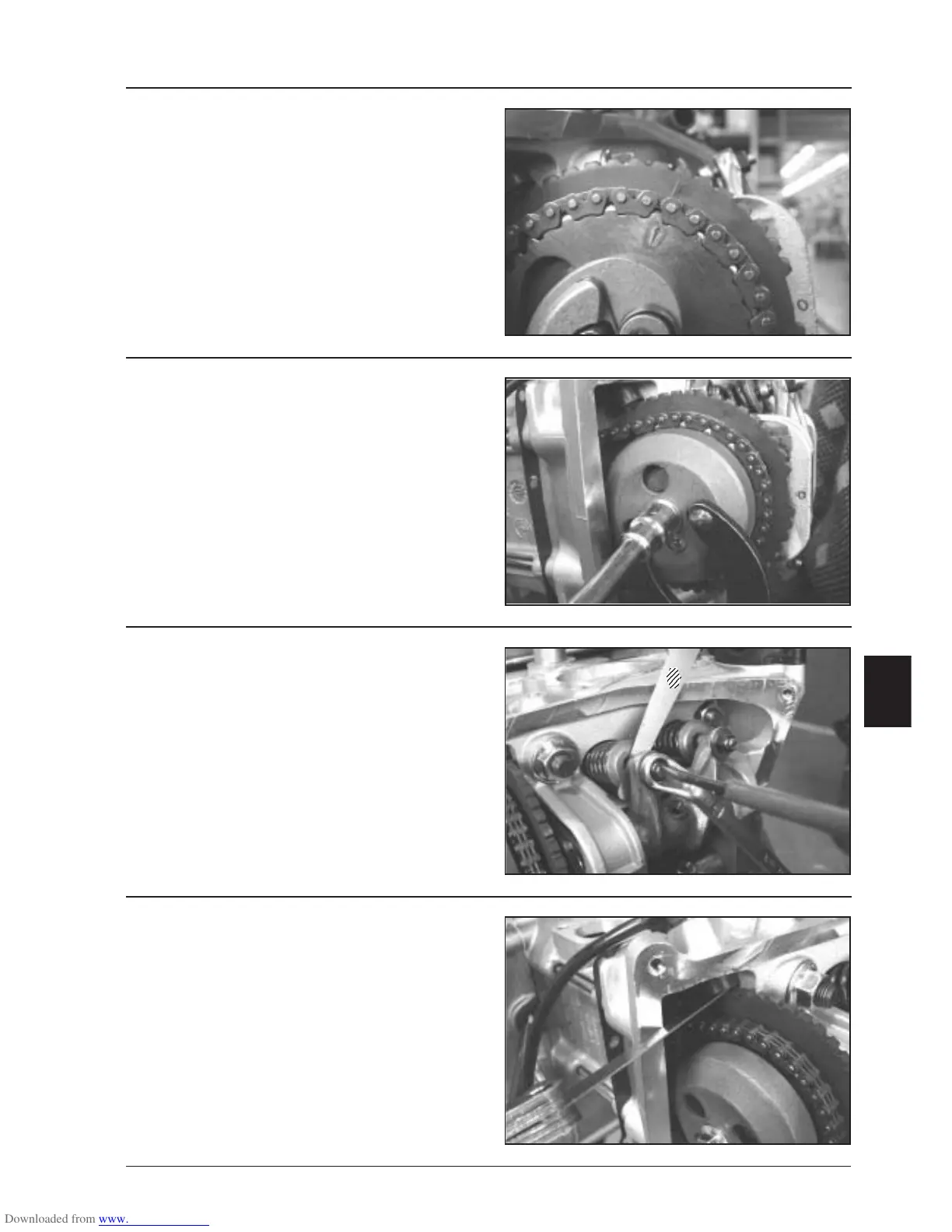

- Turn the engine. Move the reference marks to the
upper position as shown in the figure (intake end)
05_231
- Fit the valve lifter counterweight stop bell.
- Tighten the fixing screw to the prescribed torque,
using LOCTITE 242.
N.B.: The bell timing is given by the head of the
counterweight fixing screw
- Check that the decompression counterweight is free
and the returning action of the spring.
Tightening torque:
Valve lifter counterweight stop bell
fixing screws: 30 - 35 N·m
05_232
- Position the engine with the valve play adjustment
timing reference marks aligned with the head
- Check the valve-equalizer play by means of a thick-
ness gauge
Prescribed play: intake 0,20 mm
(cold engine)
exhaust 0,20 mm
(cold engine)
- If different values are measured, adjust by unloosing
the check nut and by acting on the register with a tool
as shown in the figure.
05_233
7
Checking the revs-timing sensor air gap
- Align one tooth of the phonic wheel with the revs-
timing sensor.
- Check the air gap by means of a feeler.
Standard air gap: from 0.20 to 0.70 mm
- Perform the check in 3-4 points.
05_234
7 - 27
0.15mm
0.15mm
1234
1234
1234
1234
1234
