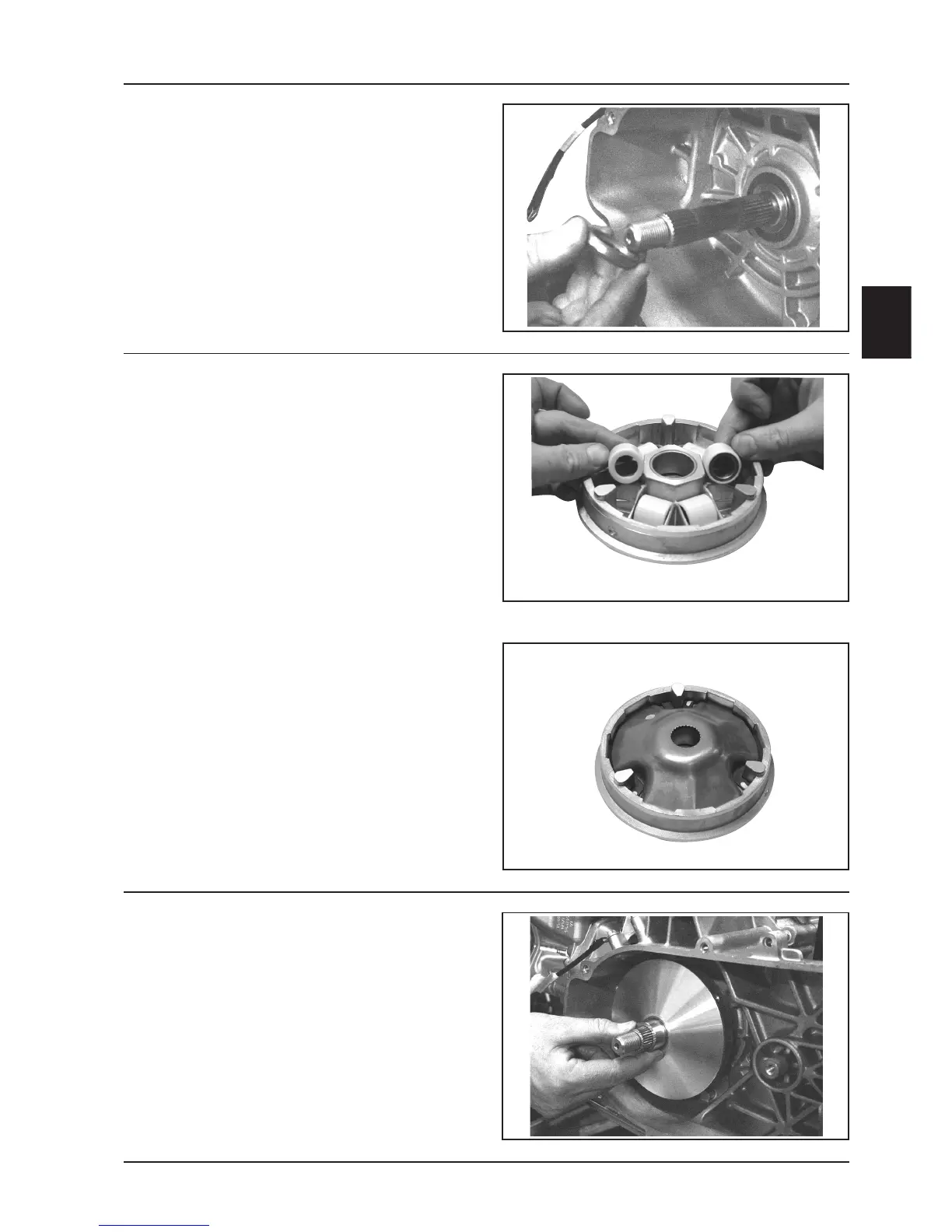

Automatic transmission
05_041
05_042
- Put the rollers in the half pulley as shown in the figure.
- The covered side must rest on the internal thrust side
of the roller housing.
Rollers housing assembly
- Fit the spacer with the internal beveling facing the
insertion side.
- Assemble the half pulley with the rollers stop plate
and the sliding shoes.
05_043
- Fit the half pulley on the driving shaft.
- Fit the spacer bush.
05_044
