PIAGGIO 500 cc - Driven Pulley Axle Support Bearing Assembly

3 - 13
3
Automatic transmission

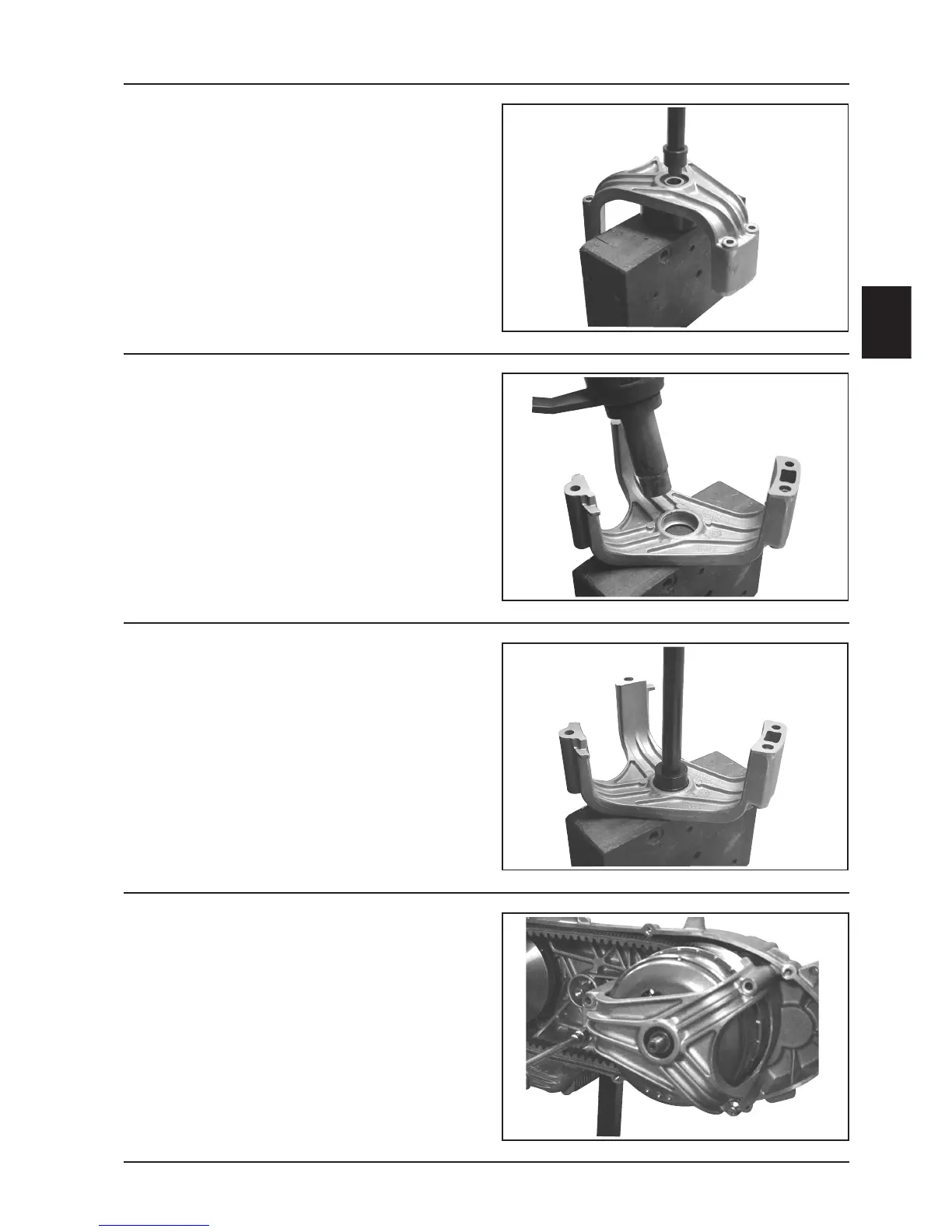

05_038
- Hold the driven pulley axle support by means of the
specific tool 001467Y002.
- Remove the bearing by means of the specific tool.
N.B.: If the bearing decay has caused the external race
to lose strength, replace the driven pulley axle support.
Specific tools:
Bell 001467Y002
Handle 020376Y
28x30 mm adapter 020375Y
17 mm guide 020439Y
Driven pulley axle support bearing assembly
- Heat the driven pulley axle support with the thermal
gun.
Specific tool:
Air heater 020151Y
05_039
- Fit the bearing on the specific tool. Grease it to
prevent it from coming out.
- Refit the new bearing by means of the specific tool.
- Refit the snap ring.
Specific tools:
Handle for drifts 020376Y
37x40 mm adapter 020358Y
17 mm guide 020439Y
05_040
- Fit the driven pulley axle support and tighten the two
lower screws.
05_048
