6 - 3
6

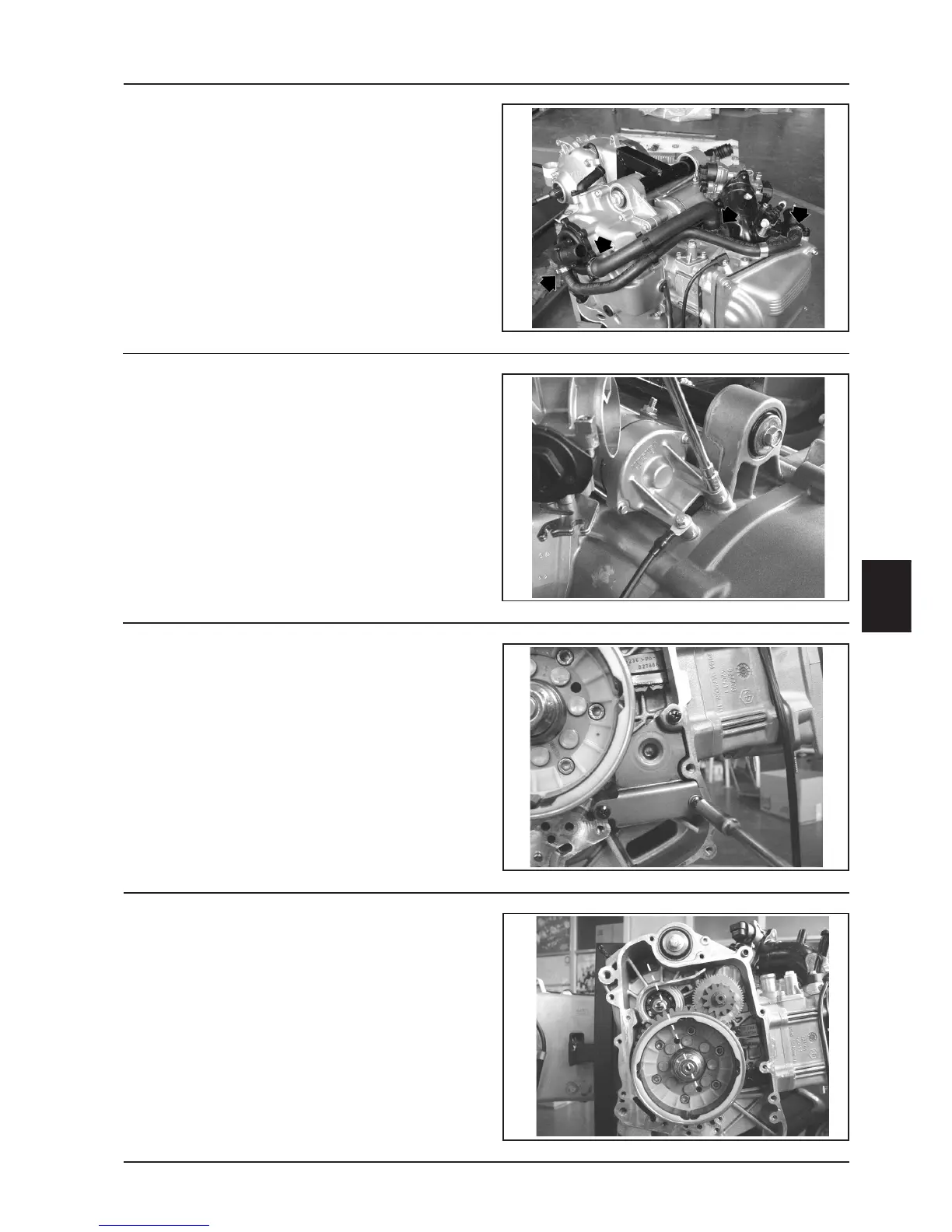

Flywheel cover disassembly
- Remove the cooling system sleeves and the flywheel
cover as described in Chapter 5-Flywheel Cover.
05_128
05_081
Starting motor disassembly
N.B.: This operation can also be performed with the
flywheel cover assembled.
- Unloose the two fixing screws and remove the engine
earth cable.
- Remove the starting motor assembly.
Magneto flywheel disassembly
N.B.: To disassemble the magneto flywheel, first re-
move the chain guide shoe stop plate
- Unloose the 3 fixing screws, remove the chain guide
shoe stop plate and the starting ring gear.
- Align the two holes on the flywheel with the housing
on the crankcase to be able to fit the specific tool.
05_129
05_130
Flywheel and starting system
