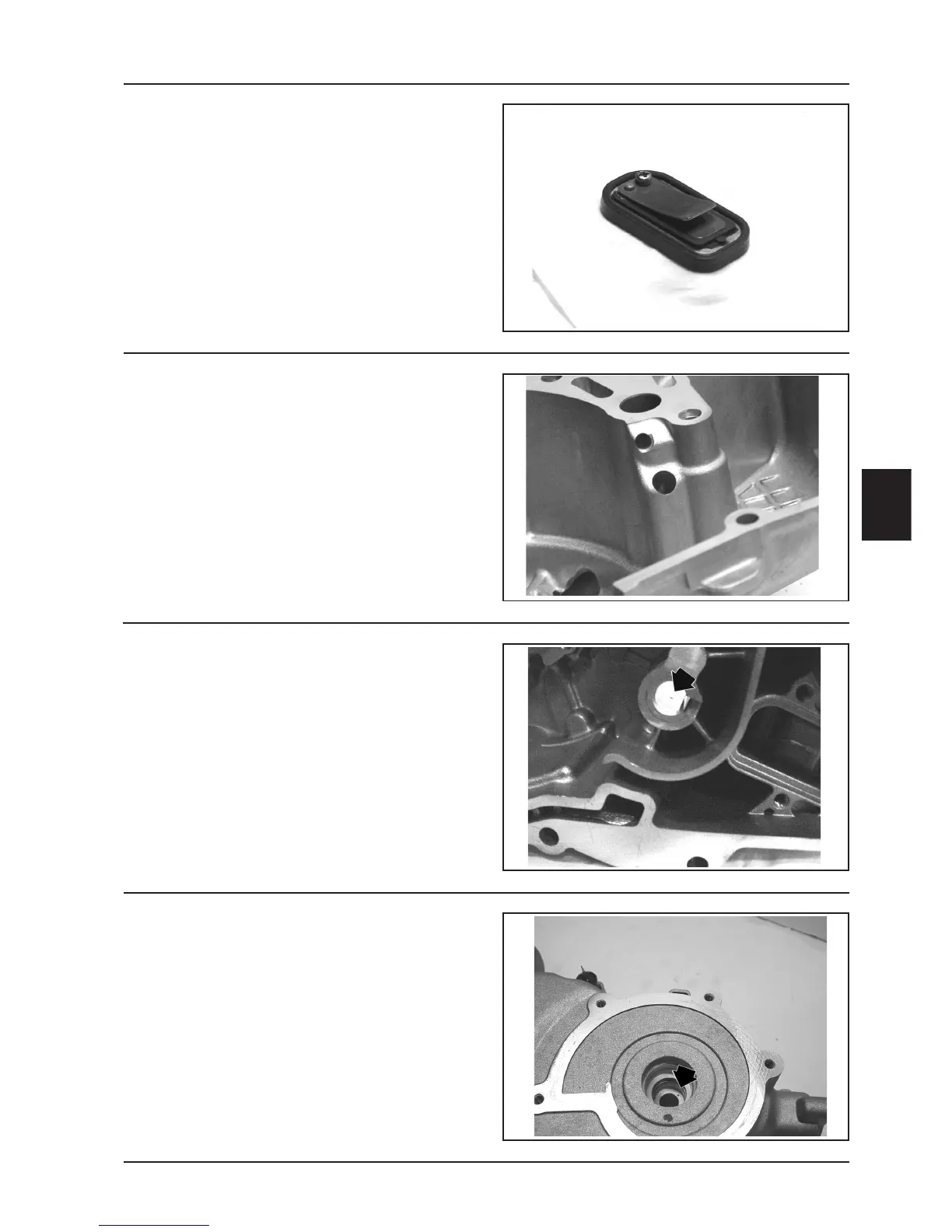

Reed valve
- Check that the blow-by circuit reed closes correctly.
Assembling the flywheel cover components
- Make sure that all the components are well clean
before reassembling them.
- Carefully check all the cover case lubrication ducts, in
particular:
- The 3 bypass channels.
05_113
05_114
- Oil supply duct to water pump shaft support.
05_116
05_115
- Pump draining duct.
